Psychic Nla .... Use 56-987.R Connecting Rod Kit 86-05 XR250, Honda 13000-KCE-670 13201-KT1-000, 13201-KT1-000

Psychic Nla .... Use 56-987.R Connecting Rod Kit 86-05 XR250, Honda 13000-KCE-670 13201-KT1-000, 13201-KT1-000. Find the product specifications and compatibility information below.

Product details

• Product: Nla .... Use 56-987.R Connecting Rod Kit 86-05 XR250, Honda 13000-KCE-670 13201-KT1-000, 13201-KT1-000
• Part number: 56-987.DR
• Brand: Psychic
• XR250 1986-2005,
• XR250 / XLR250R,
• CONNECTING CONROD ROD REBUILD KIT.
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• ORO Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

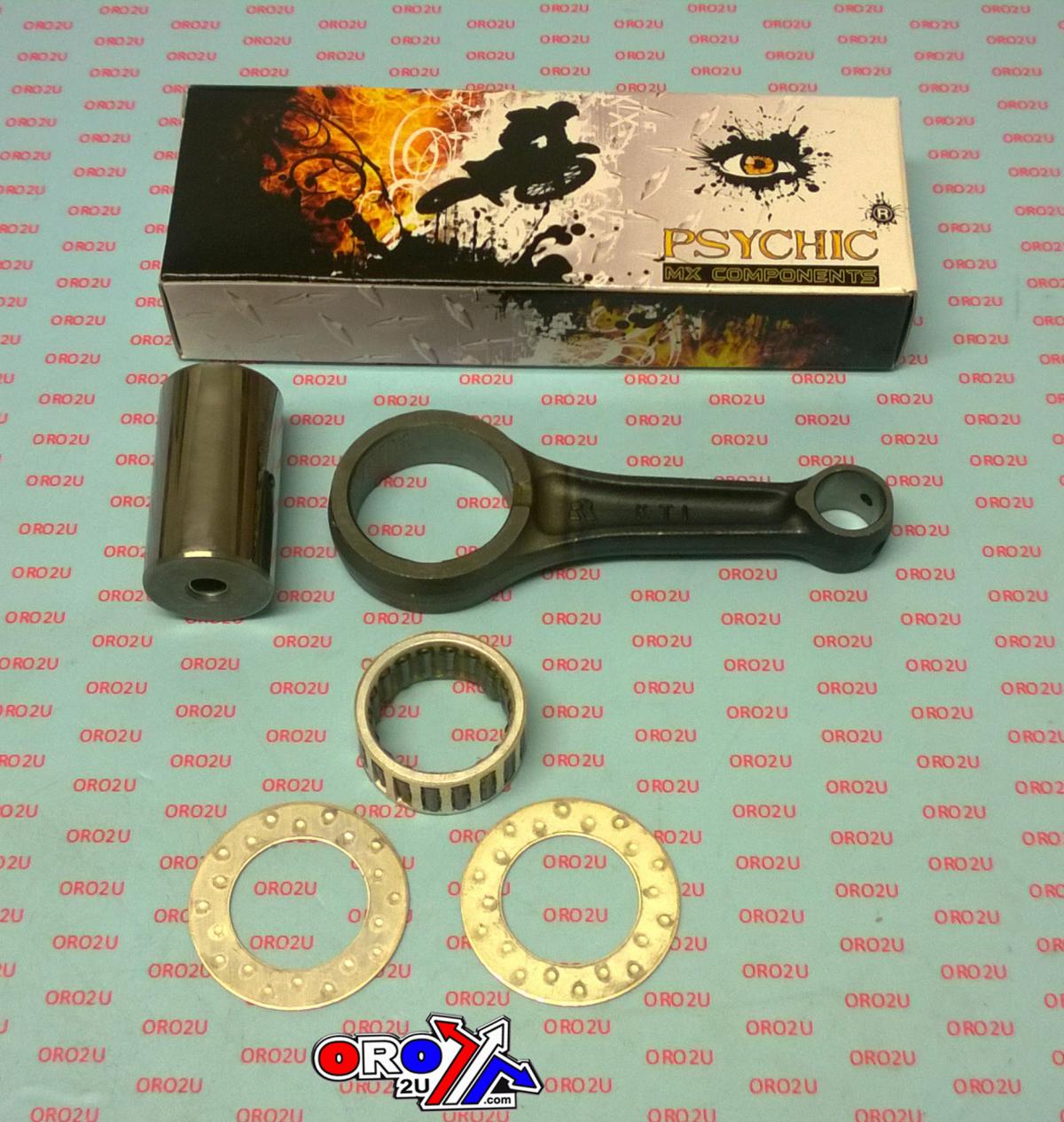

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,

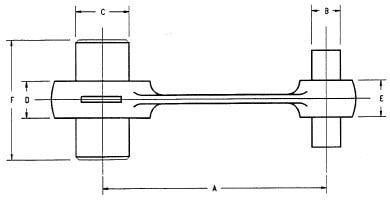

• SIZE
• MM
• Centre 2 Centre
• 105
• Small End Bearing
• 17x20x16.8
• Small End Bore Ø
• 20
• Small End Width
• 18
• Big End Bearing
• 32x41x17.8
• Big End Bore Ø
• 41
• Big End Width
• Big End Pin Ø
• 32
• Big End Pin Length
• 58
• Washer Thickness
• 1.00
• Part No. 56-987.DR (www.fdyperformance.com)
• 13201-KT1-000, RH-1026, 13000-KCE-670 PSYCYIC MX-09006

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR 250cc — 1986–2005

Match your exact make, model, year and specification before ordering.
