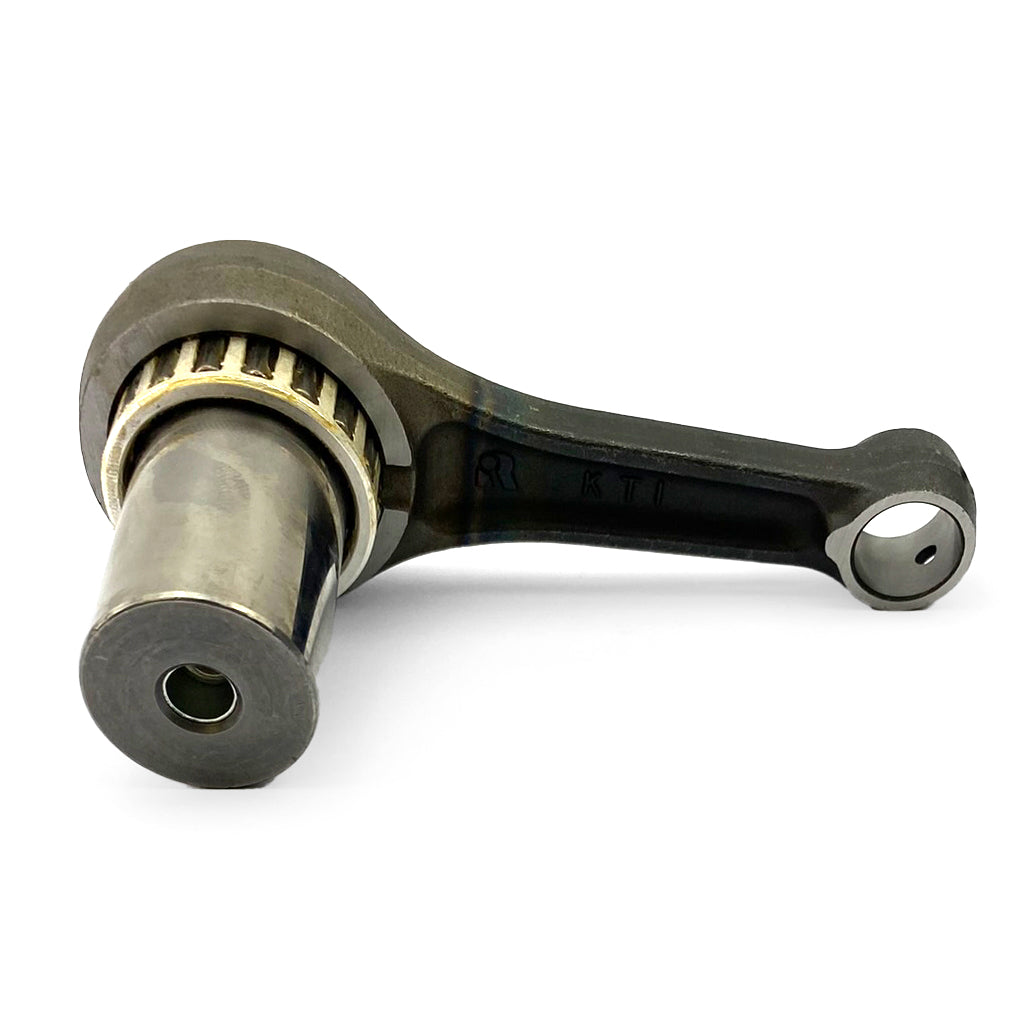

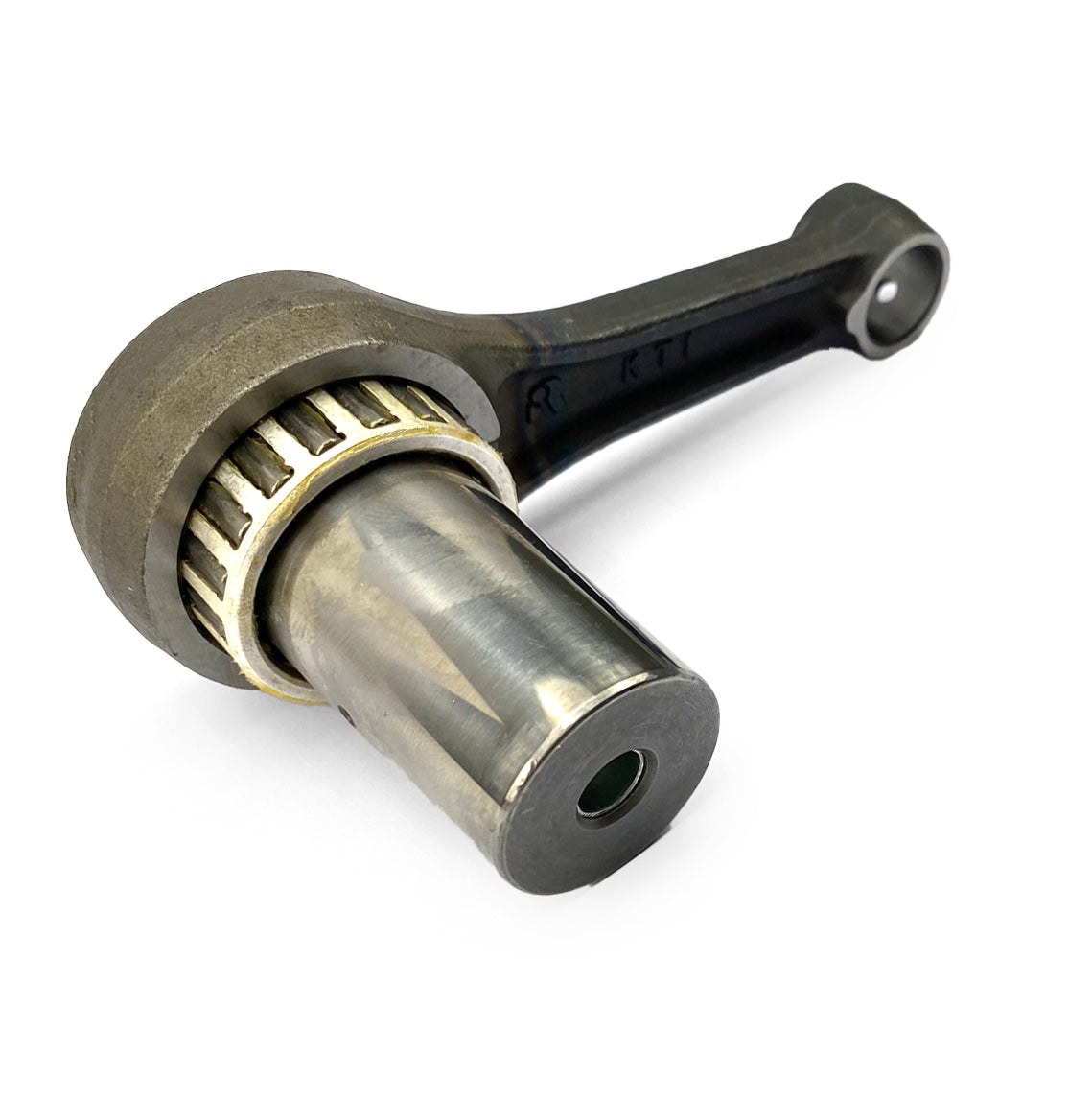

Factory Image Racing Connecting Rod Kit 86-04 XR250, Royal RH-1026 Honda 13201-KT1-000 13000-KCE-670, Note. No Washers

Factory Image Racing Connecting Rod Kit 86-04 XR250, Royal RH-1026 Honda 13201-KT1-000 13000-KCE-670, Note. No Washers. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 86-04 XR250, Royal RH-1026 Honda 13201-KT1-000 13000-KCE-670, Note. No Washers
• Part number: 56-987.R
• Brand: Factory Image Racing
• XR250, XLR250R
• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 105, B = 17, C = 32, D = 18, E = 18, F = 58
• PIN: DIA 32 X L 58
• BIG END BEARING:32x41x17.8
• DOES NOT COME WITH WASHERS
• SIZE
• MM
• Centre 2 Centre
• 105
• Small End Bearing
• 17x20x16.8
• Small End Bore Ø
• 20
• Small End Width
• 18
• Big End Bearing
• 32x41x17.8
• Big End Bore Ø
• 41
• Big End Width
• Big End Pin Ø
• 32
• Big End Pin Length
• 58
• Washer Thickness
• NONE
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• Manufactured to exacting standards for total confidence.
• Meets or exceeds OEM quality.
• Direct oem replacement.
• Cross reference numbers.
• 13201-KT1-000 13000-KCE-670
• Part No. 56-987.R (www.fdyperformance.com)

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XR 250cc — 1986–2005

Match your exact make, model, year and specification before ordering.
