Dirt Racing Cylinder Kit 15-24 Yamaha Nmax Ocito Gpd Yzf-r R 125 52mm Standard Bore 2DS00 2DS-E1311-10

Dirt Racing Cylinder Kit 15-24 Yamaha Nmax Ocito Gpd Yzf-r R 125 52mm Standard Bore 2DS00 2DS-E1311-10. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 15-24 Yamaha Nmax Ocito Gpd Yzf-r R 125 52mm Standard Bore 2DS00 2DS-E1311-10
• Part number: 56-K005.52.CLK
• Brand: Dirt Racing

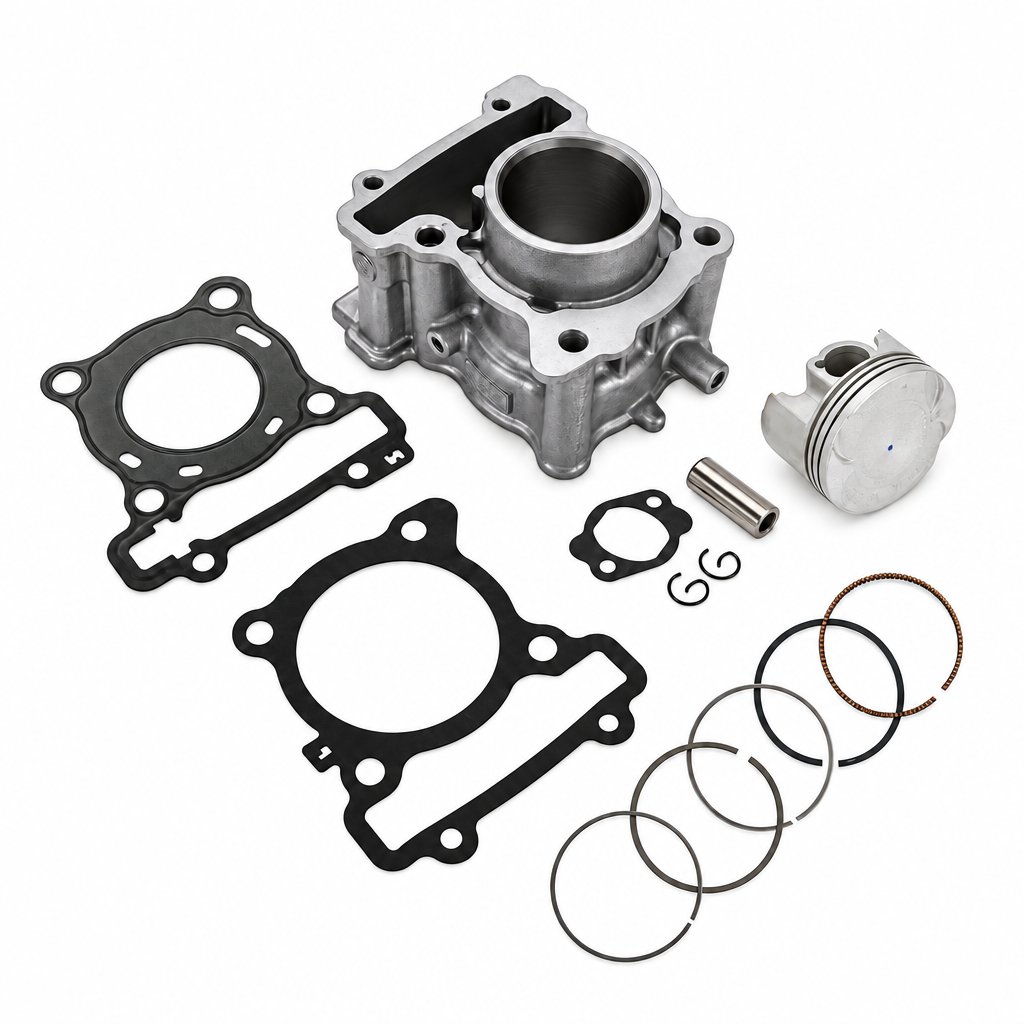

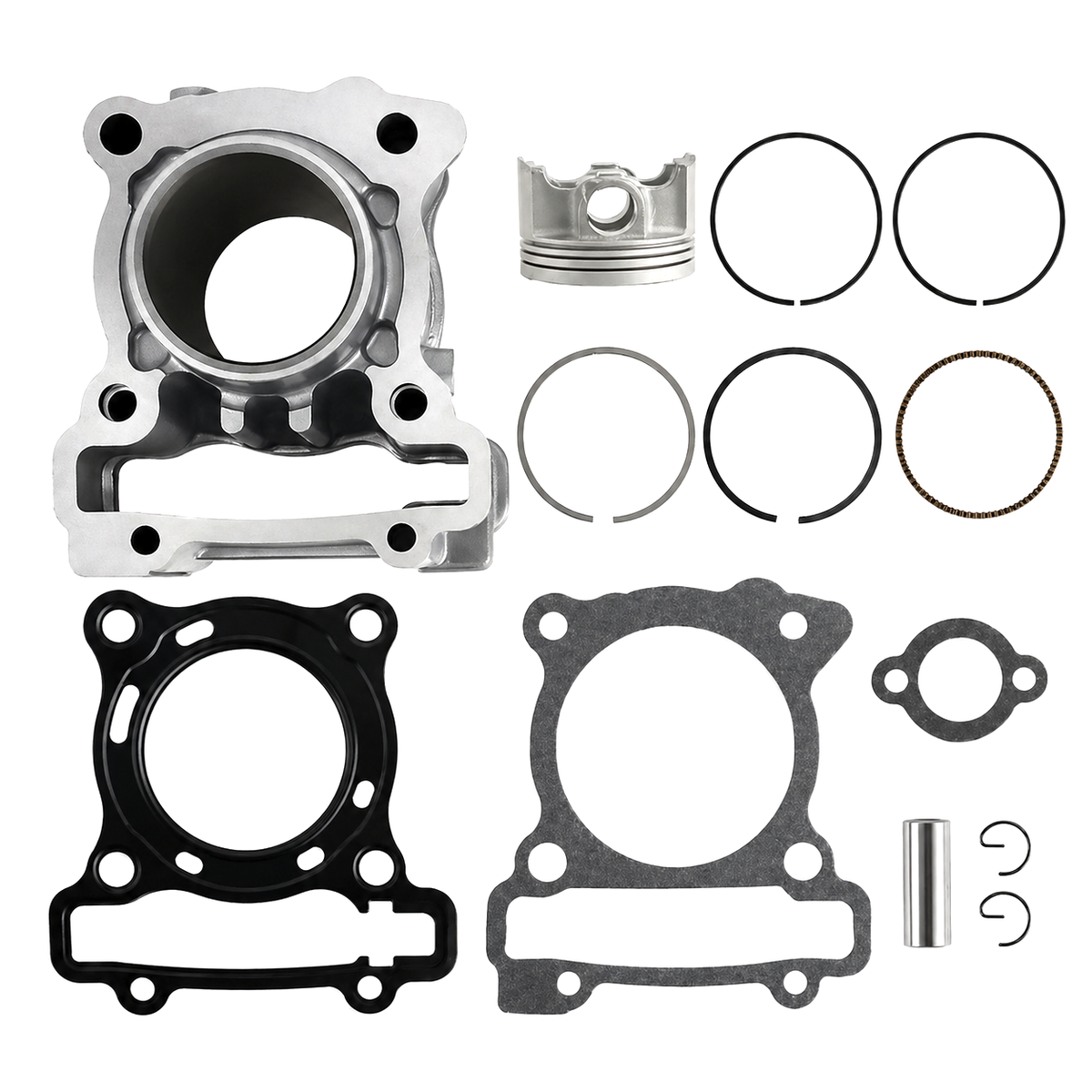

• This cylinder kit is supplied as a complete set for Yamaha 125 models and includes the cylinder, piston, piston ring kit, cylinder head gasket and cylinder base gasket as shown. Manufactured to OEM specifications, it is a direct replacement for stock mounting locations and matches the original equipment in appearance. It meets or exceeds OEM quality standards, and the image should be checked before ordering to avoid mistakes. Easy to install, but professional fitting is recommended if unsure.
• Direct OEM replacement
• Fits stock mounting locations
• Designed to handle increased power loads
• Matches original equipment in appearance
• Meets or exceeds OEM quality
• Includes cylinder, piston, piston ring kit, cylinder head gasket and cylinder base gasket
• Please check the image before ordering to avoid mistakes
• Easy to install, but professional fitting is recommended if unsure
• Quantity: 1 set
• Material: Aluminium
• Displacement: 124cc
• Bore type: standard bore
• Cylinder type: 2DS00
• Bore diameter: 52mm
• Stroke: 58.7mm
• Pin diameter: 14mm
• Cross-Reference OEM Part Numbers
• Cylinder: 2DS-E1311-10
• Cylinder base gasket: 2DP-E1351-02
• Cylinder head gasket: 2DS-E1181-00
• Piston (STD): 2DS-E1631-00
• Pin, piston: 2DP-E1633-00
• Piston ring set (STD): B64-E1603-10
• Circlips, piston: 93450-16115
• Tensioner gasket: 2DP-E2213-00
• Vehicle Fitments
• Yamaha NMAX 125 GPD125-A (2DS1) 2015
• Yamaha NMAX 125 GPD125-A (2DS5) 2015
• Yamaha OCITO 125 ABS GPD125-A (2DS3) 2017
• Yamaha OCITO 125 GPD125-A (BV32) 2017
• Yamaha NMAX 125 GPD125-A (BV33) 2017
• Yamaha NMAX 125 GPD125-A (BV31) 2017
• Yamaha NMAX 125 GPD125-A (BV37) 2018
• Yamaha NMAX 125 GPD125-A (BV39) 2018
• Yamaha OCITO 125 GPD125-A (BV38) 2018
• Yamaha NMAX 125 GPD125-A (BV3C) 2019
• Yamaha NMAX 125 GPD125-A (BV3D) 2019
• Yamaha NMAX 125 GPD125-A (BV3H) 2020
• Yamaha NMAX 125 GPD125-A (BV3J) 2020
• Yamaha YZF-R125 YZF125-A (B5G1) 2019
• Yamaha YZF-R125 YZF125-A (B5G3) 2019
• Yamaha YZF-R125 YZF125-A (B5G4) 2020
• Yamaha YZF-R125 YZF125-A (B5G2) 2021
• Yamaha YZF-R125 YZF125-A (B5G6) 2022
• Yamaha YZF-R125 YZF125-A (BGV2) 2022
• Yamaha YZF-R125 YZF125-A (BGV3) 2022
• Yamaha YZF-R125 YZF125-A World GP 60th Anniversary (B5G5) 2022
• Yamaha YZF-R125 YZF125-A (BNU1) 2023
• Yamaha R125 YZF125-A (BNU2) 2024
• Yamaha R125 YZF125-A (BNU3) 2024

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
