Cylinder Full Kit +4.00mm Big Bore 82.00mm Honda 2004 - 2015 CRF R X 250 Athena P400210100009

Cylinder Full Kit +4.00mm Big Bore 82.00mm Honda 2004 - 2015 CRF R X 250 Athena P400210100009. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Full Kit +4.00mm Big Bore 82.00mm Honda 2004 - 2015 CRF R X 250 Athena P400210100009
• Part number: 56-K100.82.K_A
• Brand: Athena

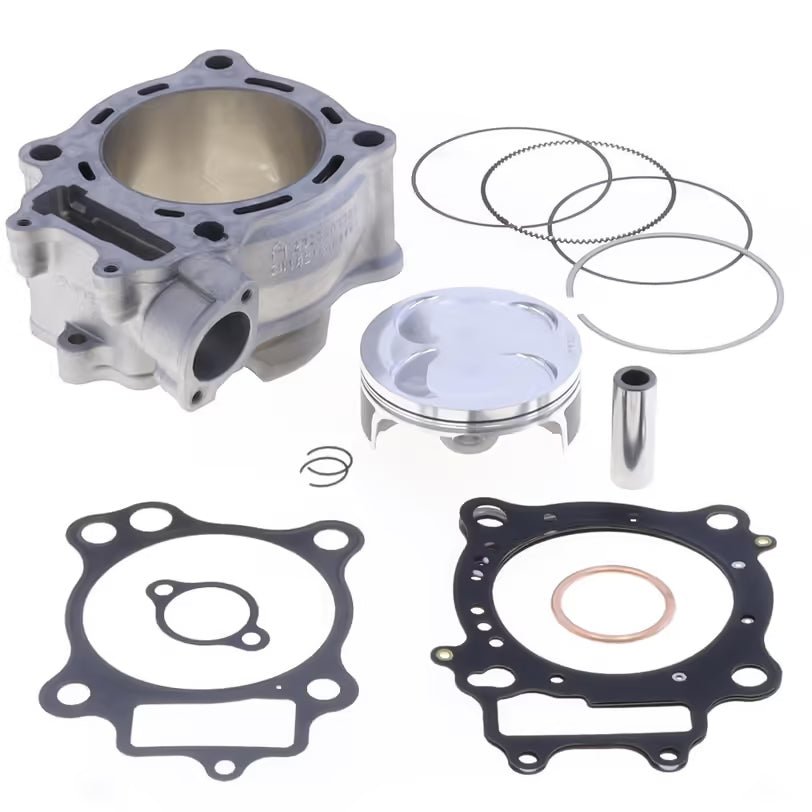

• The Athena Big Bore Cylinder Kit increases the bore diameter to 82mm, providing a displacement of 280cc. Designed and engineered in Italy, the kit features a high-quality aluminum cylinder with a nickel-silicon coating for enhanced smoothness and wear resistance. It includes a complete piston kit, piston pin, rings, and all necessary gaskets. The kit is designed to withstand high temperatures and pressures while maintaining the reliability of the original components. No modifications to the engine crankcase are required for installation.
• 82mm bore diameter, increasing displacement to 280cc
• Nickel-silicon coated aluminum cylinder for durability and smooth operation
• Includes a complete piston kit with piston pin and rings
• Comes with all necessary gaskets for installation
• Designed for high-temperature and high-pressure resistance
• No engine crankcase modifications required
• Bore Diameter: 82.00mm
• Compression Ratio: 13.1:1
• Displacement: 280cc
• Net Weight: 1.90 kg
• Cross-Reference OEM Part Numbers
• S4F08200003A – Piston Kit 81.95mm
• S4F08200003B – Piston Kit 81.96mm
• P400210160007 – Gaskets Kit
• S41316089 – Rings
• S41317040 – Piston Pin

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 250cc — 2004
• HONDA CRF R 250cc — 2008
• HONDA CRF R 250cc — 2009
• HONDA CRF R 250cc — 2004–2009
• HONDA CRF X 250cc — 2004–2015
• HONDA CRF X 250cc — 2004–2013
• HONDA CRF R 250cc — 2007
• HONDA CRF R 250cc — 2006
• HONDA CRF R 250cc — 2005
• HONDA CRF X 250cc — 2015
• HONDA CRF X 250cc — 2014
• HONDA CRF X 250cc — 2006
• HONDA CRF X 250cc — 2012–2013
• HONDA CRF X 250cc — 2010–2011
• HONDA CRF X 250cc — 2004–2005
• HONDA CRF X 250cc — 2007–2009
• HONDA CRE F X 250cc — 2010
• HONDA CRE F X 250cc — 2009
• HONDA CRE F X 250cc — 2007–2008
• HONDA CRE F R 250cc — 2008–2009
• HONDA CRE F R 250cc — 2005–2007
• HONDA CRE F X 250cc — 2004
• HONDA CRE F X 250cc — 2005–2006
• HONDA CRE F X 250cc — 2004–2010
• HONDA CRE F R 250cc — 2004–2009
• HONDA CRE F R 250cc — 2004

Match your exact make, model, year and specification before ordering.
