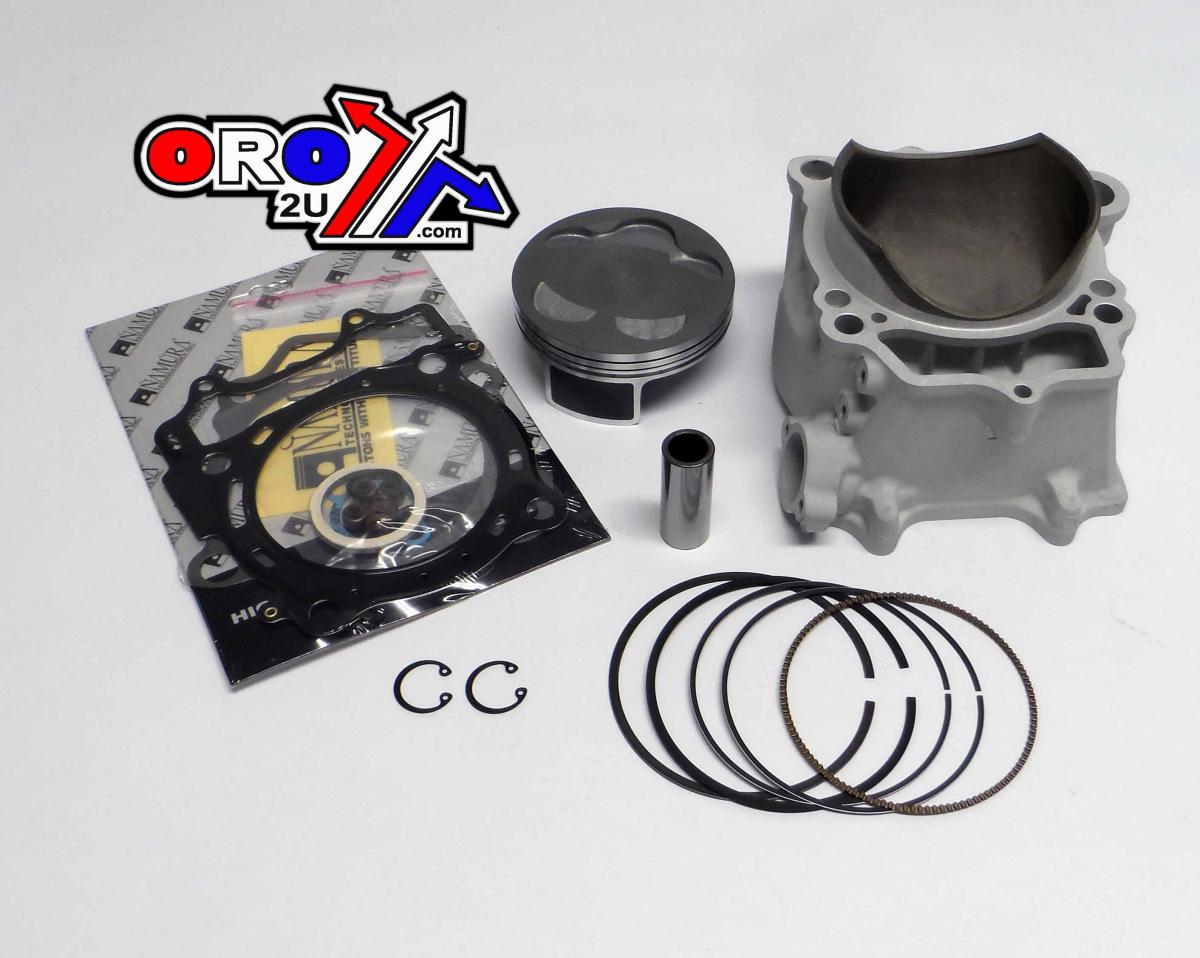

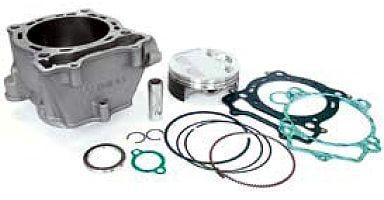

Dirt Racing Cylinder Kit 95.00mm Yamaha YFZ450R 09-20 AT-09472K 2S2-11311-10-00

Dirt Racing Cylinder Kit 95.00mm Yamaha YFZ450R 09-20 AT-09472K 2S2-11311-10-00. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 95.00mm Yamaha YFZ450R 09-20 AT-09472K 2S2-11311-10-00
• Part number: 56-K136.95.KIT
• Brand: Dirt Racing
• YFZ450R 2009 - 2020
• YFZ450X 2010 - 2011
• CYLINDER REBUILD KIT STD BORE 95.00mm
• Brand New and Designed Strictly Off the OEM Specifications.
• Cast from AB4C Aluminum with Nikasil Plated Sleeves.
• Most Cylinders are Simple Drop-in Install with No Case Modifications Necessary.
• Cylinder Details:
• Sleeve: Nikasil
• Hardness: HV500~600
• Thickness: 0.08 +/- 0.02mm
• Cylinder Material: JIS AC4B-T6 Aluminum, Hardness HR65up
• Part No.: 56-K136.95.KIT (Available at www.fdyperformance.com)
• Cross-reference numbers ONLY:
• Piston: NA-40009H
• Gasket, Cylinder Head: 2S2-11181-00-00
• Gasket, Cylinder BASE: 2S2-11351-00-00
• Cylinder: 2S2-11311-10-00 / 2S2-11311-11-00
• Piston (Std): 5TG-11631-11-00 / 5TG-11631-12-00
• Piston Ring Set (Std): 5TG-11603-00-00
• Pin, Piston: 5TG-11633-10-00
• Circlip: 93450-22027-00
• PSYCHIC AT-09472K

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ X 450cc — 2009–2015
• YAMAHA YFZ R 450cc — 2009–2015

Match your exact make, model, year and specification before ordering.
