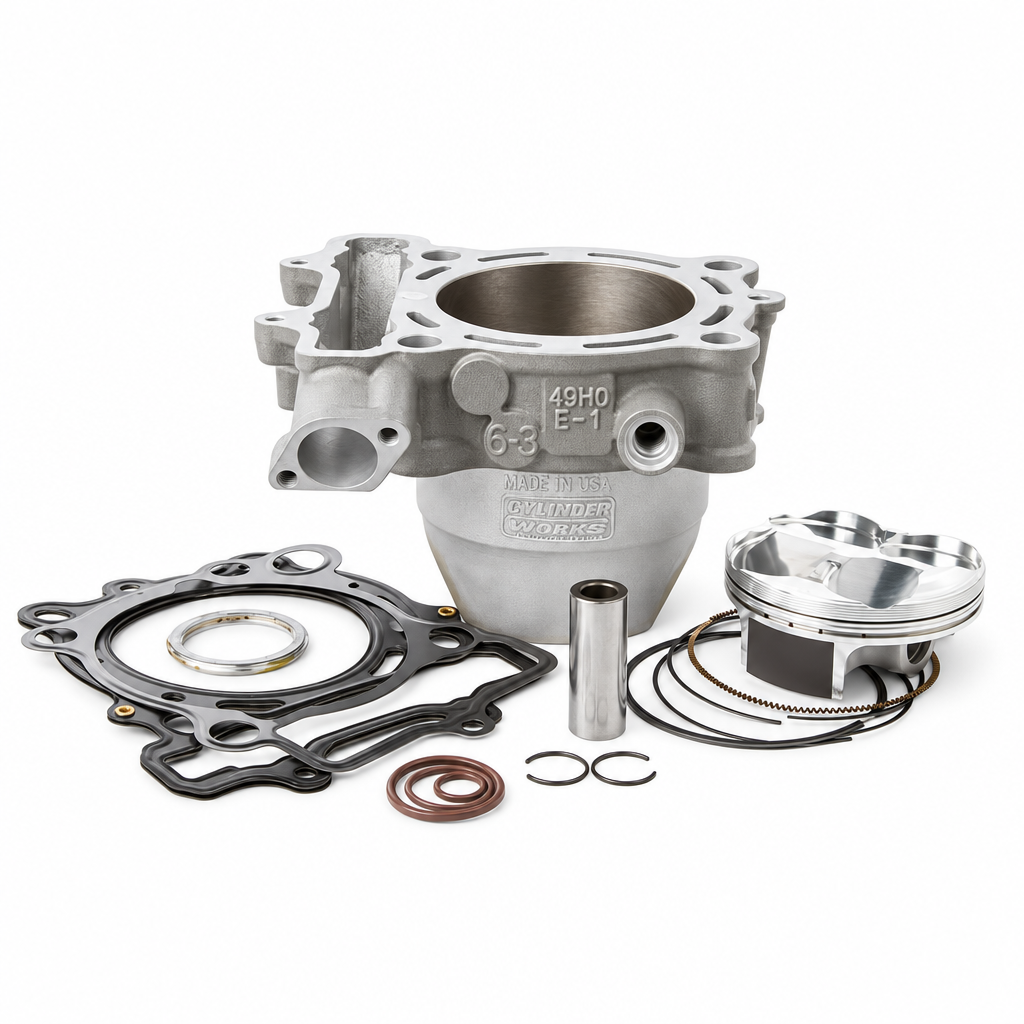

Cylinder Works Cylinder Kit 13-15 RM-Z250 77, Works 40004-K02 Std, With Vertex Piston Kit

Cylinder Works Cylinder Kit 13-15 RM-Z250 77, Works 40004-K02 Std, With Vertex Piston Kit. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 13-15 RM-Z250 77, Works 40004-K02 Std, With Vertex Piston Kit
• Part number: 56-K148.77.CKW
• Brand: Cylinder Works
• Direct bolt-on replacement with no re-plating required
• Nickel Silicon Carbide plated for extended lifespan
• Three options available: Standard Bore, Standard Bore High Compression, and Big Bore
• Includes cylinder, piston, rings, pin, clips, and top-end gasket set
• Big bore cylinders do not require additional machine work (unless specified)
• Replacement Vertex piston, rings, clips, and pins available separately
• Manufactured in the U.S.A.
• Included Items
• Aluminum cylinder
• Vertex piston
• Piston pin
• Two circlips
• Top ring
• Two oil rings
• Oil ring spacer
• Top-end gasket set, including:
• Base gasket
• Head gasket
• Four valve stem seals
• Exhaust gasket
• Overflow seal
• Three O-rings
• Standard bore size
• Cross-Reference OEM Part Numbers
• Not specified

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM Z 250cc — 2010–2012
• SUZUKI RM Z 250cc — 2010–2017
• SUZUKI RM Z 250cc — 2016–2018
• SUZUKI RM Z 250cc — 2013–2015

Match your exact make, model, year and specification before ordering.
