Cylinder Full Kit And Exhaust 65mm Bb 2010-2015 KTM Duke 125 Athena P400270100018

Cylinder Full Kit And Exhaust 65mm Bb 2010-2015 KTM Duke 125 Athena P400270100018. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Full Kit And Exhaust 65mm Bb 2010-2015 KTM Duke 125 Athena P400270100018
• Part number: 56-K168.65KIT.B
• Brand: Athena

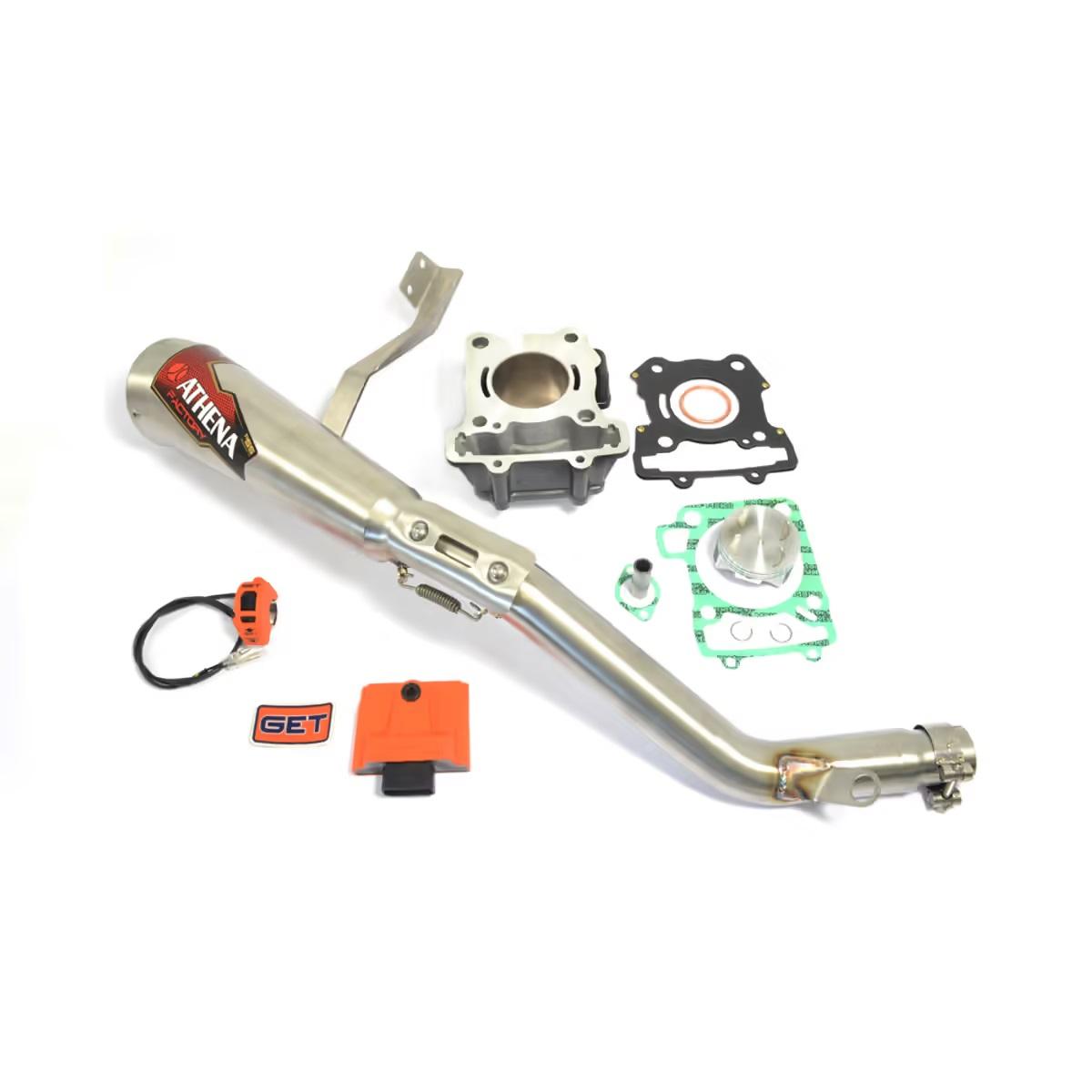

• Comprehensive big-bore conversion kit for KTM Duke 125 (2010–2015), increasing capacity to 160 cc with a 65.00 mm plated aluminium cylinder. Developed by Athena, the kit includes a matched piston assembly, ECU (CDI), full exhaust pipe and all necessary gaskets, enabling installation without crankcase modifications.
• Complete big-bore kit to 160 cc with Ø 65.00 mm cylinder
• Cylinder constructed from high-quality aluminium with nickel–silicon (Motor-Nicksil) coating for smoothness and wear resistance
• Includes ECU (CDI) calibrated for the kit
• Includes complete piston assembly (piston, pin and rings)
• Includes exhaust pipe designed to suit the kit
• Includes all necessary gaskets for installation
• Components validated by bench and road testing for durability and reliability
• Designed to be installed without modifying the engine crankcase
• Must be used in compliance with national regulations
• Bore diameter: 65.00 mm
• Displacement: 160 cc
• Net weight: 1.80 kg
• Cylinder material/coating: Aluminium with nickel–silicon plating
• Included components: Cylinder, piston, piston pin, rings, ECU (CDI), exhaust pipe, gasket set
• Part number (kit): P400270100018
• Additional part number: 56-K168.65.KIT
• Cross-Reference OEM Part Numbers
• S4F06500003A (Forged piston Ø 64.950 mm)
• S4F06500003B (Forged piston Ø 64.960 mm)
• Vehicle Fitments
• KTM Duke 125: 2010–2015

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
