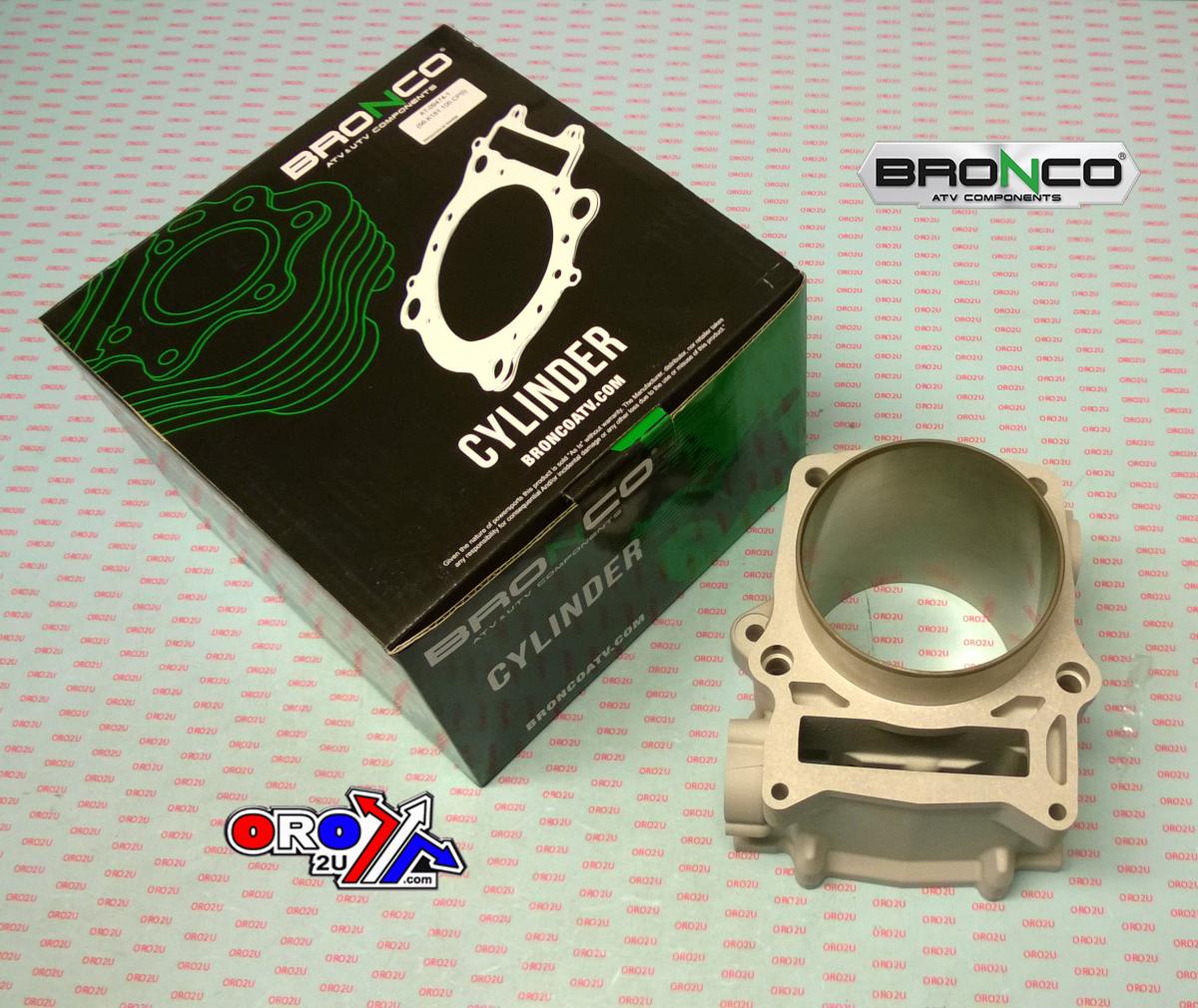

Cylinder Only 2006-2015 Yamaha YFM700 Grizzly Psychic AT-09474-1 CA-40002-BB3

Cylinder Only 2006-2015 Yamaha YFM700 Grizzly Psychic AT-09474-1 CA-40002-BB3. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Only 2006-2015 Yamaha YFM700 Grizzly Psychic AT-09474-1 CA-40002-BB3
• Part number: 56-K181.105.CPS
• Brand: Psychic
• Big-bore cylinder in 105 mm size engineered as a direct-replacement component, increasing displacement to approximately 727 cc when used with the stock stroke. Supplied as a bare cylinder for service builds where existing pistons and gaskets are sourced separately.
• Big-bore 105 mm size (+3.00 mm over standard)
• Increases displacement to approximately 727 cc with stock stroke
• Designed for the specific engine platforms listed
• Supplied as cylinder only (piston, rings and gaskets not included)
• Bore: 105 mm
• Oversize: +3.00 mm over standard 102 mm
• Approximate displacement with 84 mm stroke: 727 cc
• Brand/reference: Psychic
• Product type: Cylinder only
• Approximate weight: 2.78 kg
• Application: 700 cc single-cylinder ATV/UTV engine
• Cross-Reference OEM Part Numbers
• Psychic AT-09474-1
• Psychic CA-40002-BB3

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YXR RHINO 700cc — 2008–2013
• YAMAHA YFM F GRIZZLY 700cc — 2007–2013
• YAMAHA VIKING 700cc — 2014–2017

Match your exact make, model, year and specification before ordering.
