Cylinder Kit 18-22 KTM 125 SX 54mm, Cylinder Works CW50014K02 50430038100 50530038000

Cylinder Kit 18-22 KTM 125 SX 54mm, Cylinder Works CW50014K02 50430038100 50530038000. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 18-22 KTM 125 SX 54mm, Cylinder Works CW50014K02 50430038100 50530038000
• Part number: 56-K1991.54.CWK2
• Brand: Cylinder Works
• A standard-bore 54 mm cylinder kit for 125 cc two-stroke applications, supplied complete with cylinder, piston kit, top-end gasket kit, and wrist pin bearing. Designed as a direct replacement for KTM 125 SX and 125 XC, with equivalent fitment for GasGas MC 125 and Husqvarna TC 125 within the listed years, with cross-reference to KTM 50430038100 and 50530038000 and Cylinder Works CW50014K02.
• Uses Vertex #23928

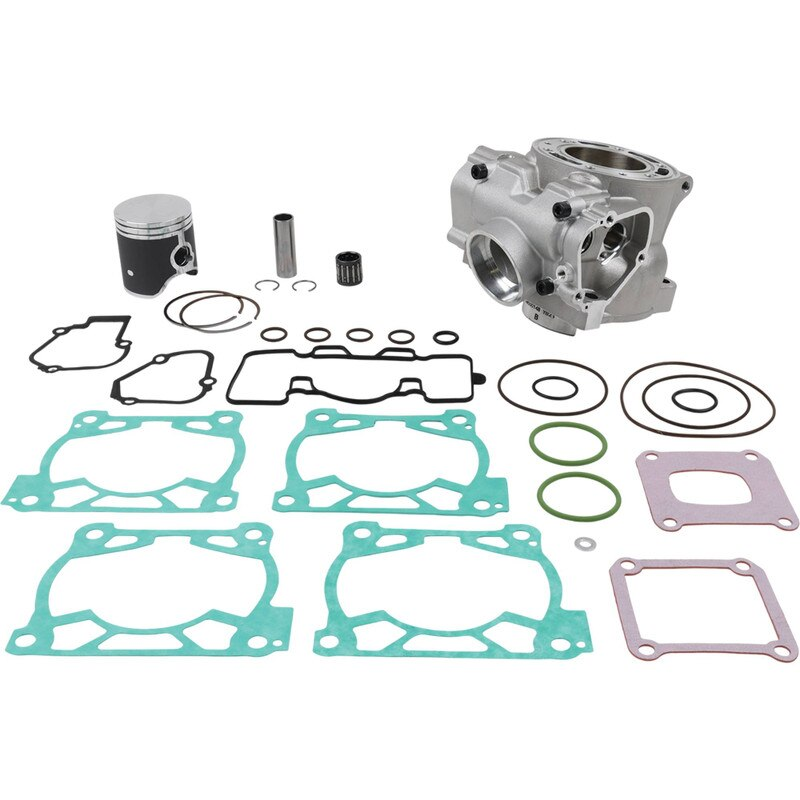

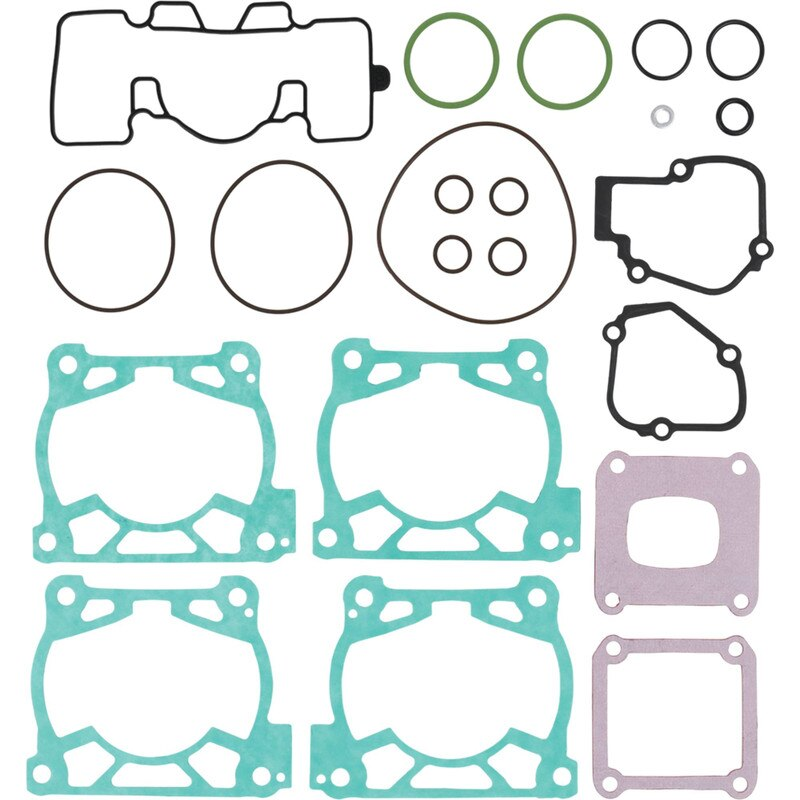

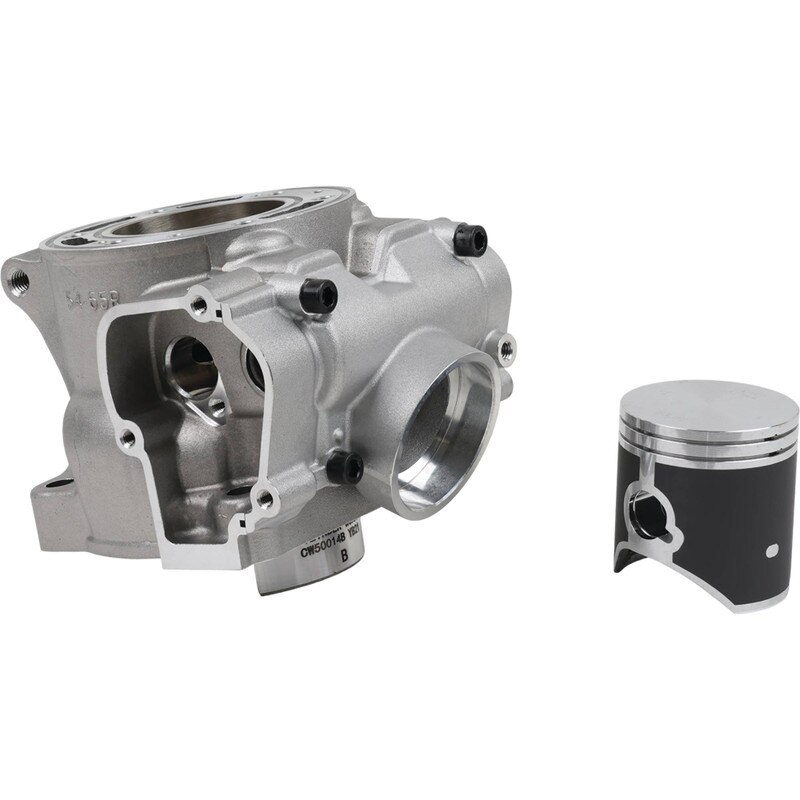

• Includes cylinder, piston kit, top-end gasket kit, and wrist pin bearing
• Standard-bore configuration
• Compression ratio: Standard
• Cylinder diameter: 54 mm
• Cylinder kit type: Standard bore
• Displacement: 125 cc
• Engine type: 2-stroke
• Cross-Reference OEM Part Numbers
• 50430038100
• 50530038000
• Cylinder Works CW50014K02
• Vehicle Fitments
• 125 SX (18–22)
• 125 XC (21–22)
• MC 125 (21–23)
• TC 125 (18–22)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
