Dirt Racing Cylinder Kit 96.00mm Std 2020-2025 Honda Trx 520 12100-HR6-B00

Dirt Racing Cylinder Kit 96.00mm Std 2020-2025 Honda Trx 520 12100-HR6-B00. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 96.00mm Std 2020-2025 Honda Trx 520 12100-HR6-B00
• Part number: 56-K241.96.CK
• Brand: Dirt Racing
• A complete cylinder, piston and gasket top-end rebuild kit with a standard 96.00 mm bore for Honda 518 cc single-cylinder engines. Designed as a direct replacement for the original components on TRX520 (Foreman and Foreman Rubicon) ATVs and Pioneer 520 UTVs, maintaining the OEM bore × stroke (96.0 mm × 71.5 mm) and 19 mm wrist-pin size.
• Standard 96.00 mm bore to maintain the 518 cc displacement with a 71.5 mm stroke
• Direct replacement dimensions for OEM components
• Manufactured to precise tolerances for dependable performance
• Aluminium construction
• 19 mm piston pin with circlips included
• Supplied with cylinder head, base and head-cover gaskets
• Visual check of the product images before ordering is recommended
• Straightforward to install; professional fitting is advised if unsure
• Part numbers supplied for identification and cross-reference only
• Material: Aluminium
• Displacement: 518 cc
• Bore type: Standard
• Bore diameter: 96.00 mm
• Stroke: 71.5 mm
• Piston pin diameter: 19 mm

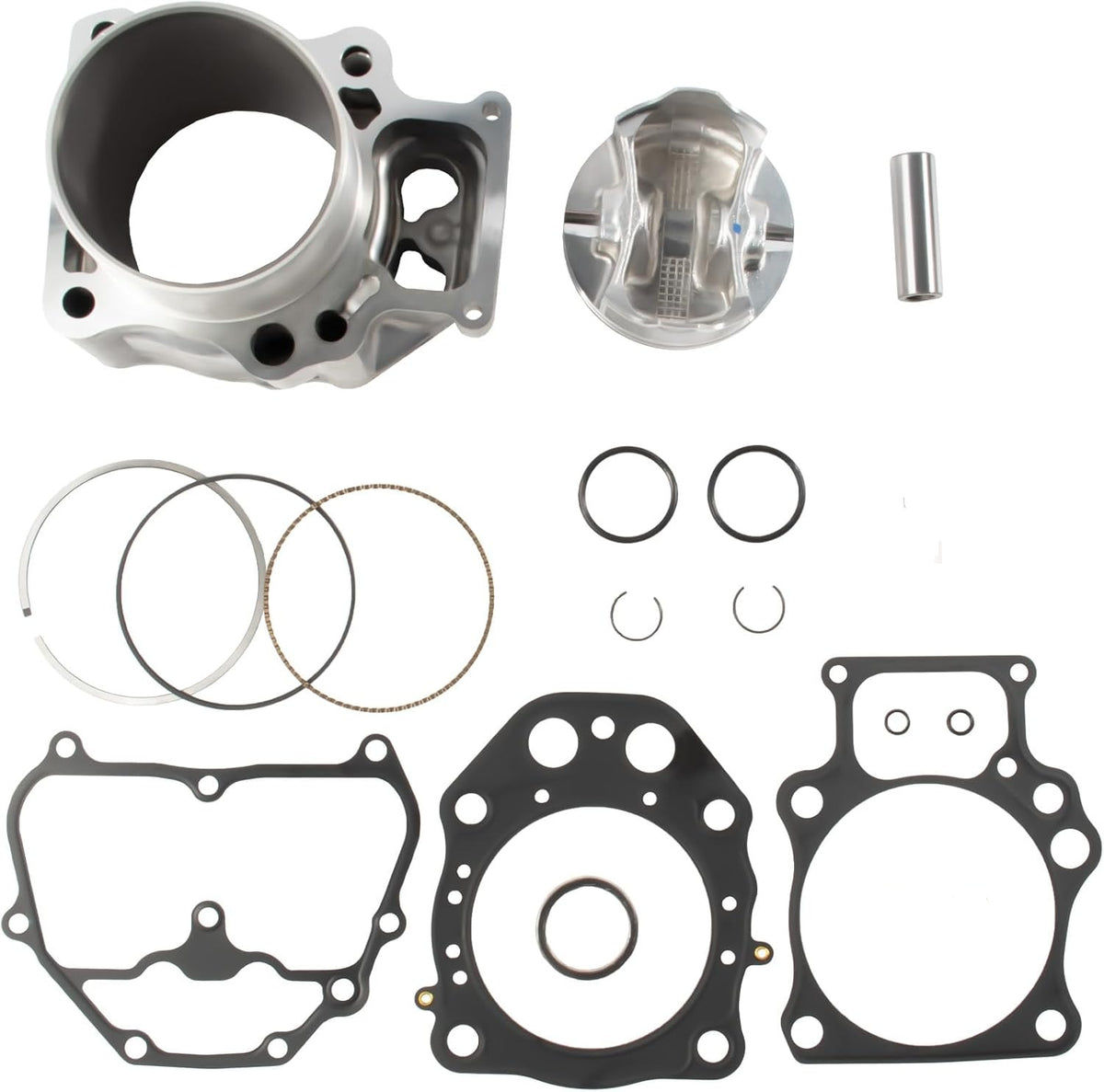

• Included in set: Cylinder; piston; piston ring set; wrist pin; 2 × piston circlips; cylinder head gasket; cylinder base gasket; cylinder head cover gasket
• Cross-Reference OEM Part Numbers
• Cylinder: 12100-HR6-B00
• Cylinder Base Gasket: 12191-HR6-B01
• Cylinder Head Gasket: 12251-HR6-B01
• Cylinder Head Cover Gasket: 12315-HR0-F01
• Piston (Std): 13101-HR6-B00
• Pin, Piston: 13111-HP5-600
• Piston Ring Set (Std): 13010-HR6-305
• Circlips, piston (2): 13112-MAT-000
• Vehicle Fitments
• Honda FourTrax Foreman 520 TRX520FE2 4x4 ES EPS: 2020–2025
• Honda FourTrax Foreman 520 TRX520FM1 4x4: 2020–2025
• Honda FourTrax Foreman 520 TRX520FM2 4x4 EPS: 2020–2025
• Honda FourTrax Foreman Rubicon 520 TRX520FA5 4x4 Auto DCT: 2021–2024
• Honda FourTrax Foreman Rubicon 520 TRX520FA6 4x4 Auto DCT EPS: 2021–2024
• Honda FourTrax Foreman Rubicon 520 TRX520FA7 4x4 Auto DCT EPS Deluxe: 2021–2024
• Honda FourTrax Foreman Rubicon 520 TRX520FM6 4x4 EPS: 2020–2024
• Honda Pioneer 520 SXS520M: 2021–2025
• Honda Pioneer 520 SXS520M2: 2021–2025

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.

Why buy from FDY Performance?

FDY Performance is a UK motorcycle and ATV parts specialist. We help riders find parts with clear specifications, vehicle fitment information where available and support before ordering.

Need help choosing the right part?

Contact us with your bike make, model and year, plus the part number shown above, and we can help you check compatibility.
