Dirt Racing Cylinder Kit 78-81 Suzuki Ts C 185 64mm Piston Gasket Top End 11210-29900

Dirt Racing Cylinder Kit 78-81 Suzuki Ts C 185 64mm Piston Gasket Top End 11210-29900. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 78-81 Suzuki Ts C 185 64mm Piston Gasket Top End 11210-29900
• Part number: 56-K242.64.CK
• Brand: Dirt Racing
• This 64 mm bore top end cylinder kit is designed for Suzuki TS185 and TS185C 185 cc two-stroke motorcycles. It is intended for cylinder and piston replacement during top end engine repair or rebuild work, using stock mounting locations and OEM-style fitment.

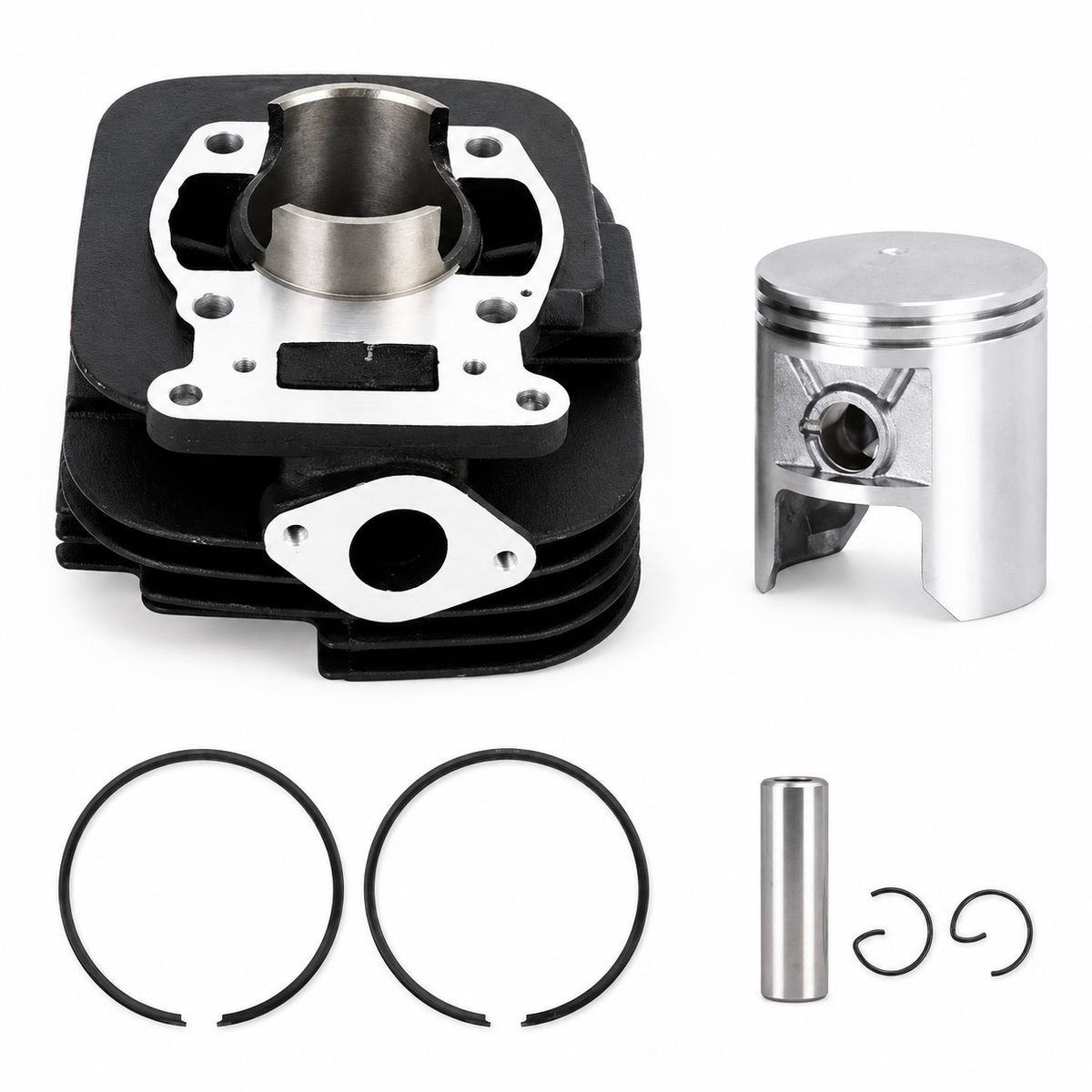

• Kit Contents
• 1 x cylinder
• 1 x piston
• 2 x piston rings
• 1 x wrist pin
• 2 x circlips
• Direct OEM replacement design
• Suitable for two-stroke top end rebuilds
• Uses stock mounting locations
• Made to OEM specifications
• Matches the original equipment appearance
• Designed to meet or exceed OEM quality
• Uses high-tech materials for reliability and performance
• Designed to handle increased power loads
• Cost-effective replacement kit
• Image should be checked before ordering to confirm the correct item
• Professional installation is recommended if unsure
• Bore size: 64 mm
• Piston material: forged aluminium
• Piston diameter: 53.6 mm
• Piston height: 65.6 mm
• Piston pin diameter: 16 mm
• Piston pin height: 45.8 mm
• Engine type: two-stroke
• Engine capacity: 185 cc
• Cross-Reference OEM Part Numbers
• 11210-29900
• 11210-29510
• Vehicle Fitments
• Suzuki TS185: 1978-1981, 185 cc
• Suzuki TS185C: 1978-1981, 185 cc

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
