Cylinder Full Kit 82mm Yamaha YZ 250F 19-24, Athena P400485100097 283CC Big Bore, (Piston included)

Cylinder Full Kit 82mm Yamaha YZ 250F 19-24, Athena P400485100097 283CC Big Bore, (Piston included). Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Full Kit 82mm Yamaha YZ 250F 19-24, Athena P400485100097 283CC Big Bore, (Piston included)
• Part number: 56-K250.82.KIT
• Brand: Athena
• ATHENA Big Bore Cylinder Kit Ø 82 mm, 283 cc - P400485100097 (Includes Piston)
• Athena has been constantly investing in cylinder aftermarket replacement parts for more than ten years, to improve their production and performance. All the cylinders are entirely engineered in Italy by Athena’s R&D Department which has a strong internal know-how and cutting-edge tools to design and test each piece. They are coated with motor-nicksil, a nickel-silicon coating developed by Athena to obtain smoothness and optimal wear resistance.
• Athena’s cylinder kits and its components are recognized worldwide for their performance, durability and reliability.
• Athena’s Big Bore Cylinder Kits guarantees an increase in performance that can be observed along the power curve, keeping the reliability at the same level of the original components.

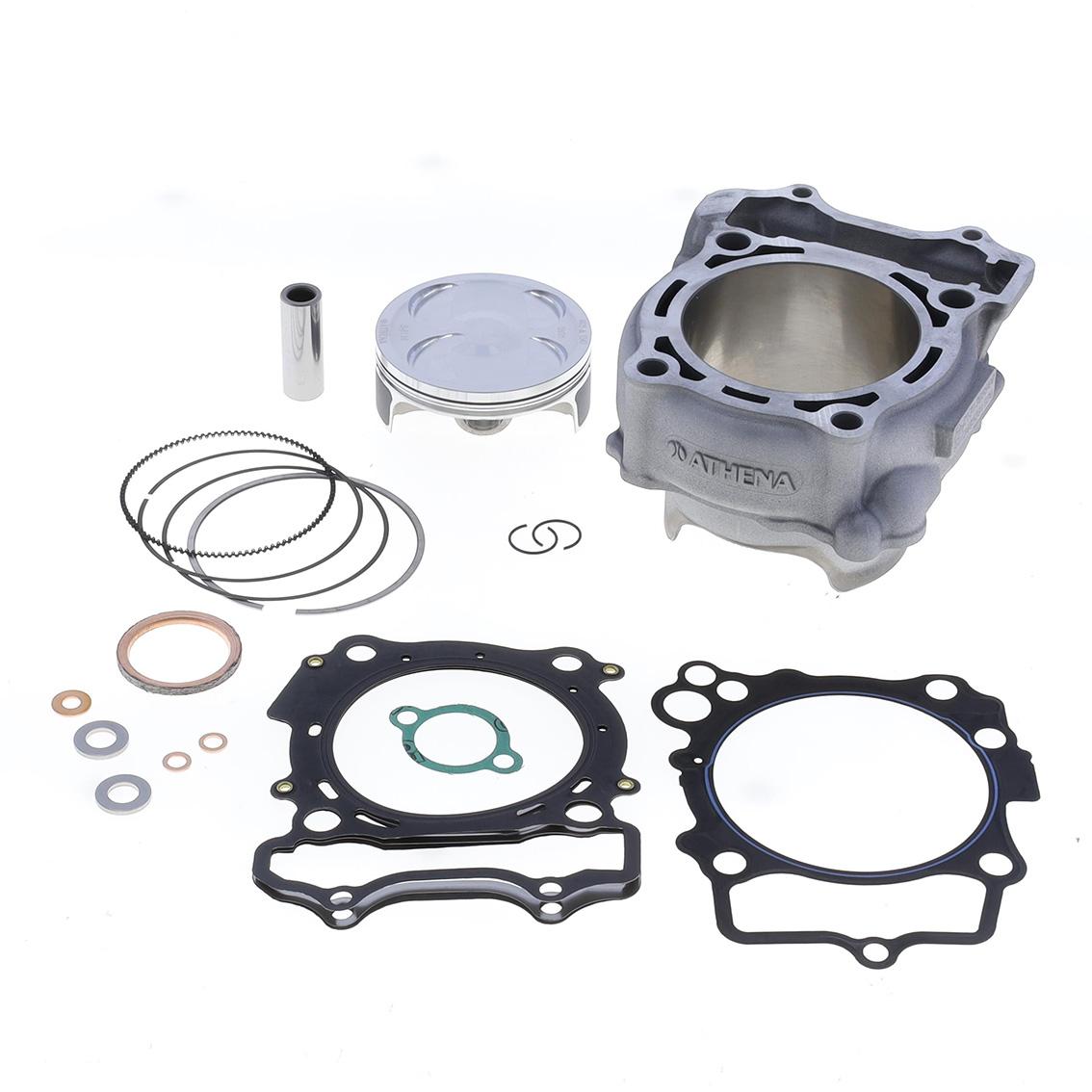

• The kit includes the high-quality aluminum cylinder with increased bore, the complete piston with the piston pin and rings, and all the necessary gaskets.
• All the components of the kit have been developed to withstand the highest temperatures, pressures and stresses and have been validated by Athena technicians with severe bench and road tests.
• This cylinder kit can be installed without making any changes to the engine crankcase.
• CAUTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.
• Technical features
• Bore Diameter (mm) 81.00
• Compression Ratio 13.6:1
• Displacement (cc) 276
• Net Weight (Kg) 1.38
• Partner Cross Reference code and Optional Parts
• S5F08200003A Forged Piston 81,95
• S5F08200003B Forged Piston 81,96
• P400485160091 Gaskets Kit For Athena Cylinder Kit
• S41316089 Rings
• Vehicle compatibility
• YAMAHA WR F 250 cc 2020/2024
• YAMAHA YZ F 250 cc 2019/2024
• YAMAHA YZ FX 250 cc 2020/2024

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
