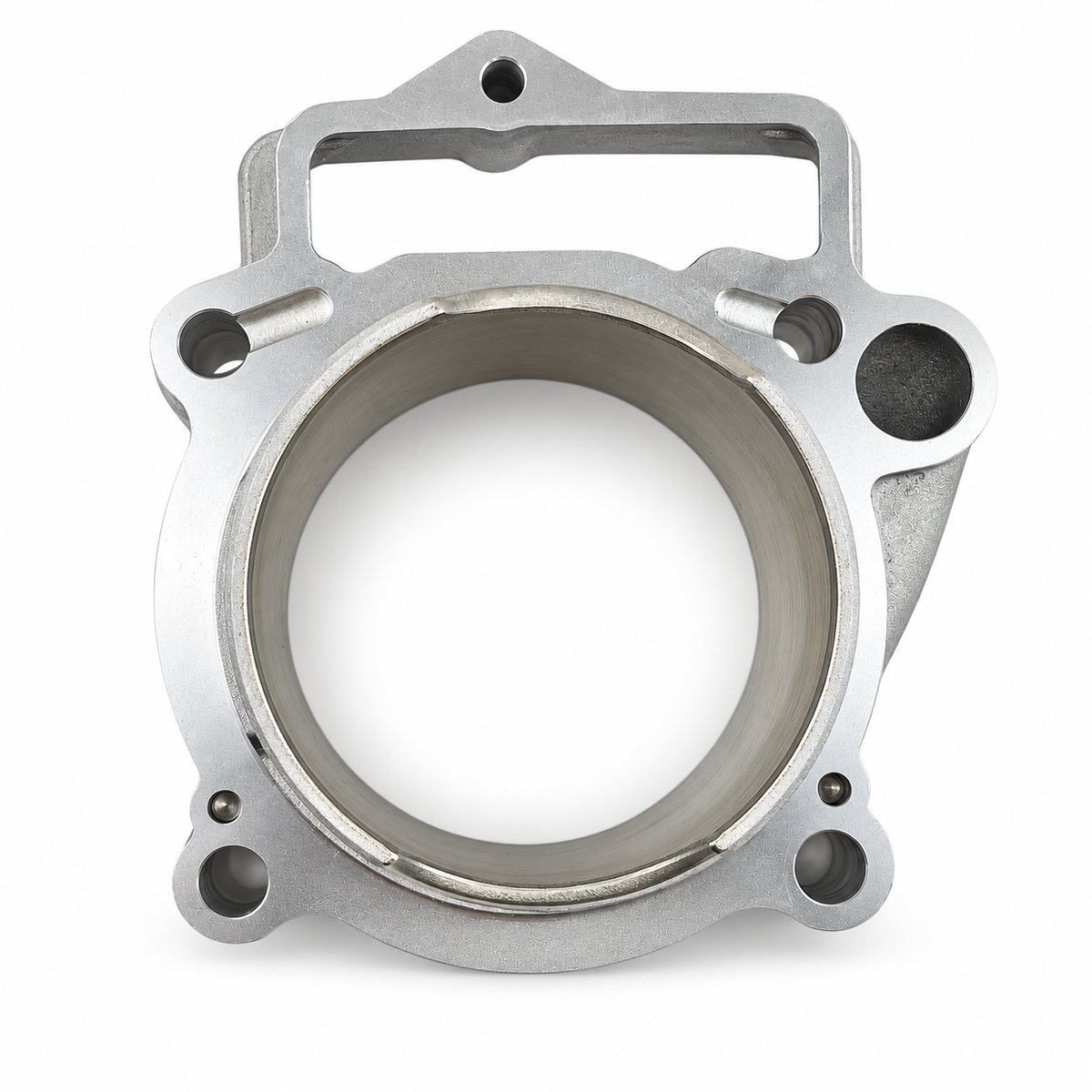

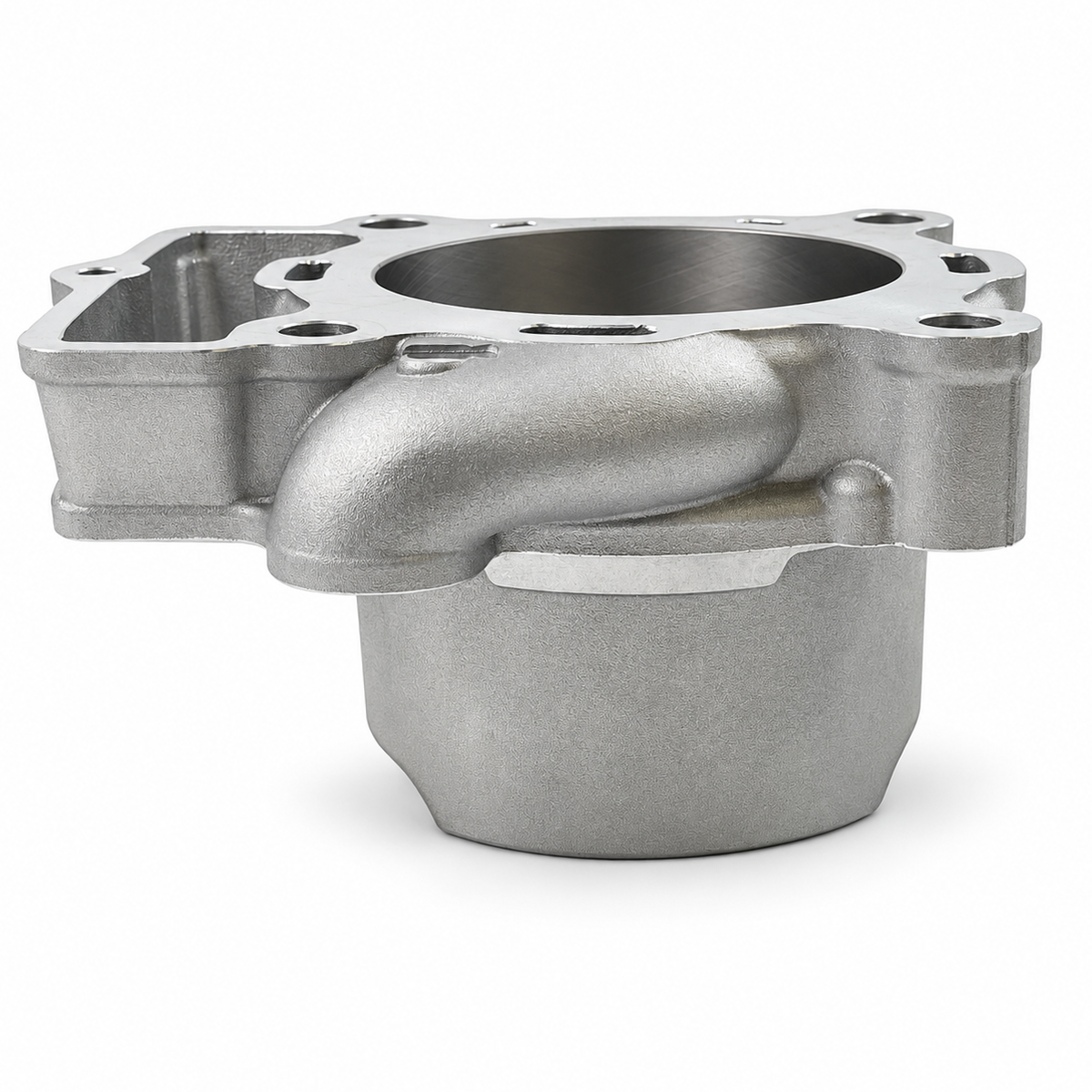

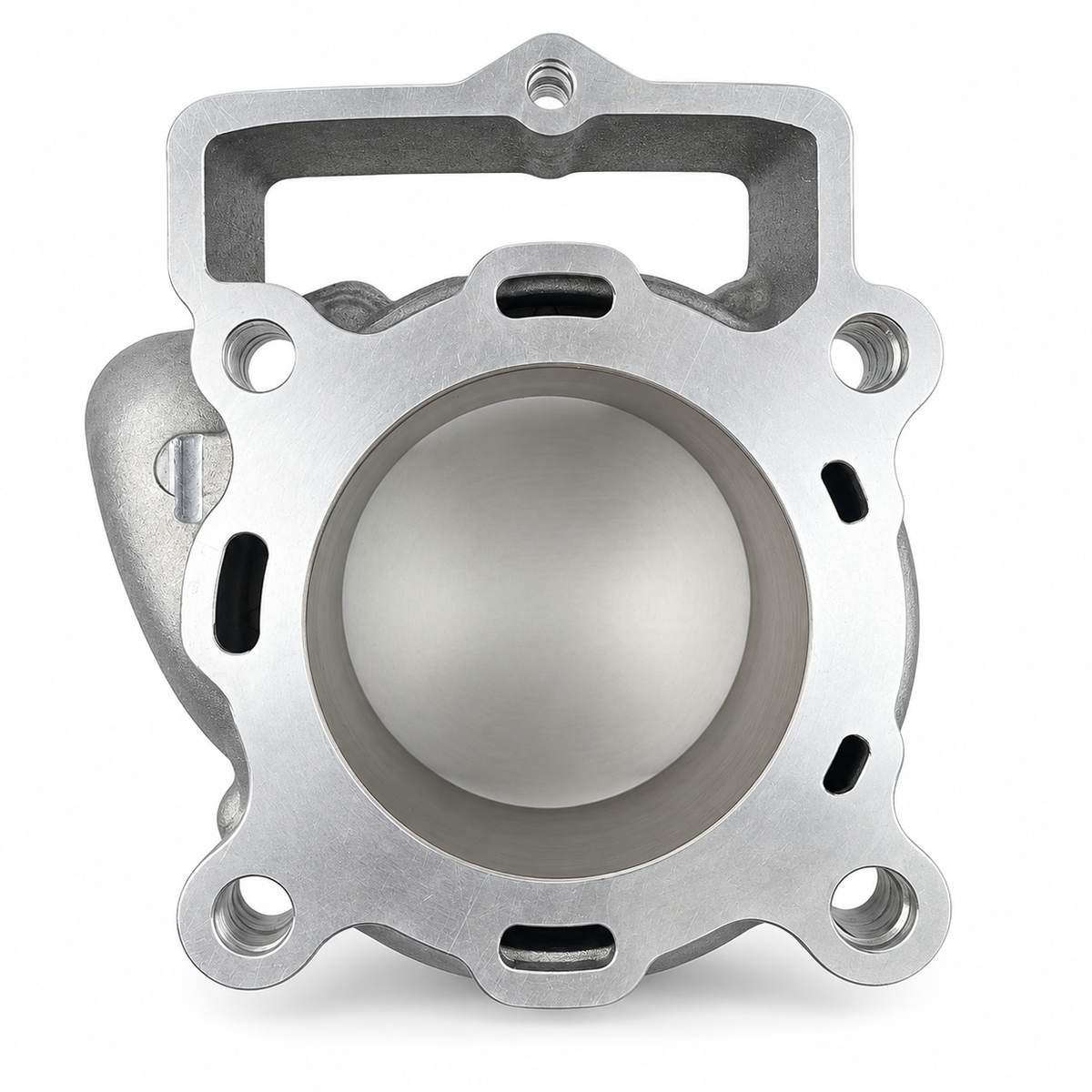

Cylinder Kit 81mm KTM 250 Sx-f Exc-f 23-26 Cylinder Works CW50015K01 Std Bore

Cylinder Kit 81mm KTM 250 Sx-f Exc-f 23-26 Cylinder Works CW50015K01 Std Bore. Find the product specifications and compatibility information below.

Product details

• Product: Cylinder Kit 81mm KTM 250 Sx-f Exc-f 23-26 Cylinder Works CW50015K01 Std Bore
• Part number: 56-K2520.81.CKW
• Brand: Cylinder Works
• The Cylinder Works standard bore cylinder kit is engineered for KTM, Husqvarna, and GasGas 250 cc 4-stroke models, providing a complete top-end rebuild solution that maintains original engine performance and displacement. Supplied with a matched piston kit and top-end gasket set, this kit ensures compatibility with OEM configurations and is suitable for routine rebuilds and high-performance applications.
• Complete cylinder, piston, and gasket kit for 250 cc 4-stroke engines
• Maintains standard bore and original engine configuration
• Direct replacement compatible with OEM components
• Designed for top-end engine rebuilds
• Suitable for multiple KTM, Husqvarna, and GasGas models
• Provides consistent operation under demanding riding conditions
• Bore diameter: 81 mm
• Compression ratio: 14.5:1
• Displacement: 250 cc
• Engine type: 4-cycle
• Piston compatibility: Vertex piston #24615A
• Kit type: standard bore

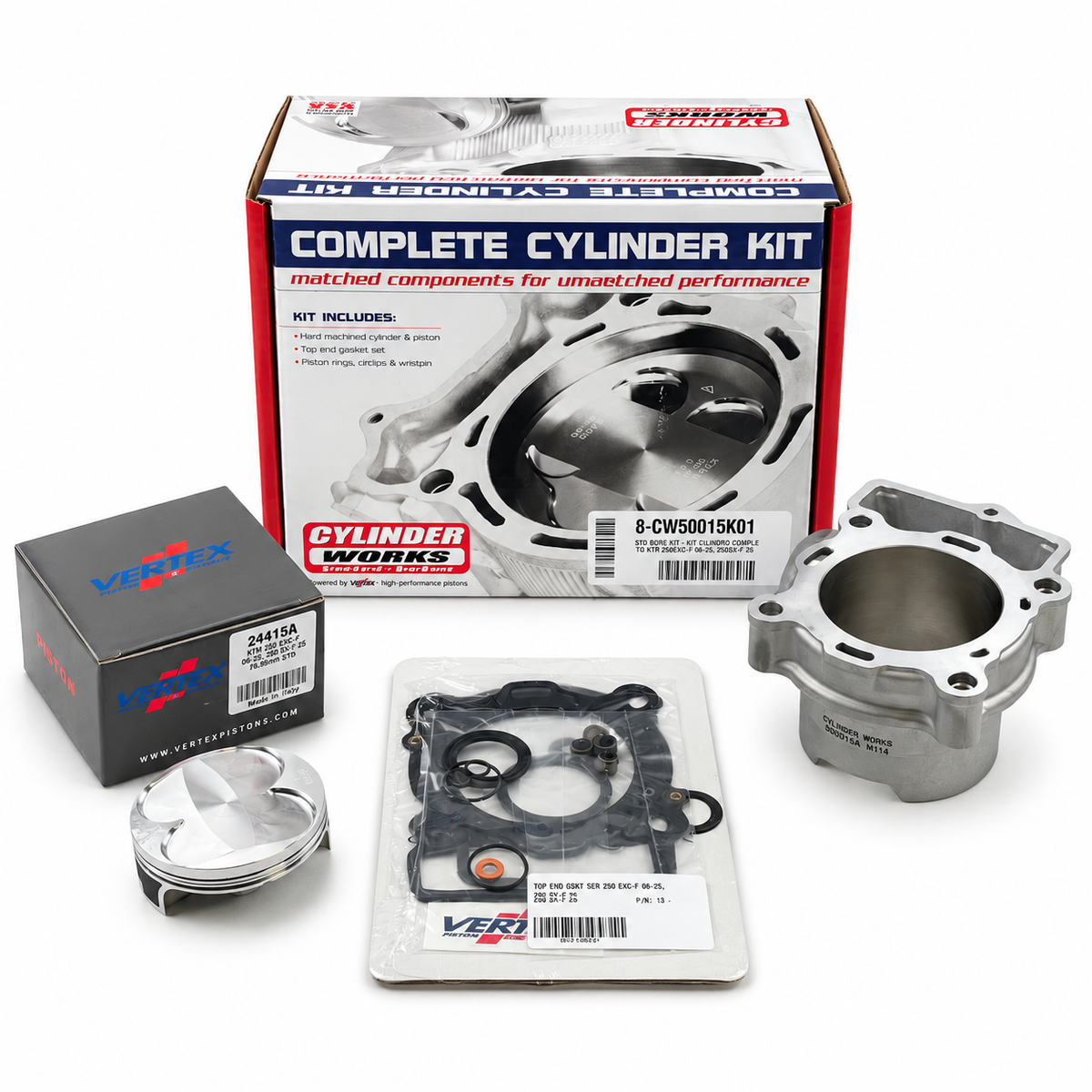

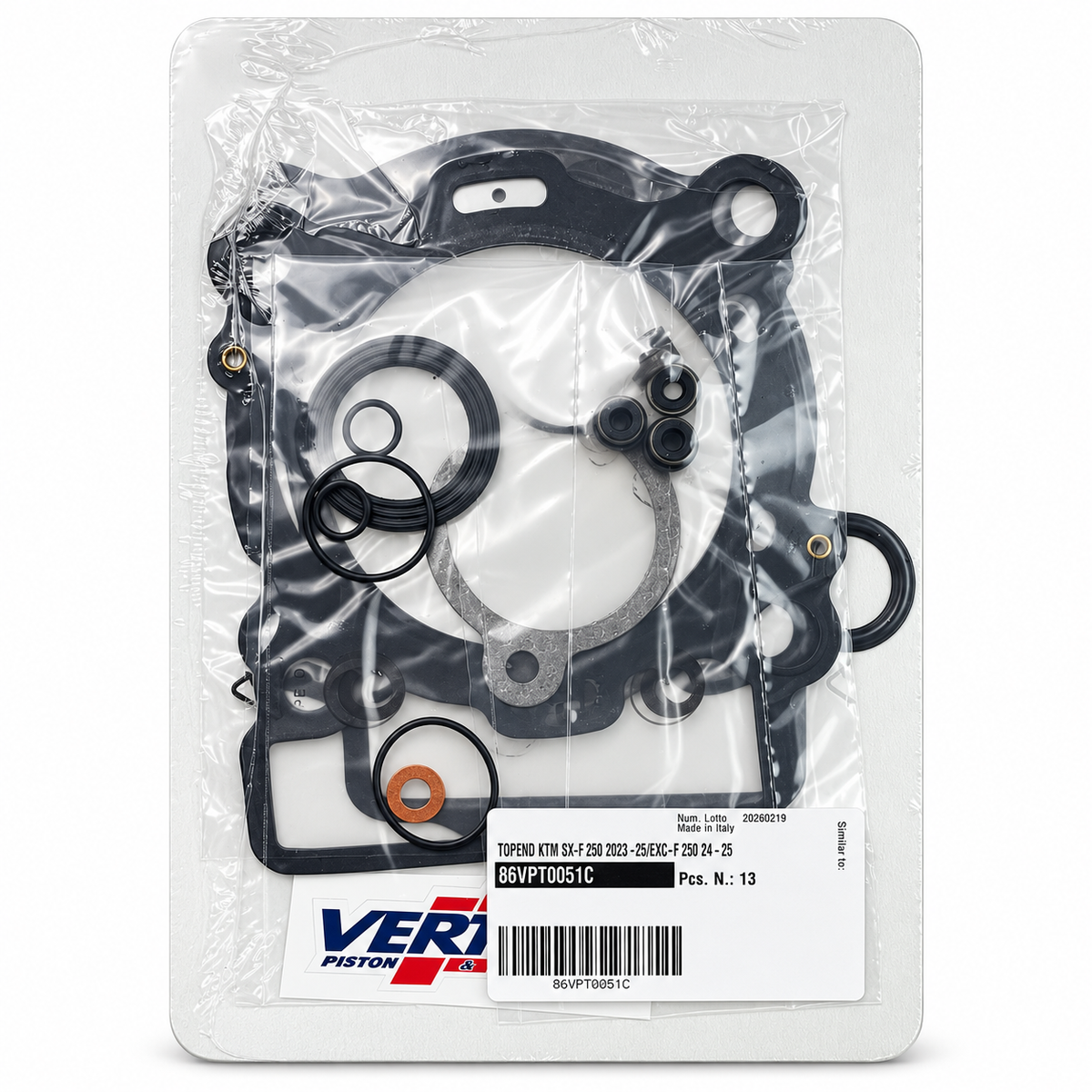

• Kit contents: cylinder, piston kit, top-end gasket kit
• Part number: CW50015K01
• Vehicle Fitments
• KTM 250 EXC-F (2024–2025)
• KTM 250 EXC-F Six Days (2024–2025)
• KTM 250 SX-F (2023–2025)
• KTM 250 SX-F Adamo Edition (2025)
• KTM 250 SX-F Factory (2022, 2024)
• KTM 250 XC-F (2023–2025)
• GasGas EC 250 F (2024–2025)
• GasGas EX 250 F (2024–2025)
• GasGas MC 250 F (2024–2025)
• GasGas MC 250 F Factory Edition (2023–2025)
• Husqvarna FC 250 (2023, 2024, 2025)
• Husqvarna FC 250 Heritage Edition (2023)
• Husqvarna FC 250 Rockstar Edition (2022, 2024)
• Husqvarna FE 250 (2024–2025)
• Husqvarna FE 250 Heritage Edition (2025)
