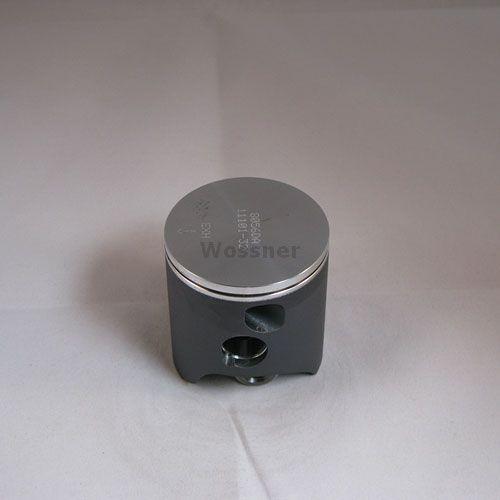

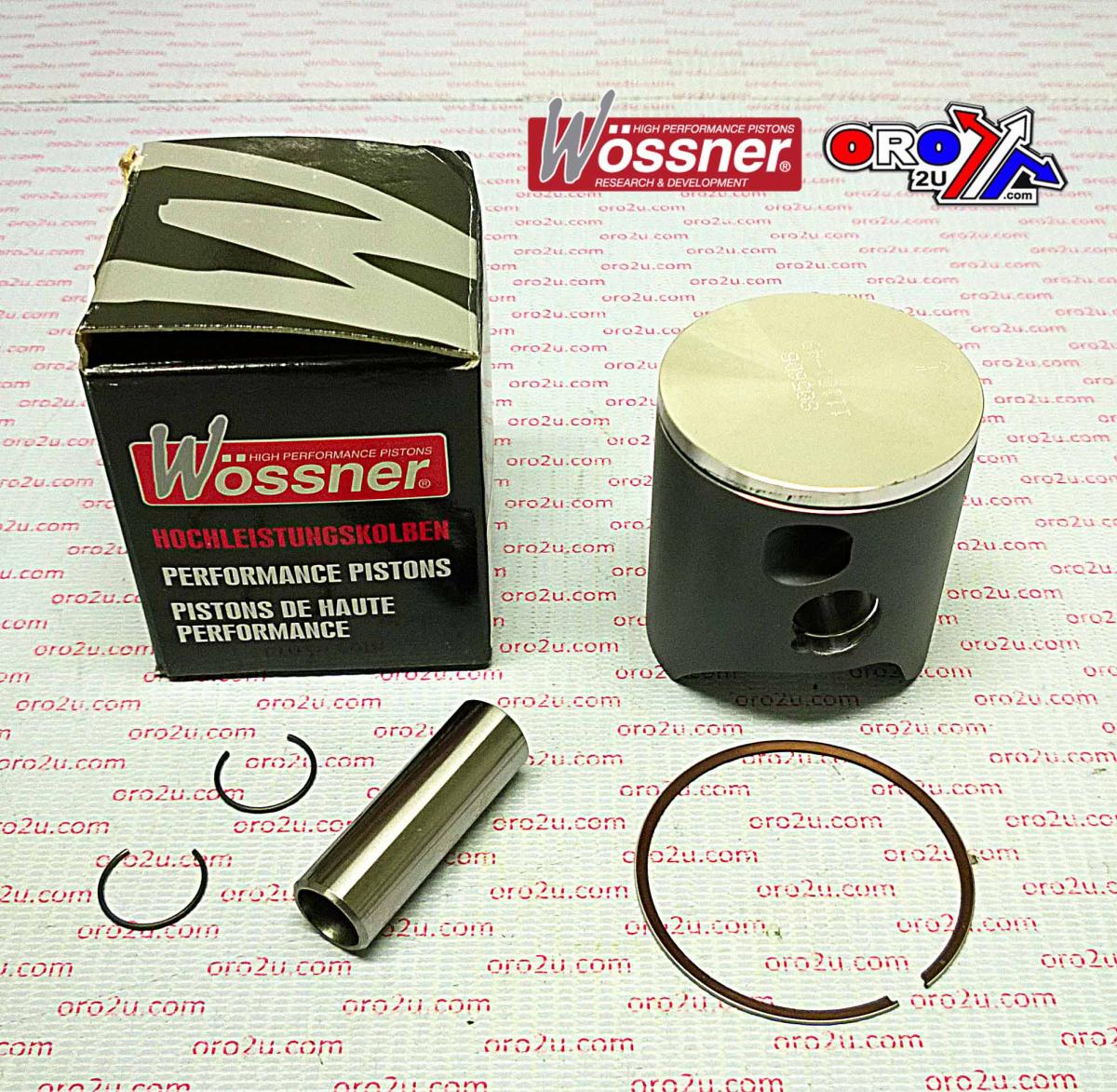

Piston Kit 01-06 KTM125 SX 54, Wossner 8056DA, 1-RING 50430007100

Piston Kit 01-06 KTM125 SX 54, Wossner 8056DA, 1-RING 50430007100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 01-06 KTM125 SX 54, Wossner 8056DA, 1-RING 50430007100
• Part number: 56-W010.A.WO
• Brand: Wossner
• Wossner forged piston for enhanced strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design to prevent localized pressure buildup
• Designed for single-ring applications
• Made in Germany
• Bore Size: 54.00mm
• Actual Piston Diameter: 53.95mm
• Hub Stroke: 54.50mm
• Clearance: 0.05mm
• Compression Height: 29.50mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Cross-Reference OEM Part Numbers
• 50430007100
• 09104766
• 836M05400
• 50330007500 I / 50330207100 I
• 50330007500 II / 50330207100 II

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 125cc — 2001–2006

Match your exact make, model, year and specification before ordering.
