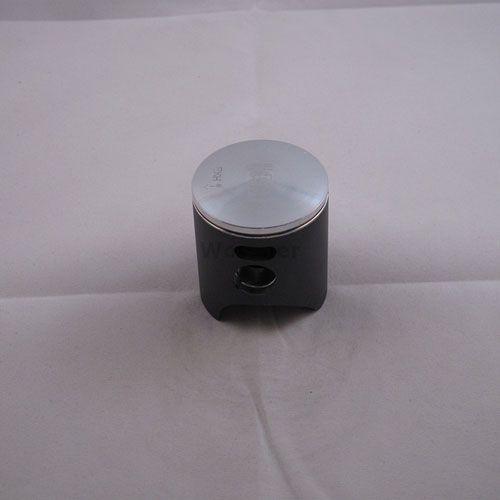

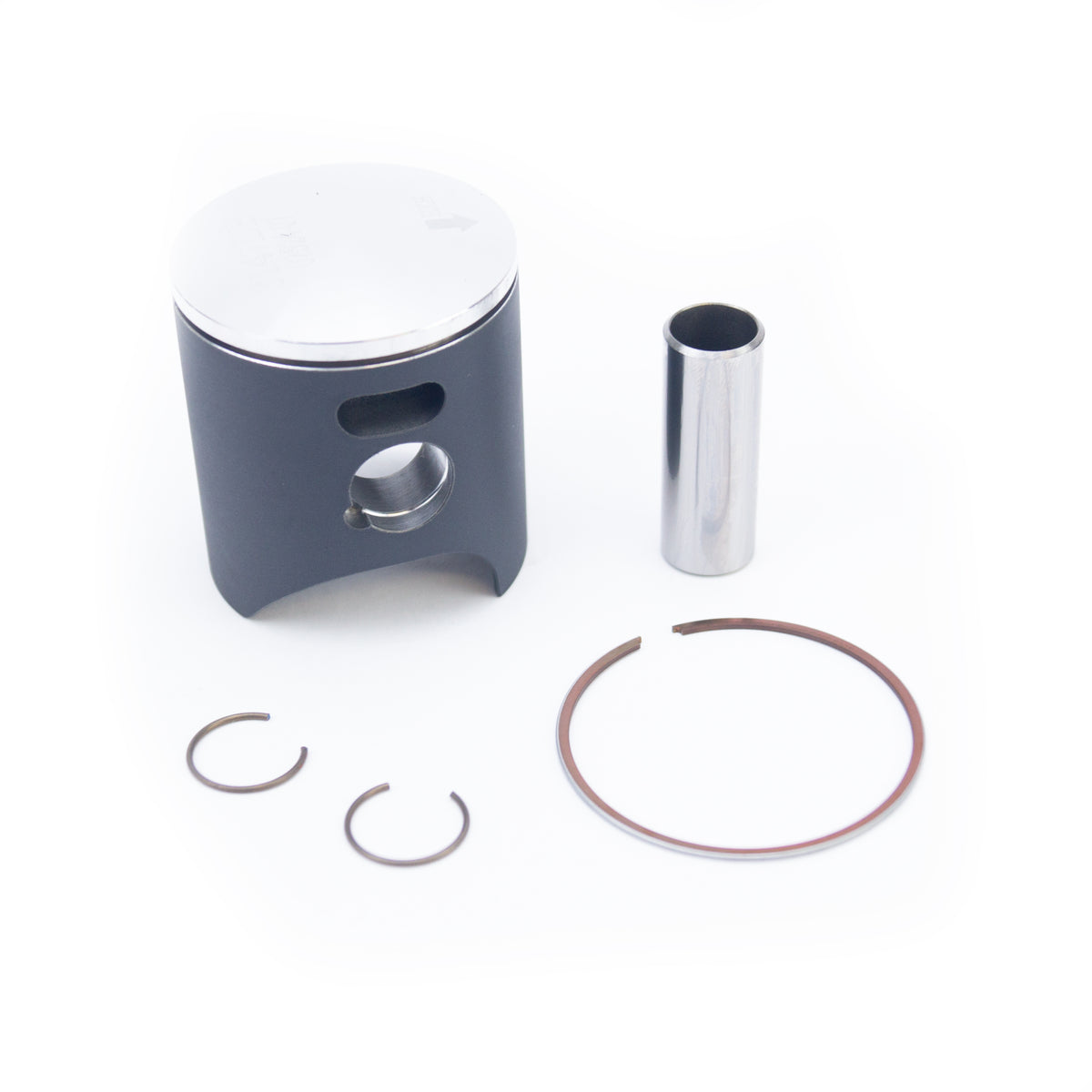

Piston Kit 03-23 SX85 47.00 C, Wossner 8147DC Forged Kit

Piston Kit 03-23 SX85 47.00 C, Wossner 8147DC Forged Kit. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 03-23 SX85 47.00 C, Wossner 8147DC Forged Kit
• Part number: 56-W012.C.WO
• Brand: Wossner
• Piston Kit 47mm Bore 46.97 Wossner 8147DC (+0.02)
• 85 SX 2003-2023
• TC85 2016-2023
• MC85 2021-2023
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Part No. 56-W012.C.WO (www.fdyperformance.com)
• Lock P/N CW14,
• Pin P/N WP058,
• Ring Set P/N RSV4700,
• Rod P/N P2065 2014 -,
• Needle bearing - N1006,
• Main bearing - 2 x MB6304C3
• Display (cm3) 84
• Hub stroke (mm) 48.95
• Clearance (mm) 0.05
• Wossner compression Ratio: 2 stroke
• OEM Compression ratio: 2 stroke
• Dome volume (cm3)
• Compression height (mm) 24.00
• Cross reference numbers ONLY. 47030007100 I / 47030007100 II ,

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 85cc — 2003–2017
• KTM SX 105cc — 2004–2011
• HUSQVARNA TC 85cc — 2014–2018
• KTM SX 85cc — 2003–2018
• HUSQVARNA TC 85cc — 2014–2020
• HUSQVARNA TC 85cc — 2014–2019
• KTM SX 85cc — 2003–2019
• KTM SX 85cc — 2003–2021
• HUSQVARNA TC 85cc — 2014–2021
• KTM SX 85cc — 2003–2007
• KTM XC 85cc — 2013–2019
• KTM XC 85cc — 2003–2019
• KTM SX 85cc — 2013–2019
• KTM XC 85cc — 2003–2017
• KTM XC 85cc — 2003–2014

Match your exact make, model, year and specification before ordering.
