Piston Kit 01-05 KTM250 75.00, Forged Wossner 8592DA 59830007000

Piston Kit 01-05 KTM250 75.00, Forged Wossner 8592DA 59830007000. Find the product specifications and compatibility information below.

Product details

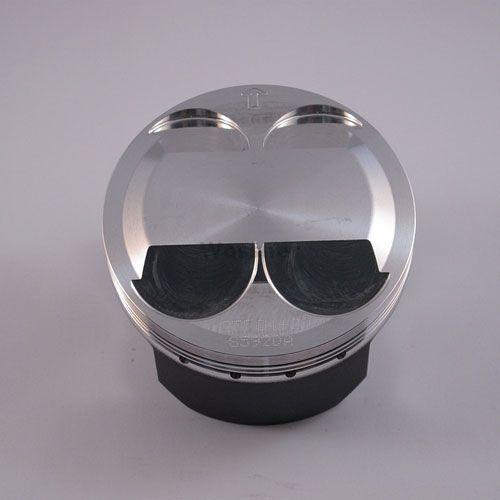

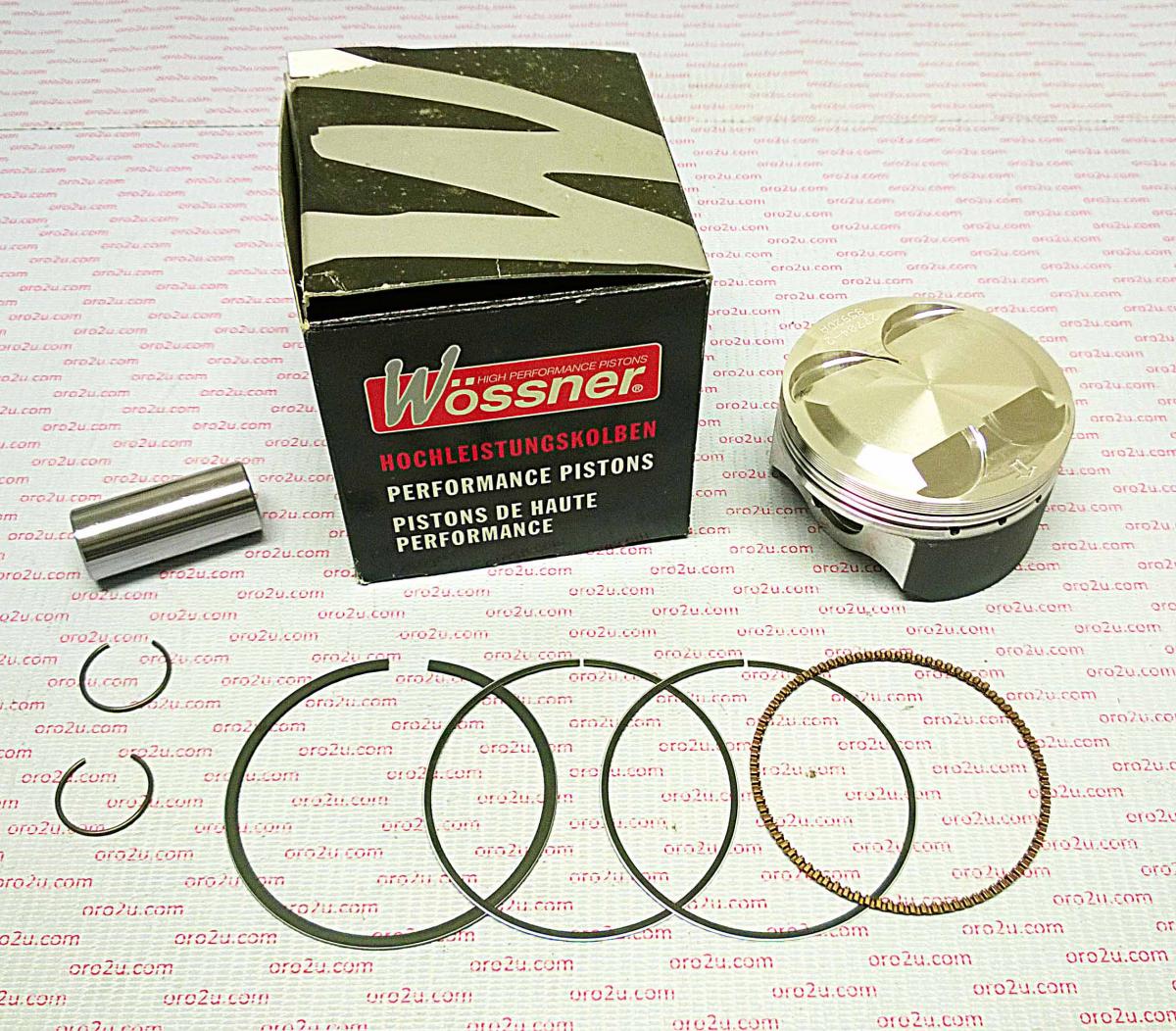

• Product: Piston Kit 01-05 KTM250 75.00, Forged Wossner 8592DA 59830007000
• Part number: 56-W029.A
• Brand: Wossner
• Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.
• Forged construction for enhanced durability
• Optimized heat transfer for improved performance
• Elliptical design prevents localized pressure and piston collapse
• OEM compression ratio for direct replacement
• Bore: 74.95 mm
• Piston Size: 75.00 mm
• Displacement: 249 cm³
• Stroke: 56.50 mm
• Clearance: 0.05 mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.00:1
• Dome Volume: +4.10 cm³
• Compression Height: 25.30 mm
• Cross-Reference OEM Part Numbers
• Lock: CW20
• Pin: WP029
• Ring Set: 750XDS
• OEM Part Number: 59830007000

Vehicle fitment

Applications listed in the supplier fitment data:

• BETA RR 250cc — 2005–2007
• BETA RR 250cc — 2013–2017
• KTM EXC R 250cc — 2001–2005

Match your exact make, model, year and specification before ordering.
