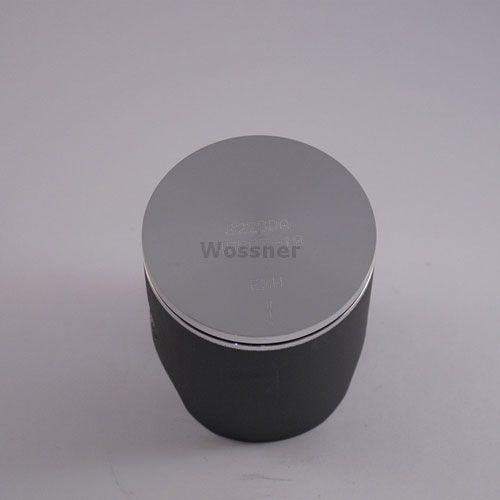

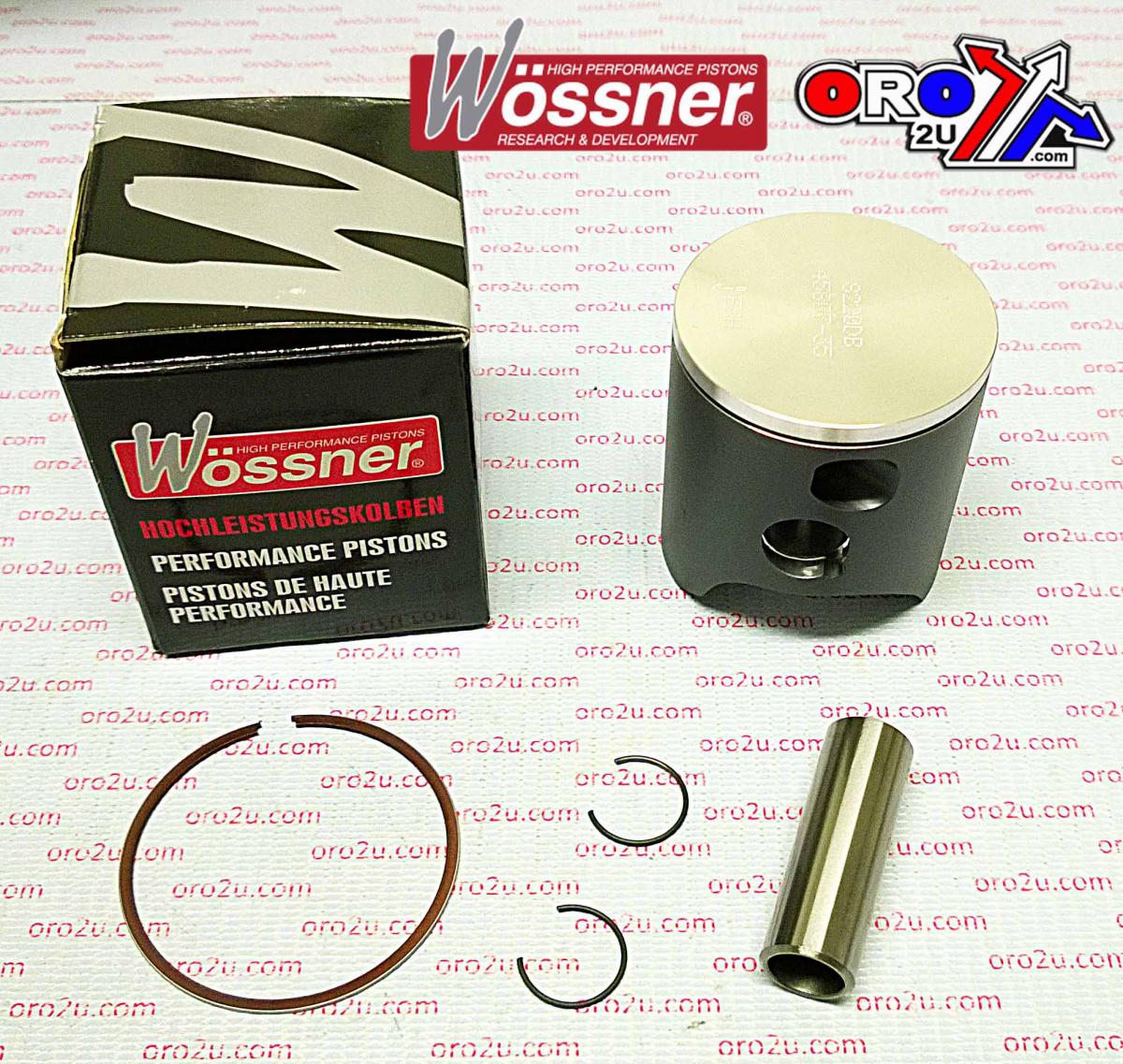

Piston Kit 07-18 KTM SX125 54, Forgedwossner 8220DB

Piston Kit 07-18 KTM SX125 54, Forgedwossner 8220DB. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 07-18 KTM SX125 54, Forgedwossner 8220DB
• Part number: 56-W035.B.WO
• Brand: Wossner
• Wossner forged piston kit designed for superior strength and performance in 2-stroke engines. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.
• Forged construction for enhanced durability
• Optimized heat transfer for improved performance
• Elliptical design prevents localized pressure and piston collapse
• Single-ring configuration for reduced friction and improved performance
• Bore: 53.96 mm
• Piston Size: 54.01 mm
• Displacement: 125 cm³
• Stroke: 54.50 mm
• Clearance: 0.05 mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 29.50 mm
• Cross-Reference OEM Part Numbers
• Gasket: D2043
• Lock: CW15
• Pin: WP032
• Ring Set: RSV5400
• Rod: P2012

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TE 125cc — 2014–2016
• HUSQVARNA TC 125cc — 2014–2021
• HUSABERG TE 125cc — 2012–2014
• KTM XC W 125cc — 2017–2018
• KTM EXC 125cc — 2009–2016
• HUSQVARNA TC 125cc — 2014–2018
• KTM XC W 125cc — 2017–2019
• HUSQVARNA TX 125cc — 2017–2019
• HUSQVARNA TC 125cc — 2014–2019
• HUSQVARNA TX 125cc — 2017–2020
• KTM EXC 125cc — 2001–2016
• KTM SX 125cc — 2017–2019
• HUSQVARNA TE 125cc — 2014–2020
• HUSQVARNA TC 125cc — 2014–2020
• KTM SX 125cc — 2001–2006
• KTM SX 125cc — 2007–2019
• HUSQVARNA TE 125cc — 2014–2017
• KTM SX 125cc — 2007–2017
• KTM EXC 125cc — 2014–2016
• KTM SX 125cc — 2007–2021
• KTM SX 125cc — 2002–2019
• KTM SX 125cc — 2007–2018
• HUSABERG TE 125cc — 2012–2015
• KTM EXC 125cc — 2001–2006

Match your exact make, model, year and specification before ordering.
