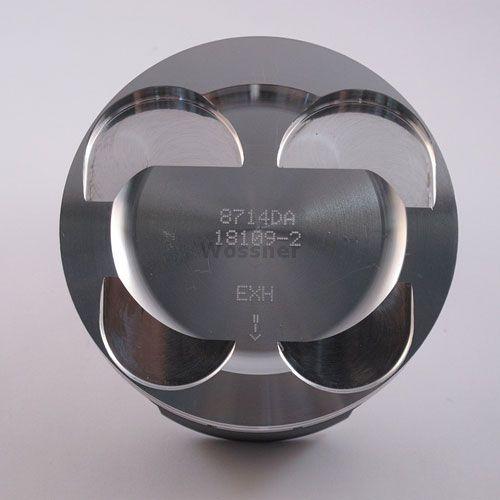

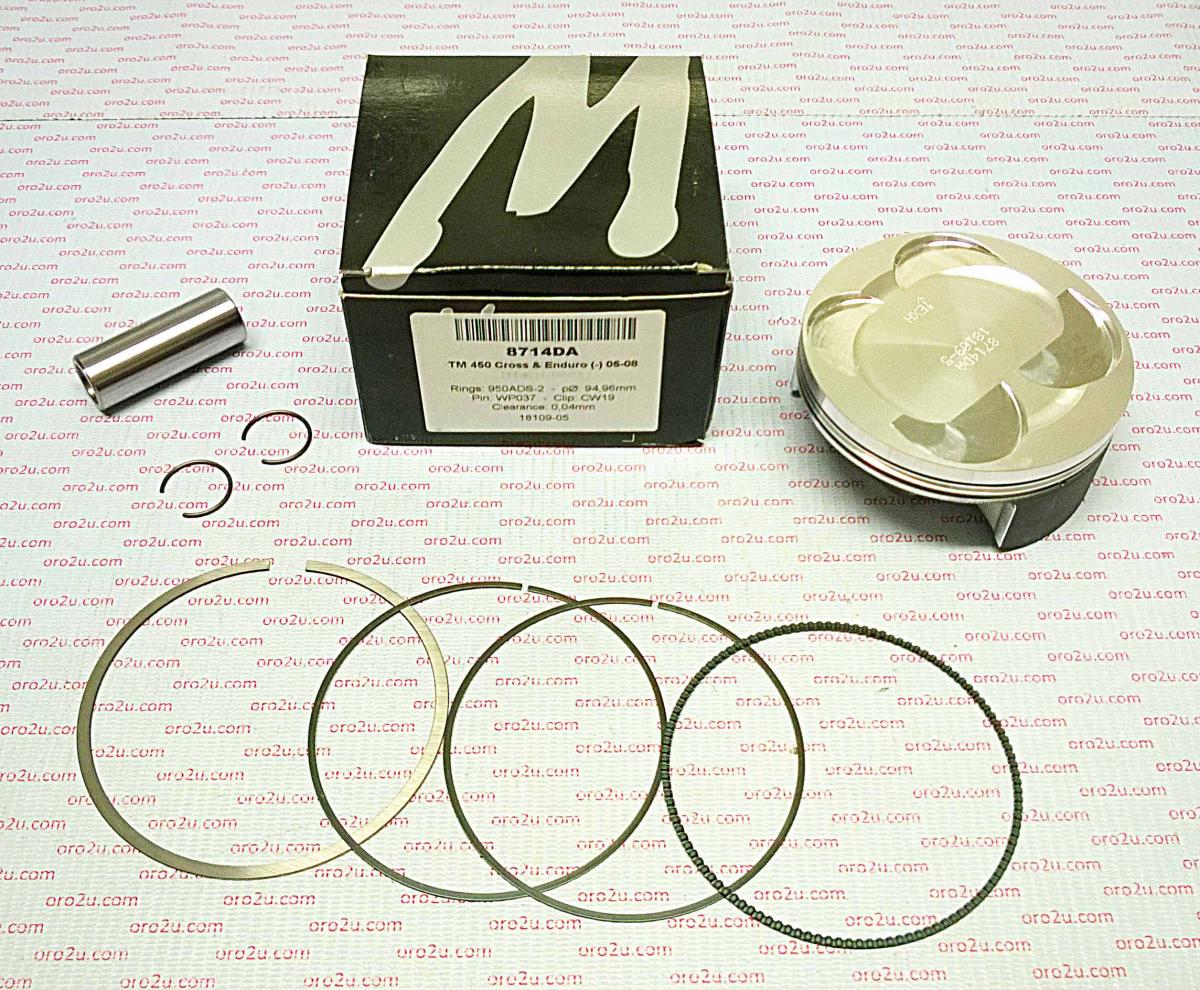

Piston Kit 05-09 Tm 450 F 95mm, Forged Wossner 8714DC

Piston Kit 05-09 Tm 450 F 95mm, Forged Wossner 8714DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 05-09 Tm 450 F 95mm, Forged Wossner 8714DC
• Part number: 56-W038.WO.C
• Brand: Wossner
• Wossner forged piston kit designed for superior strength and performance. Engineered for optimal heat transfer from the combustion chamber to cylinder walls. The elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany.
• Forged construction for enhanced durability
• Optimized heat transfer for improved performance
• Elliptical design prevents localized pressure and piston collapse
• OEM compression ratio for direct replacement
• Bore: 94.98 mm
• Piston Size: 95.02 mm
• Displacement: 144 cm³
• Stroke: 63.40 mm
• Clearance: 0.04 mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 11.90:1
• Dome Volume: -11.40 cm³
• Compression Height: 25.50 mm
• Cross-Reference OEM Part Numbers
• Lock: CW19
• Pin: WP037
• Ring Set: 950ADS

Vehicle fitment

Applications listed in the supplier fitment data:

• TM MX F 450cc — 2005–2008
• TM ENDURO F 450cc — 2005–2008
• TM EN F 450cc — 2005–2008
• TM CROSS F 450cc — 2005–2008
• TM TM F 450cc — 2005–2008

Match your exact make, model, year and specification before ordering.
