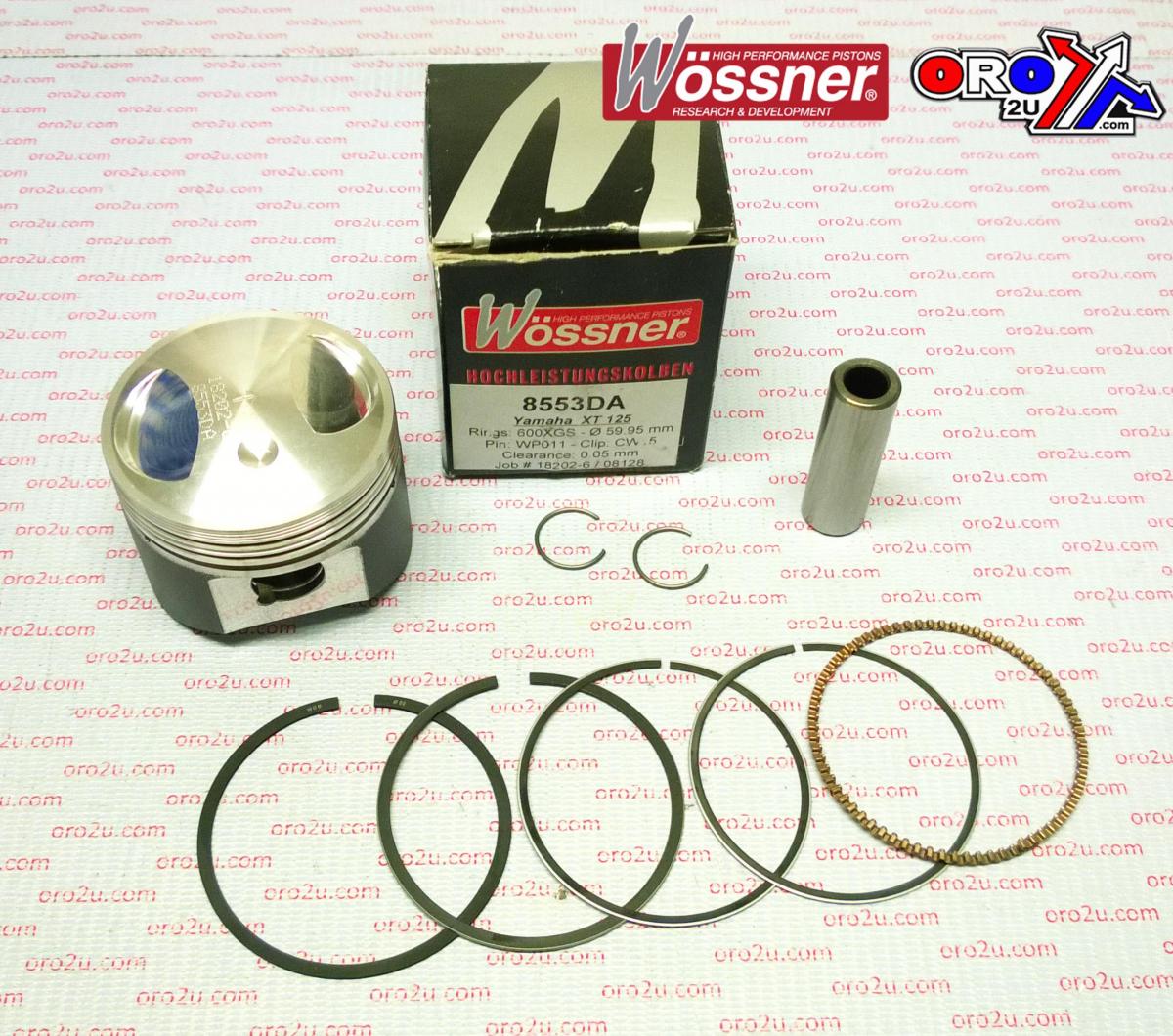

Piston Kit All XT125 65.00, Forged Wossner 8553D500

Piston Kit All XT125 65.00, Forged Wossner 8553D500. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit All XT125 65.00, Forged Wossner 8553D500
• Part number: 56-W063+500.WO
• Brand: Wossner
• Wossner forged piston kit designed for superior strength and efficient heat transfer. The elliptical design ensures uniform bearing surface distribution under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany for high performance and durability.
• Forged piston for enhanced strength and reliability
• Optimized heat transfer to cylinder walls for efficient combustion
• Elliptical design prevents piston collapse and ensures uniform thrust load distribution
• Manufactured in Germany
• Bore: 65.00mm (+5.00)
• Piston Size: 64.95mm
• Clearance: 0.05mm
• Compression Ratio: OEM
• OEM Compression Ratio: 10.00:1
• Compression Height: 24.00mm
• Dome Volume: +4.80cm³
• Theoretical Weight: Not specified
• Cross-Reference OEM Part Numbers
• Lock: CW15
• Pin: WP011
• Ring Set: 650XKS

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA XT 125cc — 2003–2012

Match your exact make, model, year and specification before ordering.
