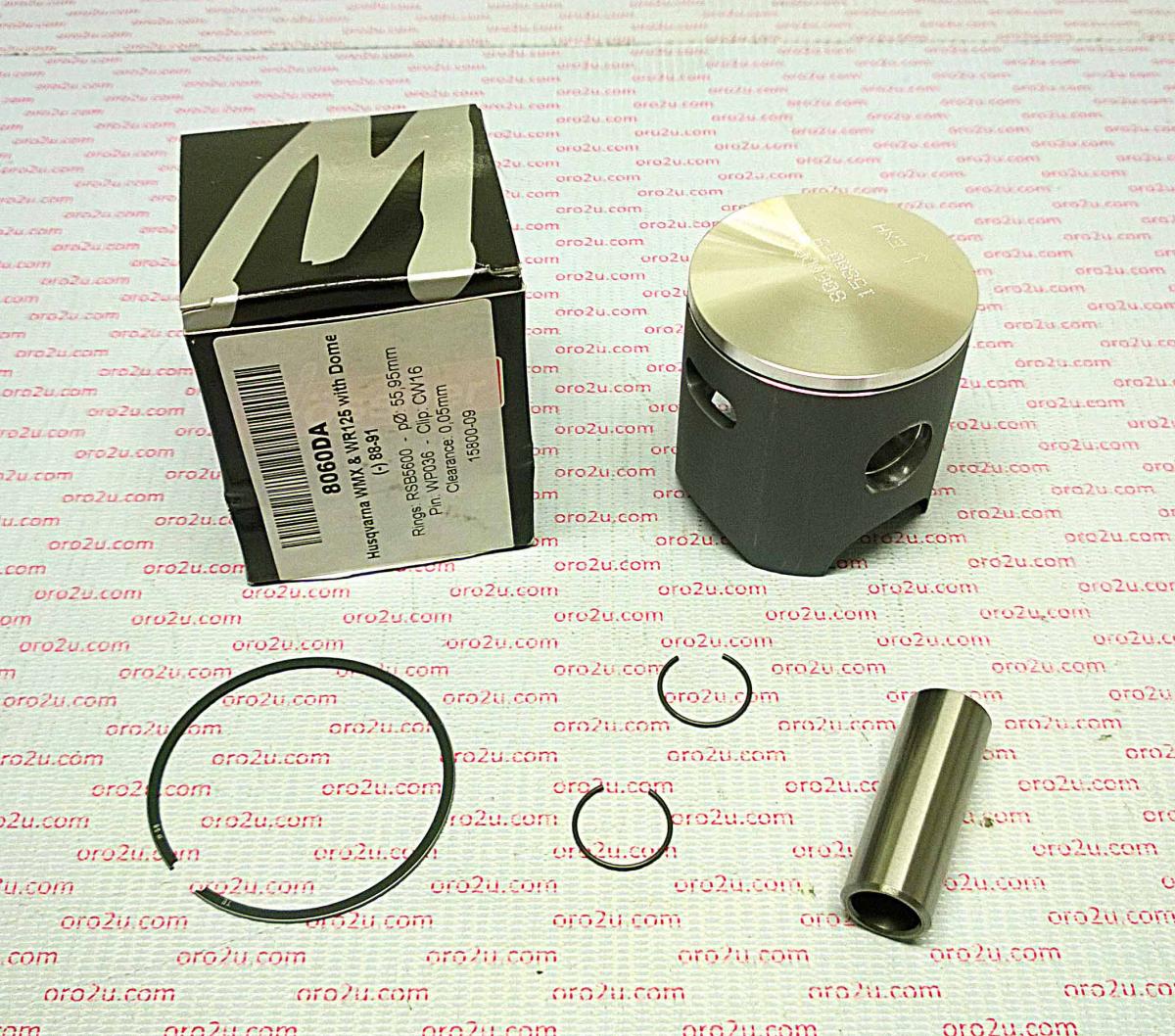

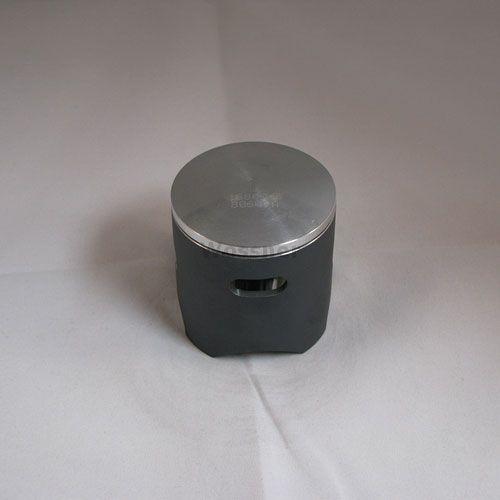

Piston Kit 88-91 Husky 125 57, Wossner Piston Kit 8060D100

Piston Kit 88-91 Husky 125 57, Wossner Piston Kit 8060D100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 88-91 Husky 125 57, Wossner Piston Kit 8060D100
• Part number: 56-W074+100.WO
• Brand: Wossner
• Piston Kit 57.00mm Bore 56.95 Wossner 8060D100 (+1.00)
• WMX 125: 1988 - 1991
• WR125: 1988 - 1991
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Components:
• Lock P/N: CW16
• Pin P/N: WP036
• Ring Set P/N: RSB5700 x 2
• Displacement (cm3): 124
• Hub Stroke (mm): 50.40
• Clearance (mm): 0.05
• Wossner Compression Ratio: 2 stroke
• OEM Compression Ratio: 2 stroke
• Dome Volume (cm3): Domed
• Compression Height (mm): 25.00

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA WR 125cc — 1988–1991

Match your exact make, model, year and specification before ordering.
