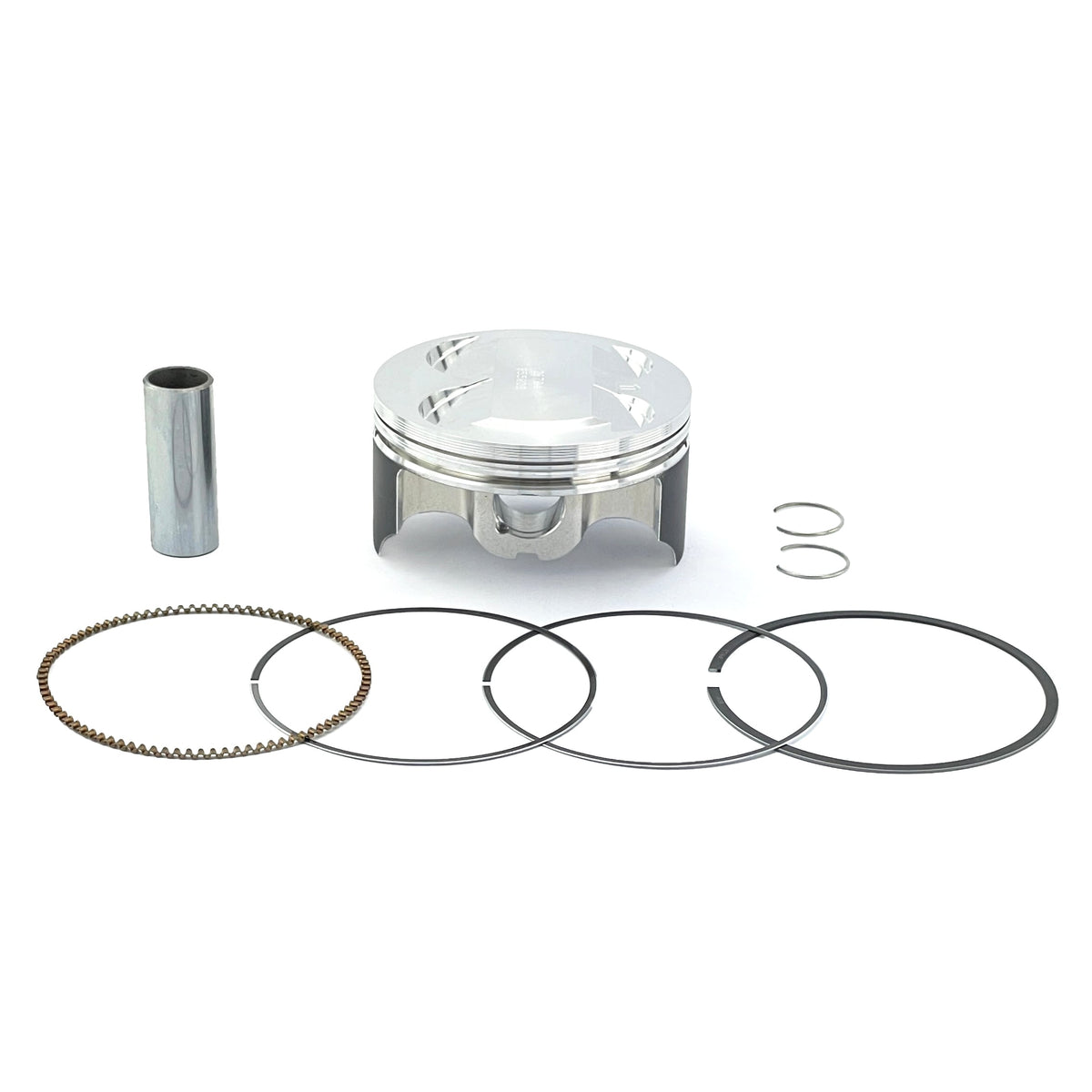

Piston Kit TC400 99-01 91.50mm Wossner 8550DB Husqvarna

Piston Kit TC400 99-01 91.50mm Wossner 8550DB Husqvarna. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit TC400 99-01 91.50mm Wossner 8550DB Husqvarna
• Part number: 56-W104.B
• Brand: Wossner
• Piston Kit Details:
• Piston Kit: Wossner 8550DB (+0.01)
• Bore: 91.50mm
• Wossner Part Number: 8550DB
• TC 400 1999 - 2001
• SMR400 2005 - 2007
• Wossner Piston Features:
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Additional Part Information:
• PART NO.: 56-W104.B (www.fdyperformance.com)
• Wossner Piston Part Number: 8550DB
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 915XSY
• Technical Specifications:
• Displacement (cm3): 399
• Hub Stroke (mm): 60.80
• Clearance (mm): 0.06
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 11.40:1
• Dome Volume (cm3): +1.90
• Compression Height (mm): 24.50

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TC 400cc — 1999–2001
• HUSQVARNA SMR 400cc — 2005–2007
• HUSQVARNA TE 400cc — 2001–2003
• HUSQVARNA SMR 400cc — 2001–2004

Match your exact make, model, year and specification before ordering.
