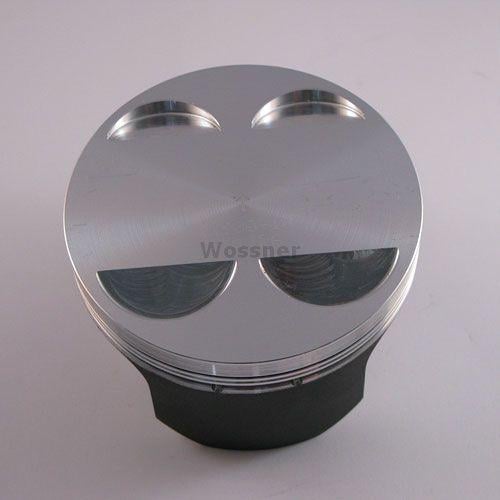

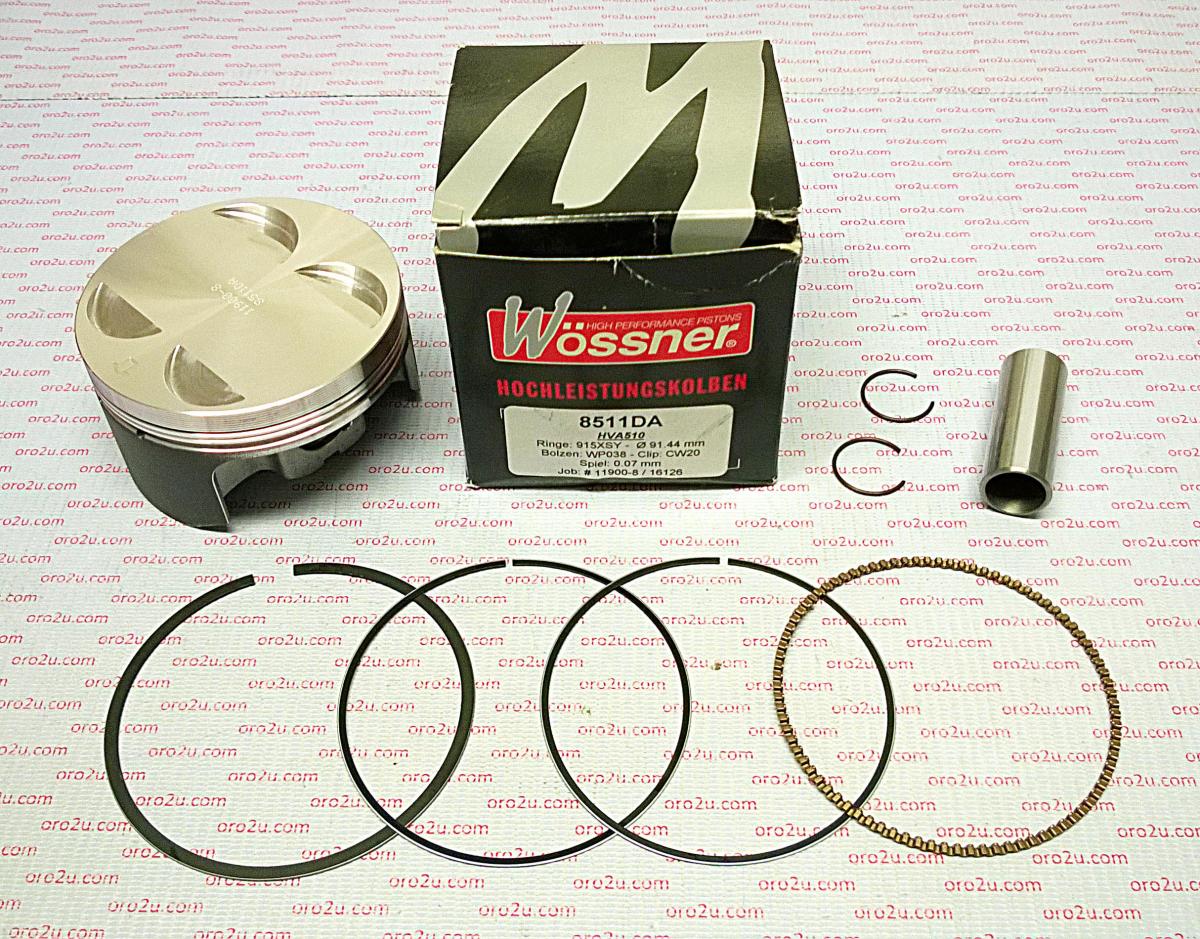

Piston Kit 87-90 510cc 91.50, Wossner 8511DA Husqvarna

Piston Kit 87-90 510cc 91.50, Wossner 8511DA Husqvarna. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 87-90 510cc 91.50, Wossner 8511DA Husqvarna
• Part number: 56-W105.A
• Brand: Wossner
• Piston Kit 91.50mm Bore 91.44 Wossner 8511DA (STD)
• TC 510: 1987 - 1990
• TE 510: 1987 - 1990
• WRE 510: 1987 - 1990
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Lock P/N: CW20
• Pin P/N: WP038
• Ring Set P/N: 915XSY
• Display (cm3): 503
• Hub stroke (mm): 76.50
• Clearance (mm): 0.06
• Wossner compression Ratio: OEM
• OEM Compression ratio: 12.00:1
• Dome volume (cm3): -2.60
• Compression height (mm): 30.00

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TE 510cc — 1987–1990
• HUSQVARNA TC 510cc — 1987–1990
• HUSQVARNA WRE 510cc — 1987–1990

Match your exact make, model, year and specification before ordering.
