Piston Kit 02-05 TC TE 250 76, Wossner 8576DA Husqvarna

Piston Kit 02-05 TC TE 250 76, Wossner 8576DA Husqvarna. Find the product specifications and compatibility information below.

Product details

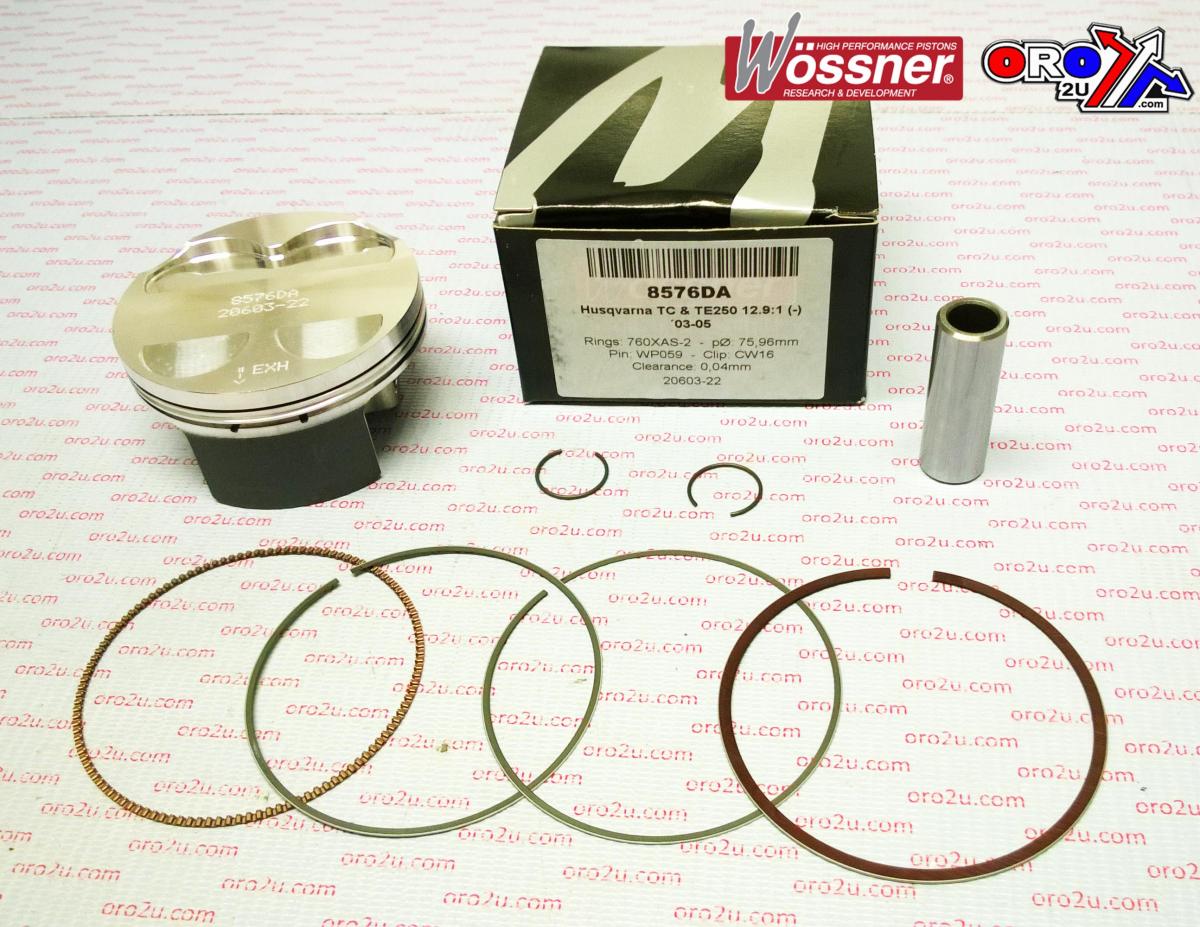

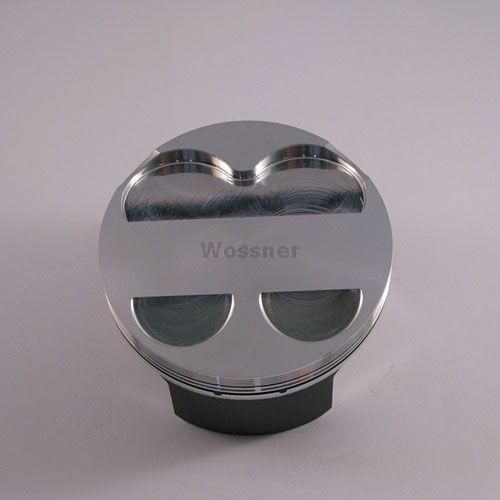

• Product: Piston Kit 02-05 TC TE 250 76, Wossner 8576DA Husqvarna
• Part number: 56-W117.A
• Brand: Wossner
• Wossner forged piston for superior strength and durability
• Optimized heat transfer for improved combustion efficiency
• Elliptical design for uniform bearing surface and reduced localized pressure
• Precision-engineered to prevent piston collapse
• Made in Germany
• Bore Size: 76.00mm (75.96mm)
• Standard Size (STD)
• Displacement: 249cc
• Stroke: 55.00mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 12.90:1
• OEM Compression Ratio: 12.50:1
• Dome Volume: -3.10cm³
• Compression Height: 23.50mm
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 760XAS
• Theoretical Weight: Not specified
• Cross-Reference OEM Part Numbers
• 10887M07600

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TE 250cc — 2013
• HUSQVARNA TC 250cc — 2012–2013
• HUSQVARNA TC 250cc — 2002–2005
• HUSQVARNA TE 250cc — 2002–2005
• HUSQVARNA TE 250cc — 2003–2005
• HUSQVARNA TC 250cc — 2003–2005

Match your exact make, model, year and specification before ordering.
