Piston Kit 07-20 TRX420 86.50, 8869DA Wossner Forged Rancher 13101-HP5-600, TRX420FA/FE/Fm/TE/Tm/Fpa/Fpe/F

Piston Kit 07-20 TRX420 86.50, 8869DA Wossner Forged Rancher 13101-HP5-600, TRX420FA/FE/Fm/TE/Tm/Fpa/Fpe/F. Find the product specifications and compatibility information below.

Product details

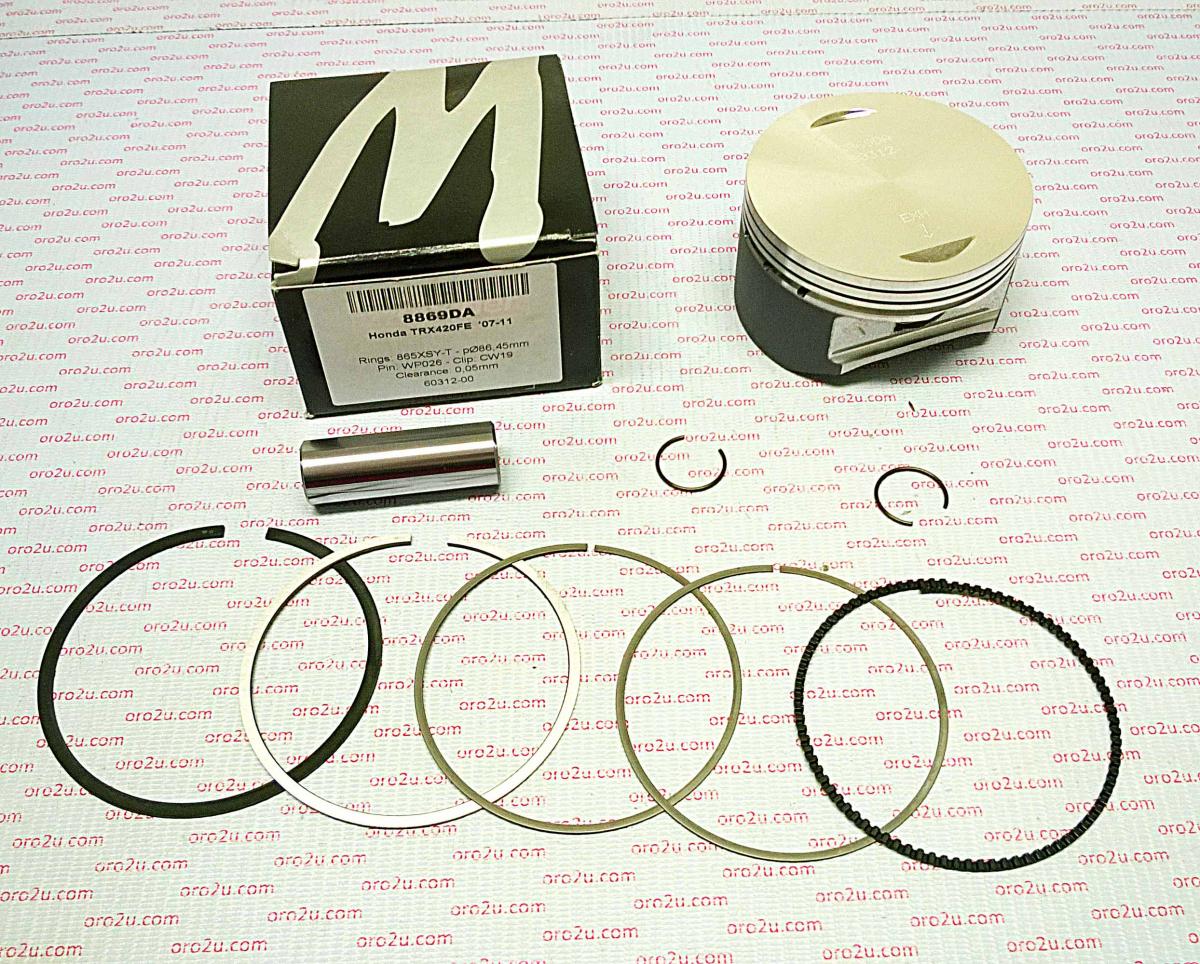

• Product: Piston Kit 07-20 TRX420 86.50, 8869DA Wossner Forged Rancher 13101-HP5-600, TRX420FA/FE/Fm/TE/Tm/Fpa/Fpe/F
• Part number: 56-W136.000.WO
• Brand: Wossner
• Piston Kit: Wossner 8869DA, with an 86.50mm bore (STD)
• Wossner forged pistons known for superior strength and design
• Engineered for efficient combustion chamber heat transfer to cylinder walls
• Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
• Manufacturing: Made in Germany
• Additional Parts:
• C-Clip: CW19
• Pin: WP026
• Rings: 865XSY
• Size: 86.45mm
• Displacement: 420 cm³
• Hub Stroke: 72.00mm
• Clearance: 0.06mm
• Compression Ratio: Wossner (not specified), OEM (not specified)
• Dome Volume: Not provided
• Compression Height: 38.00mm
• Theoretical Weight: Not provided
• Additionally, here are some cross-reference numbers:
• 13101-HP5-600
• 40050M08650
• 01.1487.000

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA TRX 420cc — 2009–2014
• HONDA TRX FE 420cc — 2007–2020
• HONDA TRX 420cc — 2009–2019
• HONDA TRX 420cc — 2009–2013
• HONDA TRX 420cc — 2007–2019

Match your exact make, model, year and specification before ordering.
