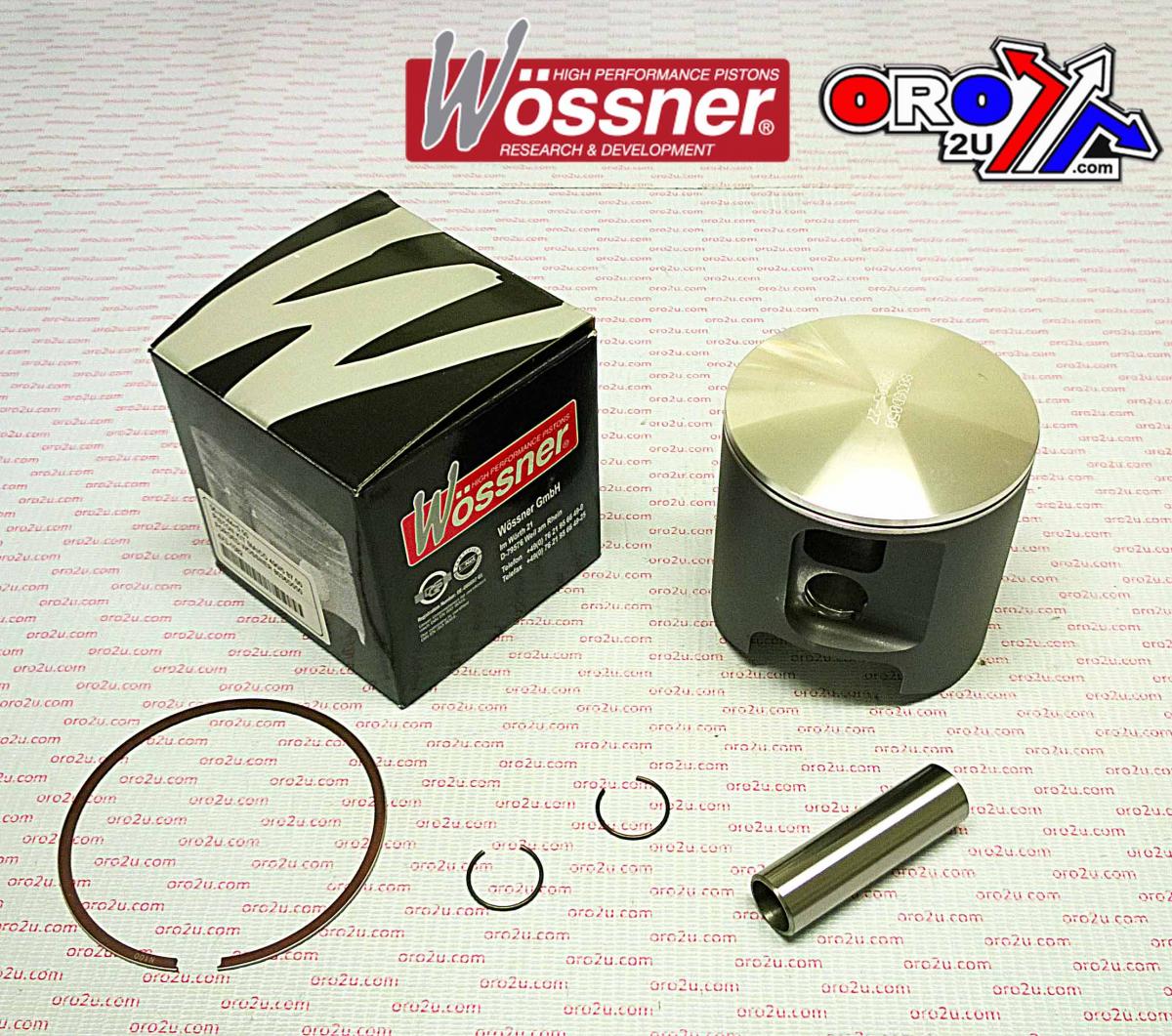

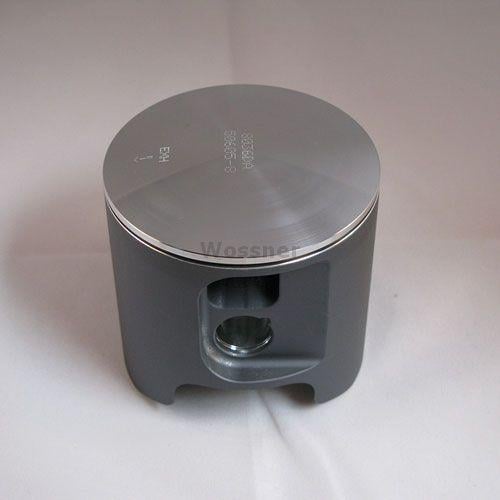

Piston Kit Maico 490/500 87.50, Forged Wossner 8036D100

Piston Kit Maico 490/500 87.50, Forged Wossner 8036D100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit Maico 490/500 87.50, Forged Wossner 8036D100
• Part number: 56-W144+1.00
• Brand: Wossner
• Wossner forged piston kit designed for Maico 490 models with an 87.50mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.
• Forged construction for superior strength and durability
• Optimized heat transfer for improved engine performance
• Elliptical design ensures even pressure distribution, reducing localized stress
• Manufactured in Germany for high-quality performance
• Bore Size: 87.50mm
• Actual Bore: 87.42mm
• Displacement: 488 cm³
• Stroke: 83.00mm
• Clearance: 0.08mm
• Compression Ratio: 2-Stroke
• Compression Height: 41.70mm
• Lock Part Number: CW18
• Pin Part Number: WP042
• Ring Set Part Number: RSC8750
• Cross-Reference OEM Part Numbers
• Wossner Piston Part Number: 8036D100

Vehicle fitment

Applications listed in the supplier fitment data:

• MAICO MC 490cc — 1980–2002
• MAICO GS 490cc — 1980–2002

Match your exact make, model, year and specification before ordering.
