Piston Kit 06-9 TC TE250 76.00, Wossner 8650DB Husqvarna

Piston Kit 06-9 TC TE250 76.00, Wossner 8650DB Husqvarna. Find the product specifications and compatibility information below.

Product details

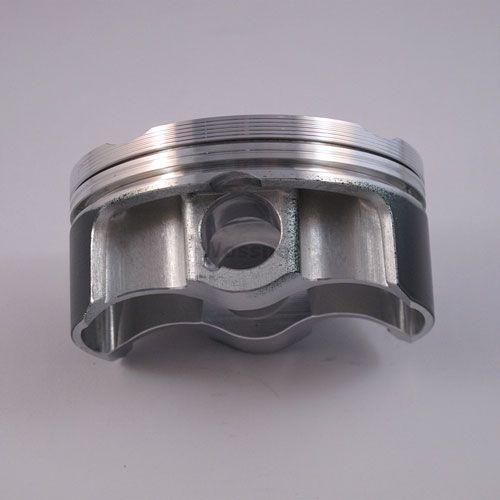

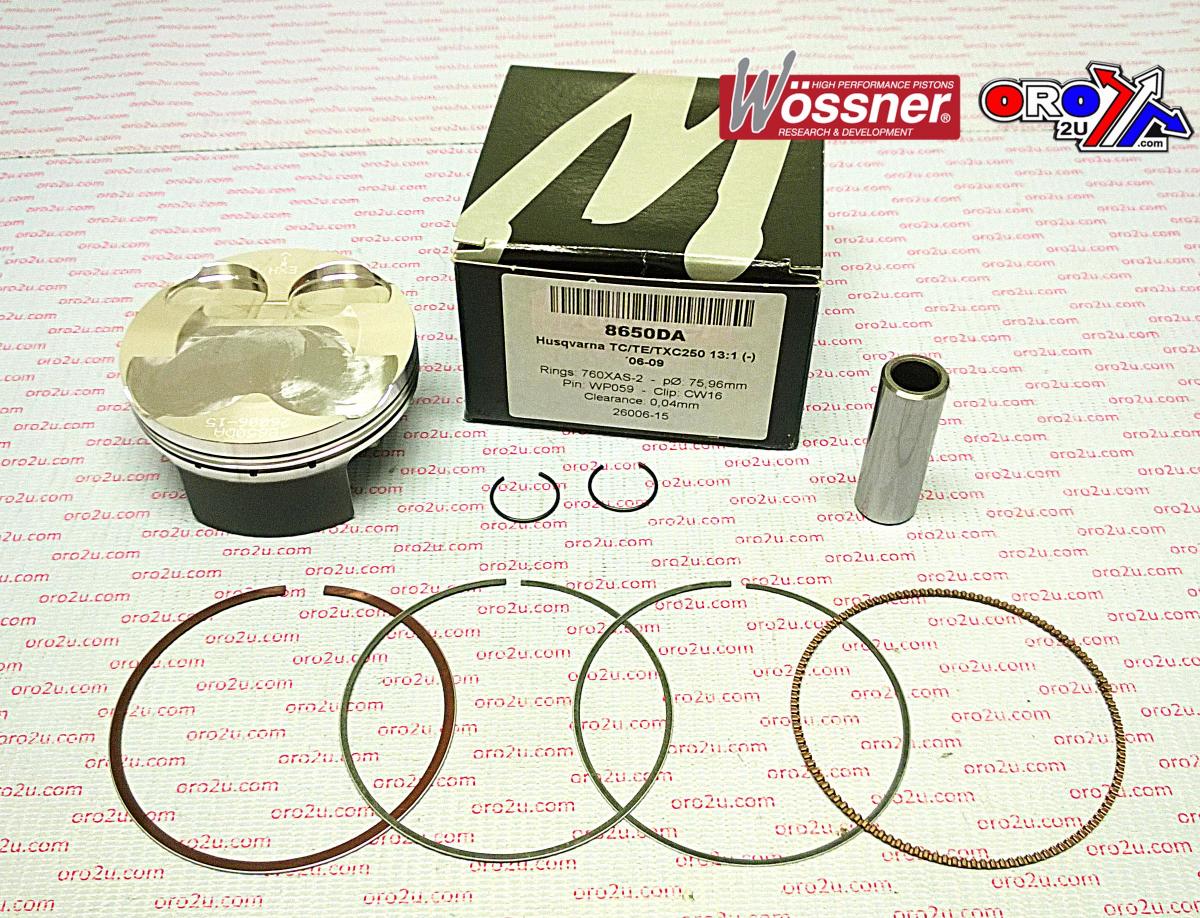

• Product: Piston Kit 06-9 TC TE250 76.00, Wossner 8650DB Husqvarna
• Part number: 56-W145.WO.B
• Brand: Wossner
• Piston Kit: Wossner 8650DB, with a 76.02mm bore (+0.01mm)
• Wossner forged pistons known for superior strength and design
• Engineered for efficient combustion chamber heat transfer to cylinder walls
• Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
• Manufacturing: Made in Germany
• Additional Parts:
• Lock: CW16
• Pin: WP059
• Ring Set: 760XAS
• Displacement: 249 cm³
• Hub Stroke: 55.00mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 13.00:1
• OEM Compression Ratio: 12.90:1
• Dome Volume: -2.70cm³
• Compression Height: 20.00mm
• Theoretical Weight: Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSQVARNA TXC 250cc — 2008–2009
• HUSQVARNA TC 250cc — 2006–2007
• HUSQVARNA TE 250cc — 2006–2009
• HUSQVARNA TC 250cc — 2006–2009

Match your exact make, model, year and specification before ordering.
