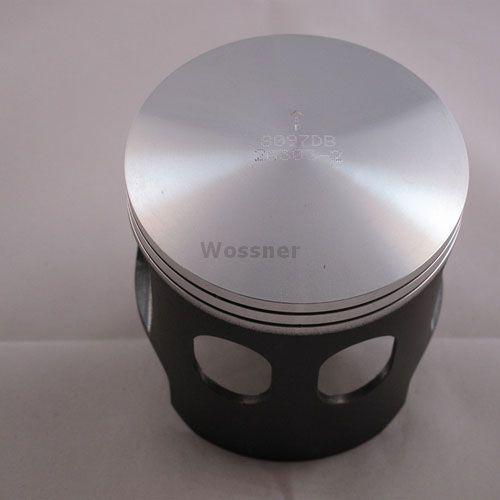

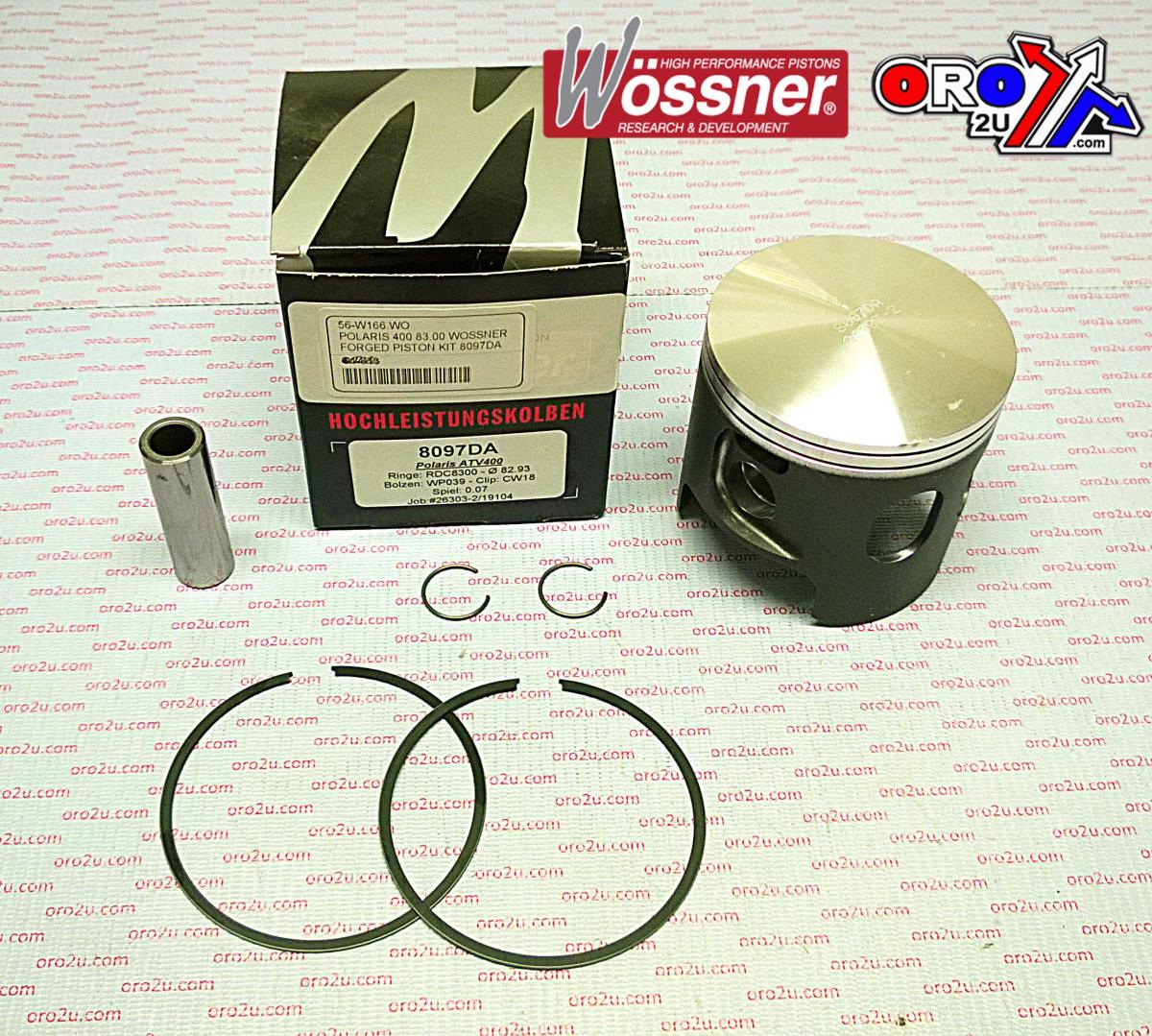

Piston Kit Polaris 350 83.50, Forged Wossner 8097D050 ATV

Piston Kit Polaris 350 83.50, Forged Wossner 8097D050 ATV. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit Polaris 350 83.50, Forged Wossner 8097D050 ATV
• Part number: 56-W166_050.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 83.50mm (+0.50mm oversize)
• Standard size piston (PN# 8097D050)
• Lock Part Number: CW18
• Pin Part Number: WP039
• Ring Set Part Number: RSDC8350 x2
• Displacement: 378 cm³
• Stroke: 70.00mm
• Clearance: 0.07mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 38.00mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• POLARIS SCRAMBLER 400cc — 1995–2002
• POLARIS XPLORER 400cc — 1993–2002
• POLARIS TRAIL BLAZER 400cc — 1994–2003
• POLARIS SPORT 400cc — 1993–2002
• POLARIS ATV 400cc — 1995–2003
• POLARIS 6X6 L 400cc — 1994–2003
• POLARIS 4X4 L 400cc — 1994–2003
• POLARIS 2X4 L 400cc — 1994–2003

Match your exact make, model, year and specification before ordering.
