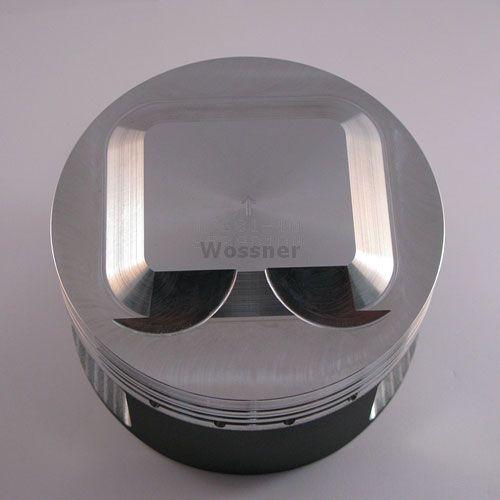

Piston Kit 84-87 KLR600 97.50, Forged Wossner 8509D150

Piston Kit 84-87 KLR600 97.50, Forged Wossner 8509D150. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 84-87 KLR600 97.50, Forged Wossner 8509D150
• Part number: 56-W172+1.50
• Brand: Wossner
• Piston Kit: Wossner 8509D150, with a 97.50mm bore (+1.50mm)
• Wossner forged pistons known for superior strength and design
• Engineered for efficient combustion chamber heat transfer to cylinder walls
• Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse
• Manufacturing: Made in Germany

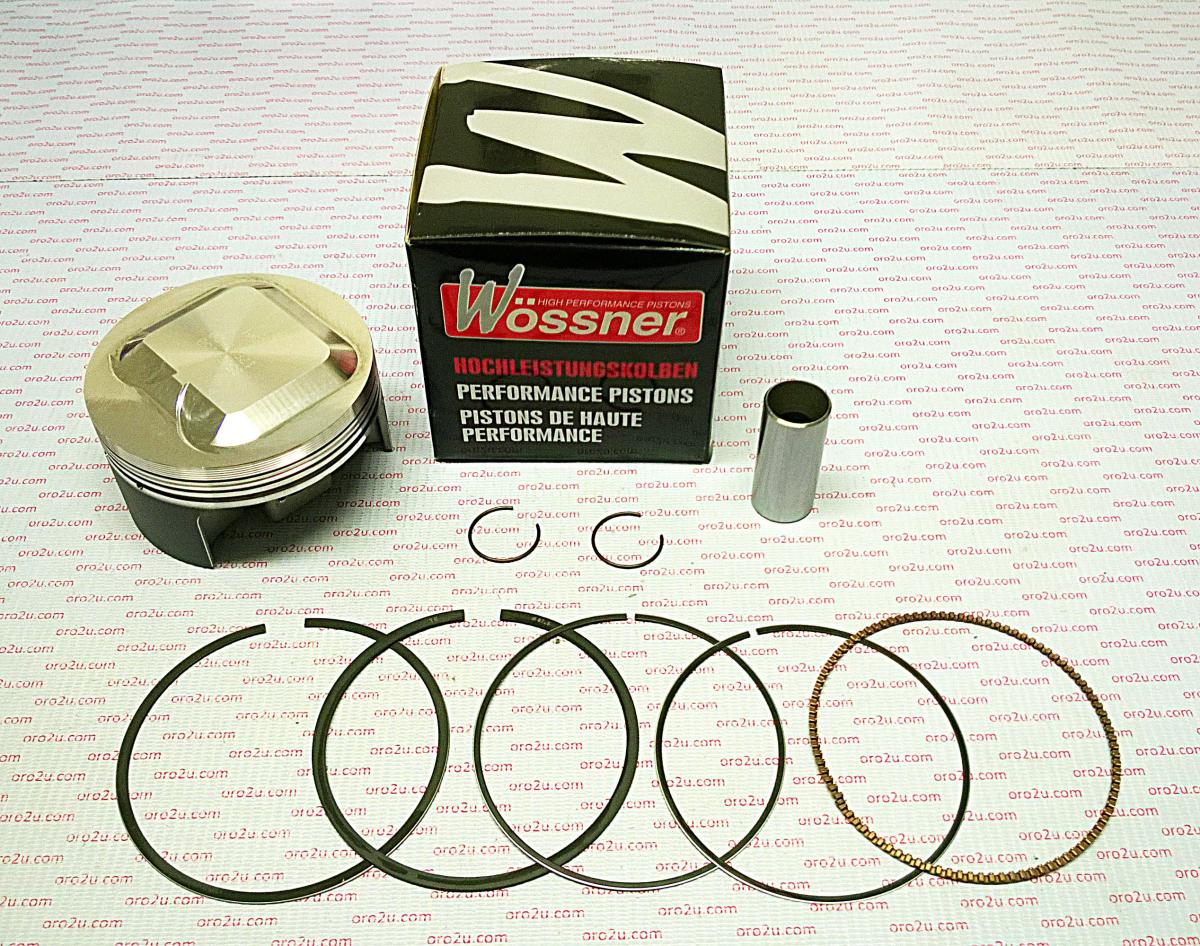

• Additional Parts:
• Lock: CW23
• Pin: WP008
• Ring Set: 975XSY
• Displacement: 564 cm³
• Hub Stroke: 62.10mm
• Clearance: 0.05mm
• Compression Ratio: OEM specified (12.80:1)
• Dome Volume: +0.90cm³
• Compression Height: 23.70mm
• Theoretical Weight: 259.00 grams

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KLR 600cc — 1984–1987
• KAWASAKI KLR 600cc — 1984–1985

Match your exact make, model, year and specification before ordering.
