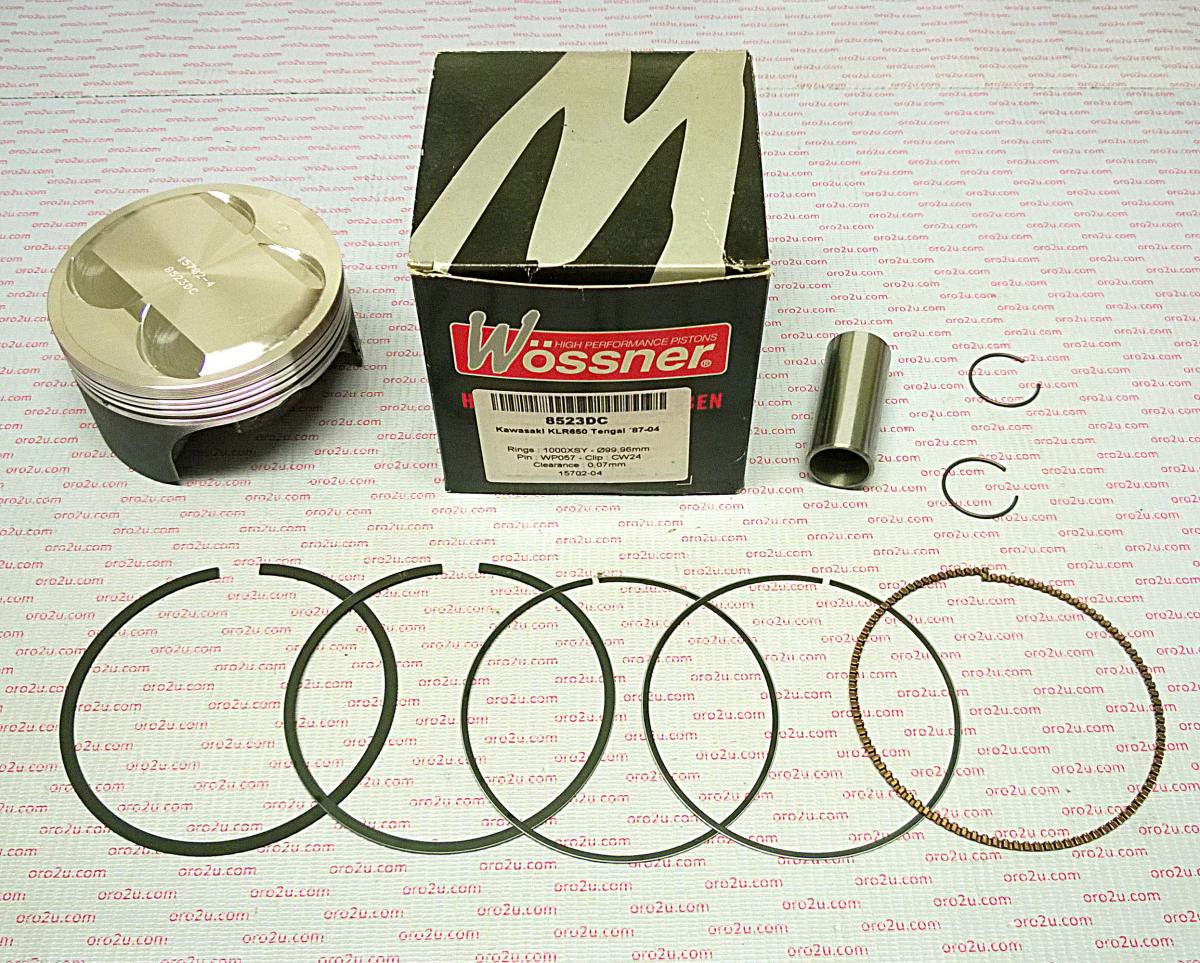

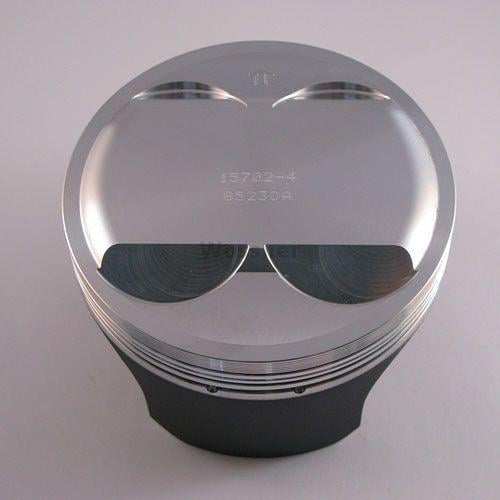

Piston Kit 87-04 KLR650 101.00, Forged Wossner 8523D100

Piston Kit 87-04 KLR650 101.00, Forged Wossner 8523D100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 87-04 KLR650 101.00, Forged Wossner 8523D100
• Part number: 56-W174_100.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 101mm (+1.00mm oversize)
• Standard size piston (PN# 8523D100)
• Lock Part Number: CW24
• Pin Part Number: WP057
• Ring Set Part Number: 1010XSY
• Displacement: 651 cm³
• Stroke: 83.00mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 11.00:1
• OEM Compression Ratio: 9.50:1
• Dome Volume: -24.90 cm³
• Compression Height: 29.50mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KLR TENGAI 650cc — 1987–2004
• KAWASAKI KLR Tengai 650cc — 1987–2007

Match your exact make, model, year and specification before ordering.
