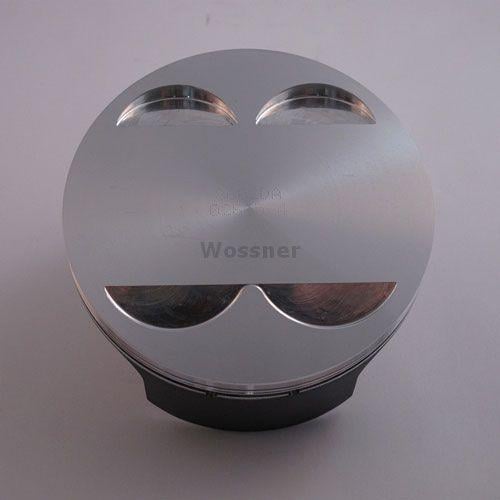

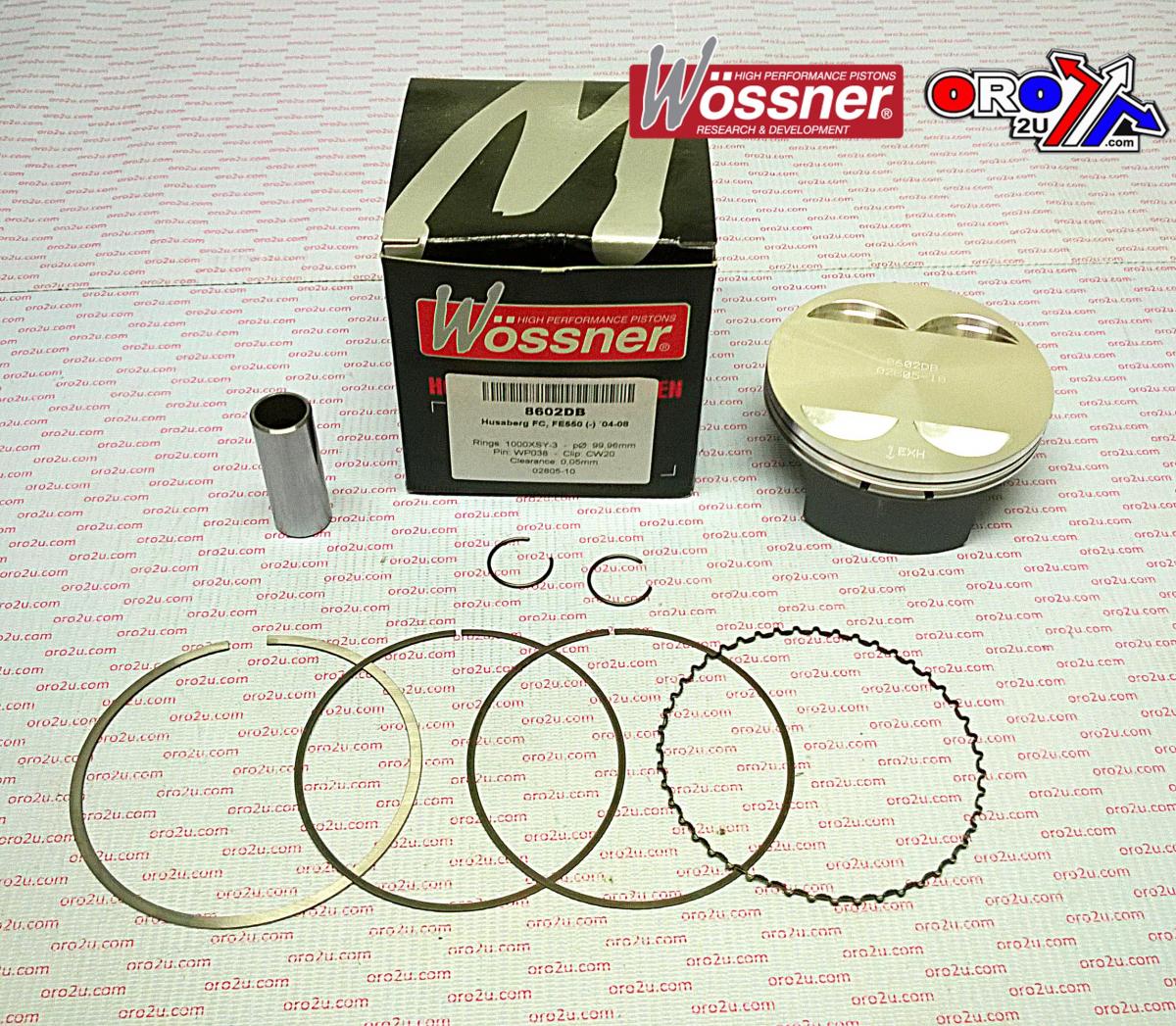

Piston Kit 04-08 Hus 550FC/FE, Wossner Husaberg 8602DB 100

Piston Kit 04-08 Hus 550FC/FE, Wossner Husaberg 8602DB 100. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 04-08 Hus 550FC/FE, Wossner Husaberg 8602DB 100
• Part number: 56-W176.B.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 100.01mm (+0.01mm oversize)
• Standard size piston (PN# 8602DB)
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 1000XSY
• Displacement: 549 cm³
• Stroke: 70.00mm
• Clearance: 0.05mm
• Wossner Compression Ratio: 12.50:1
• OEM Compression Ratio: 11.80:1
• Dome Volume: -2.30 cm³
• Compression Height: 23.40mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• HUSABERG FE 550cc — 2004–2008
• HUSABERG FC 550cc — 2004–2008

Match your exact make, model, year and specification before ordering.
