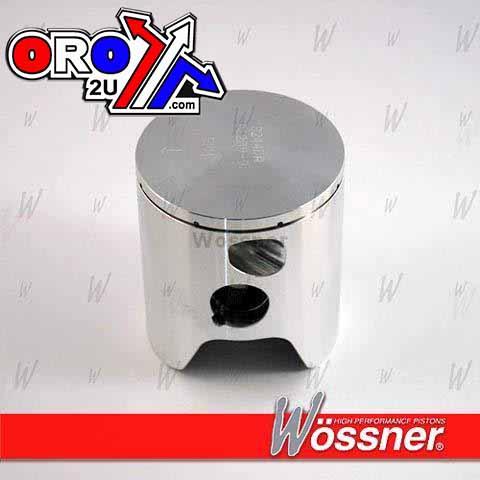

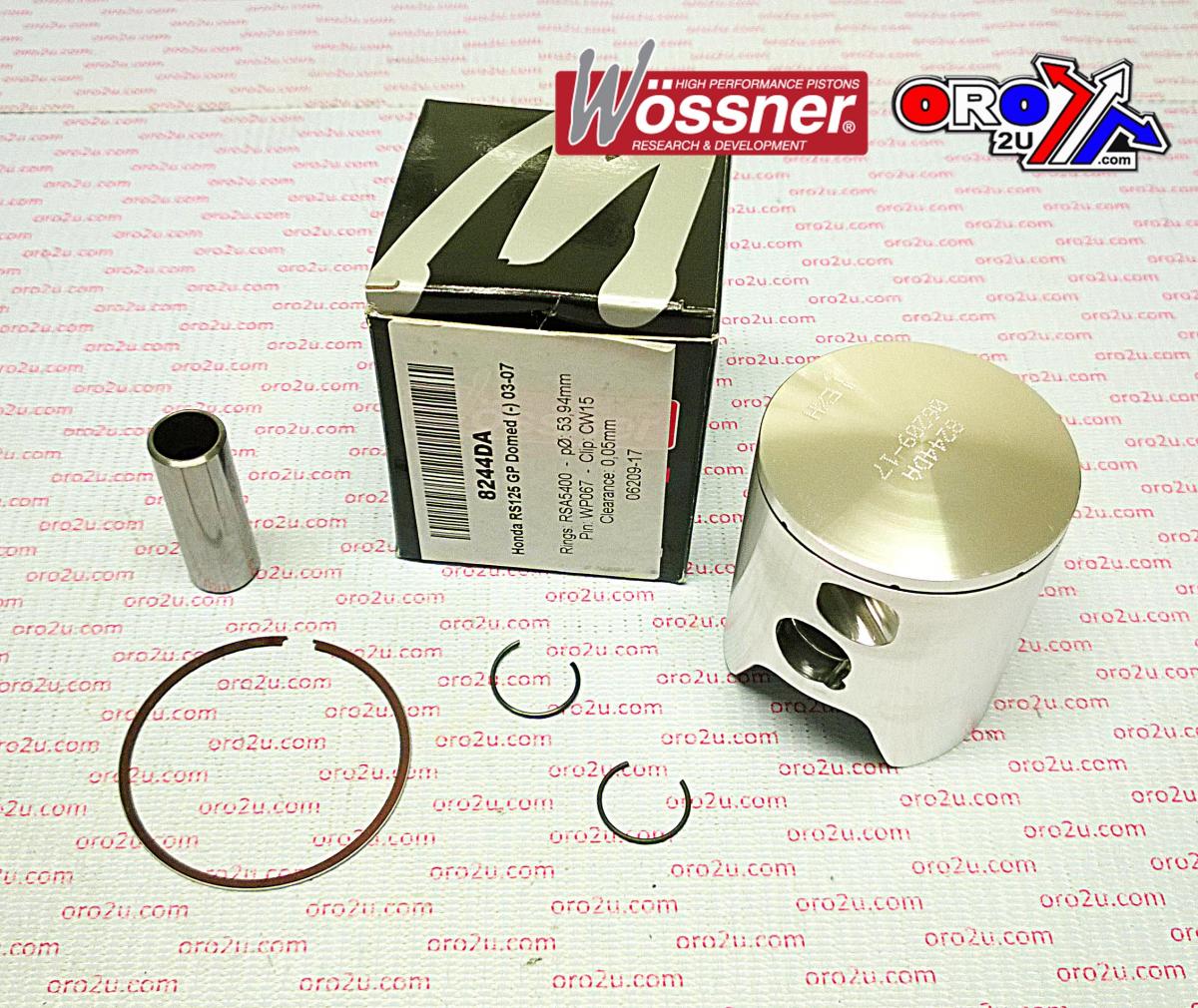

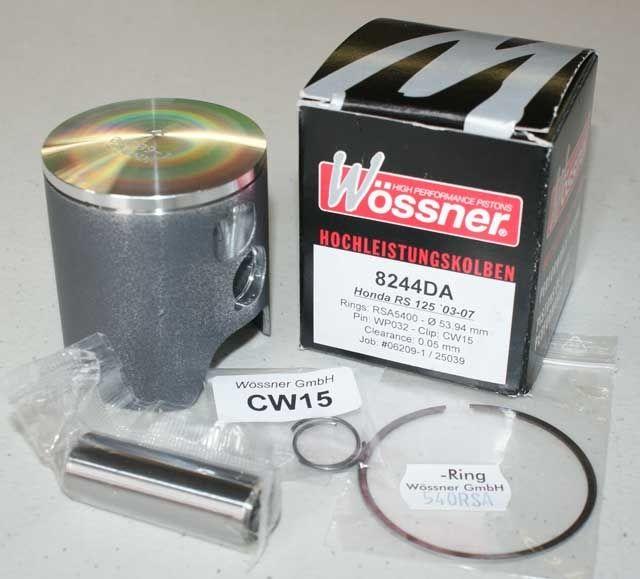

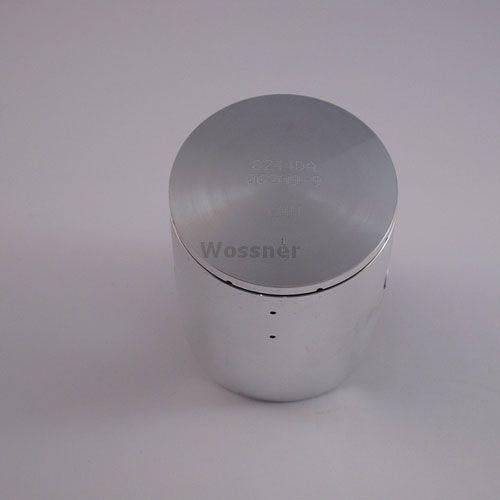

Piston Kit RS125 GP Domed 54.0 A, Forged Wossner 8244DA

Piston Kit RS125 GP Domed 54.0 A, Forged Wossner 8244DA. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit RS125 GP Domed 54.0 A, Forged Wossner 8244DA
• Part number: 56-W177.A.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 54mm
• Standard size piston (PN# 8244DA)
• Lock Part Number: CW15
• Pin Part Number: WP067
• Ring Set Part Number: RSA5400
• Displacement: 124 cm³
• Stroke: 54.50mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Dome Volume: Domed
• Compression Height: 29.00mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA RS GP DOMED 125cc — 2003–2007
• HONDA RS 125cc — 2003–2007

Match your exact make, model, year and specification before ordering.
