Piston Kit GP Domed 54.0 B RS125 03-09, Vertex 23105B GP Honda

Piston Kit GP Domed 54.0 B RS125 03-09, Vertex 23105B GP Honda. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit GP Domed 54.0 B RS125 03-09, Vertex 23105B GP Honda
• Part number: 56-W177.B.VERTEX
• Brand: Vertex
• VERTEX UK PISTON KIT FORGED - 23105B 1-RING (Distributed by www.fdyperformance.com)
• These are a good alternative to the Standard HRC pistons at a much better price

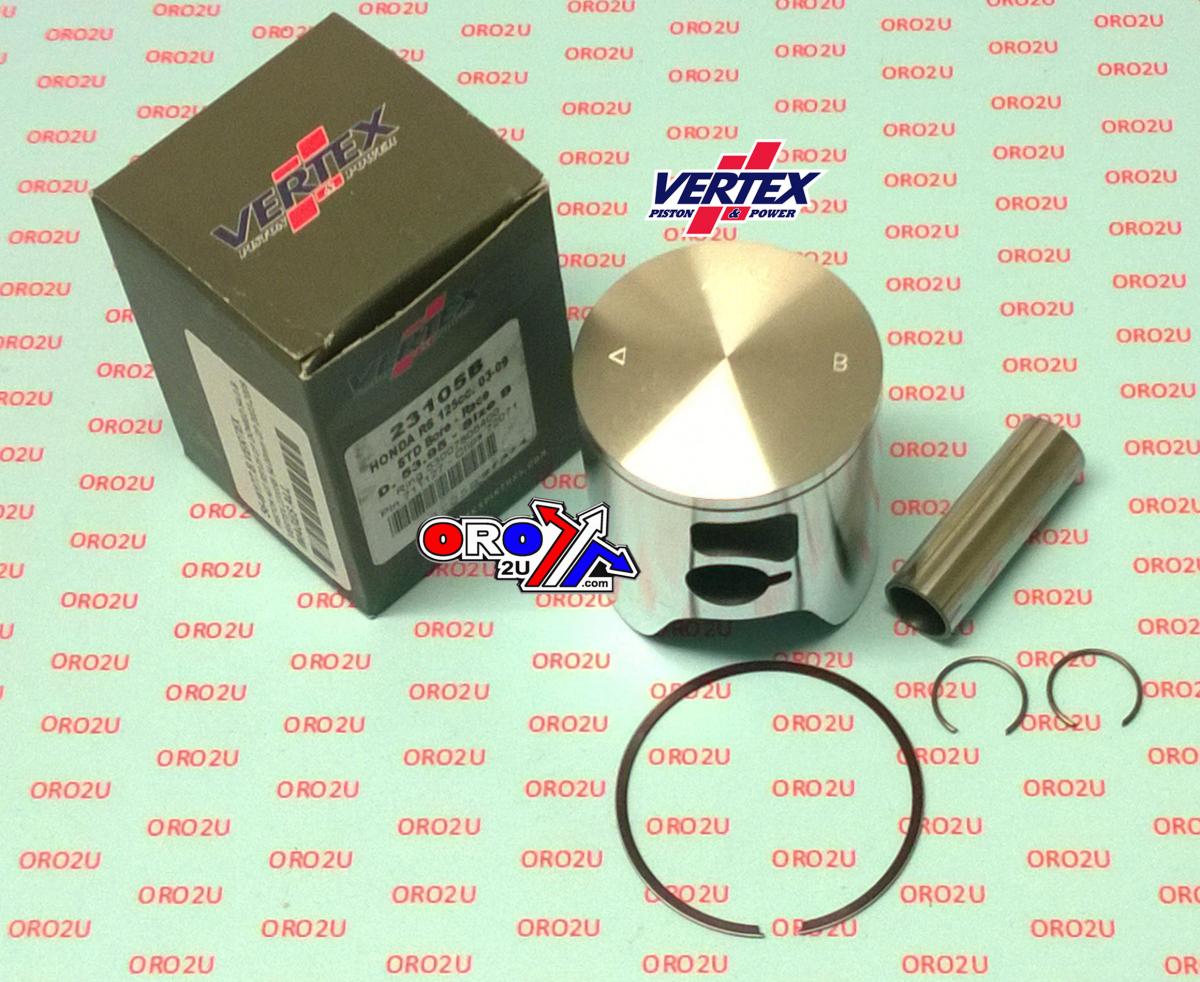

• Piston kit comes with .8mm flat ring Ring , Pin , and 2 x clips
• Its very important to prep them well , by champhering all the skirts ,and the ring groove ,as well as setting the ring gap , as the ring fits all sizes ( IE the biggest )
• Ring gap is at the back , so runs over the rear boost port , requiring good champhering of the rear port .
• I recommend the ring is changed half way through the 300 to 350 KM life of the piston , to prevent the ring locating tag breaking.
• All Vertex Pistons Feature:
• Standard pistons and components are OEM replacements.
• Kits include piston, rings, wrist pin and circlips.
• All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
• Replacement rings are sold individually.
• Made in Italy.
• Fitted in many oem bikes as STD.
• SPECIFICATION:
• BORE SIZE. 54.00mm [B 53.95mm]
• Replacement Parts.
• Rings. 53007805400 Need 1,
• Pin. 711127,
• Clips. 72071,
• MODEL FITMENT:

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA RS 125cc — 2003–2007

Match your exact make, model, year and specification before ordering.
