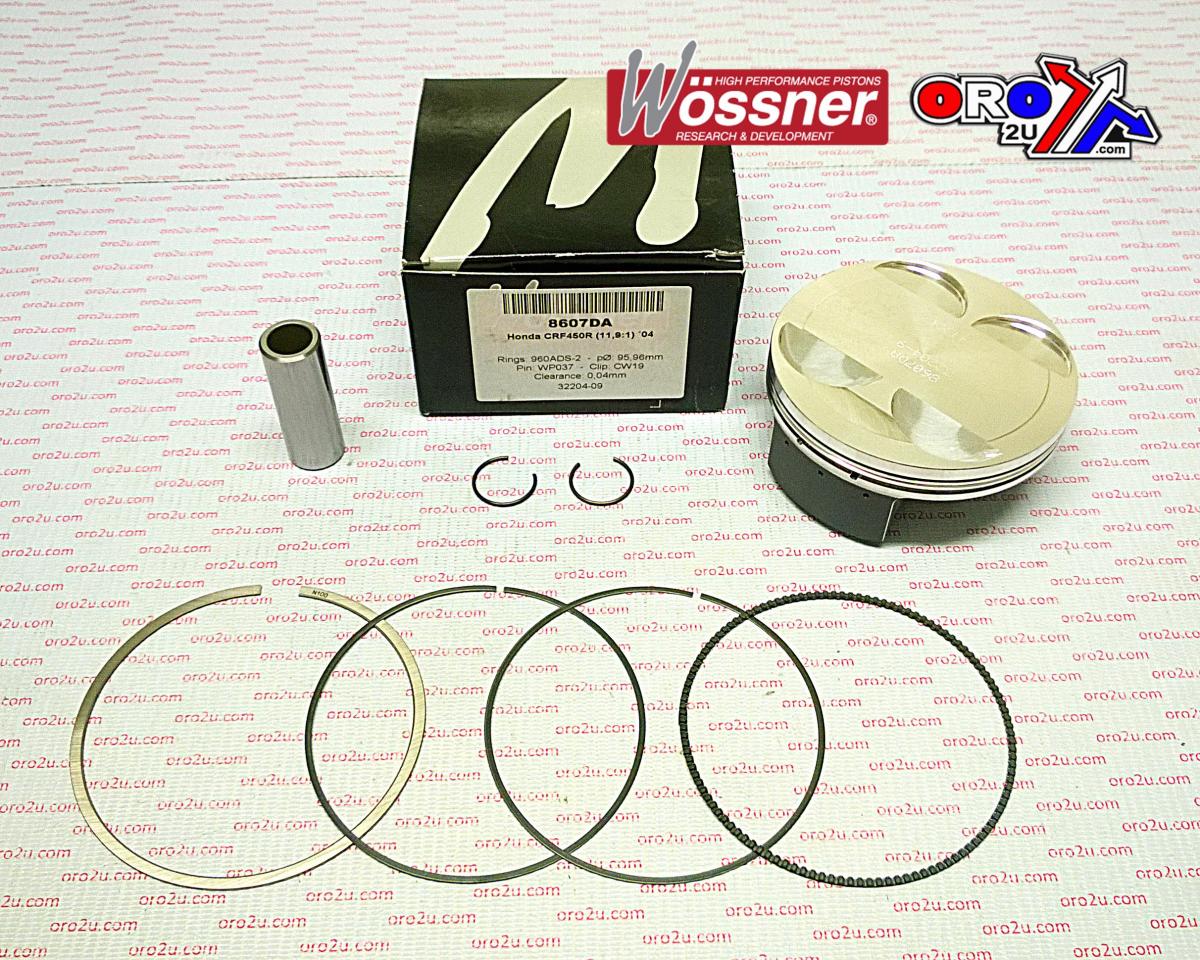

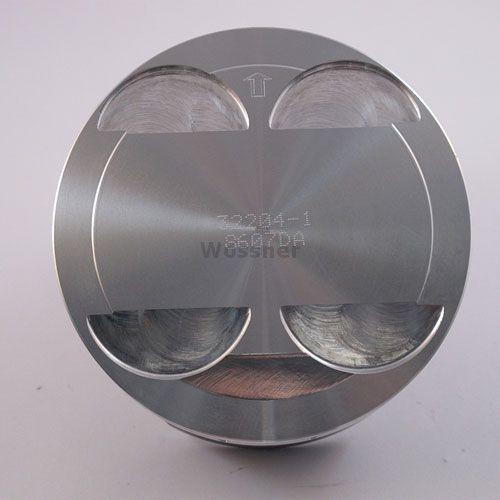

Piston Kit 2004 CRF450 96mm, Forged Wossner Kit 8607DB

Piston Kit 2004 CRF450 96mm, Forged Wossner Kit 8607DB. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 2004 CRF450 96mm, Forged Wossner Kit 8607DB
• Part number: 56-W182.B
• Brand: Wossner
• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 96.01mm (+0.01mm oversize)
• Standard size piston (PN# 8607DB)
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 960ADS-2
• Rod Part Number: P4026
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 11.90:1
• Dome Volume: -1.70 cm³
• Compression Height: 24.00mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 450cc — 2004

Match your exact make, model, year and specification before ordering.
