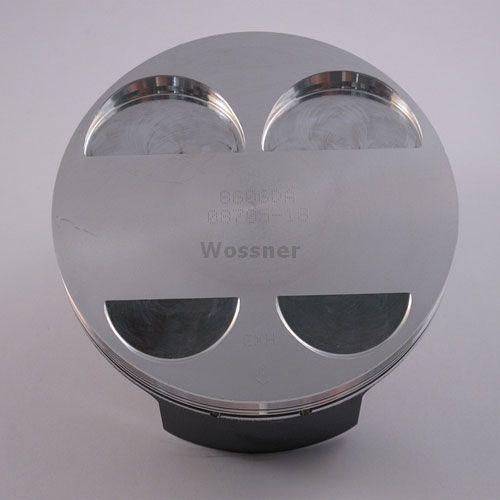

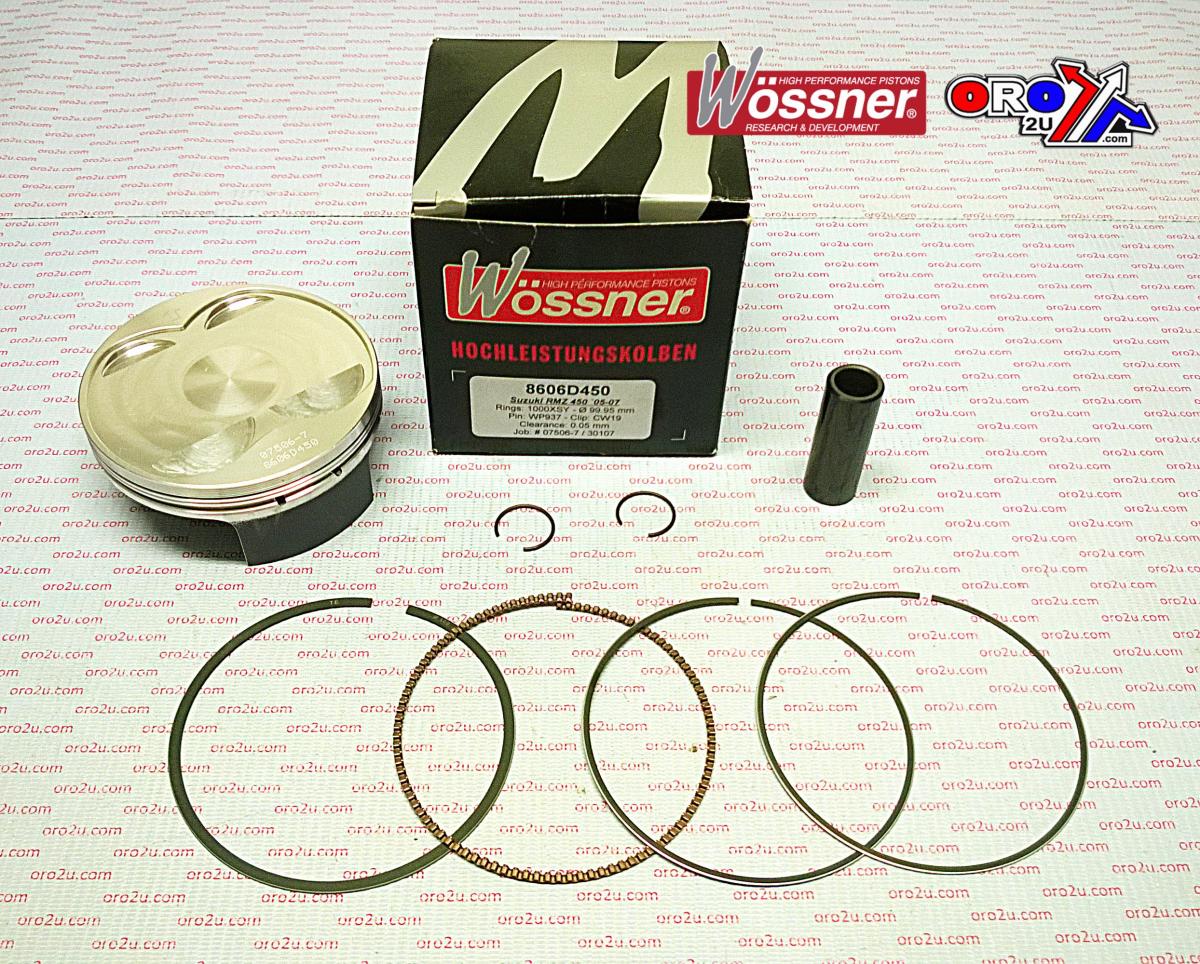

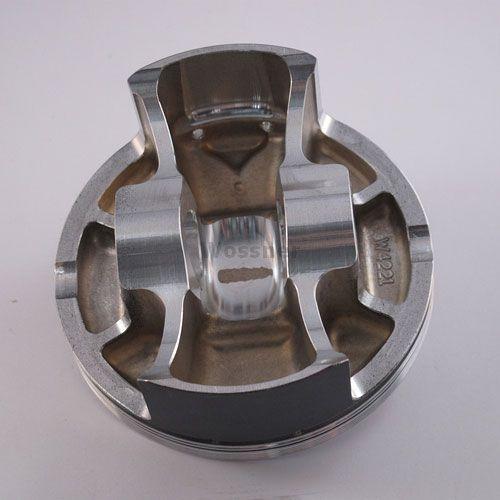

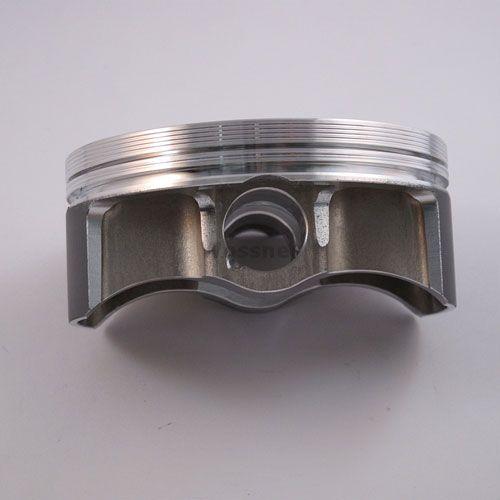

Piston Kit 05-07 RMZ450 95.50, Forged Wossner 8606DA, 12111-35G01-0F0

Piston Kit 05-07 RMZ450 95.50, Forged Wossner 8606DA, 12111-35G01-0F0. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 05-07 RMZ450 95.50, Forged Wossner 8606DA, 12111-35G01-0F0
• Part number: 56-W185.P0.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 96mm
• Standard size piston (PN# 8606DA)
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 955XSY
• Displacement: 449 cm³
• Stroke: 62.60mm
• Clearance: 0.04mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.00:1
• Dome Volume: -3.10 cm³
• Compression Height: 22.30mm
• Cross-Reference OEM Part Numbers
• 12111-35G01-0F0

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM Z 450cc — 2005–2007

Match your exact make, model, year and specification before ordering.
