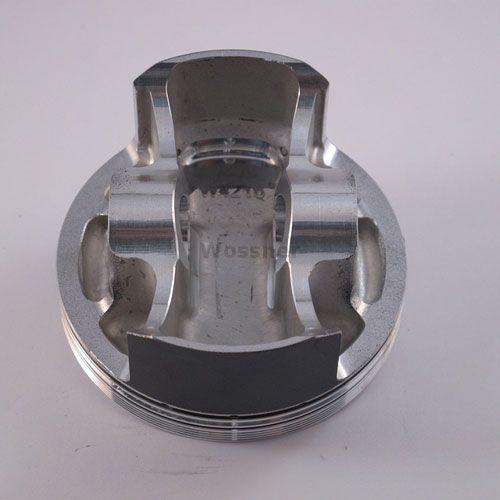

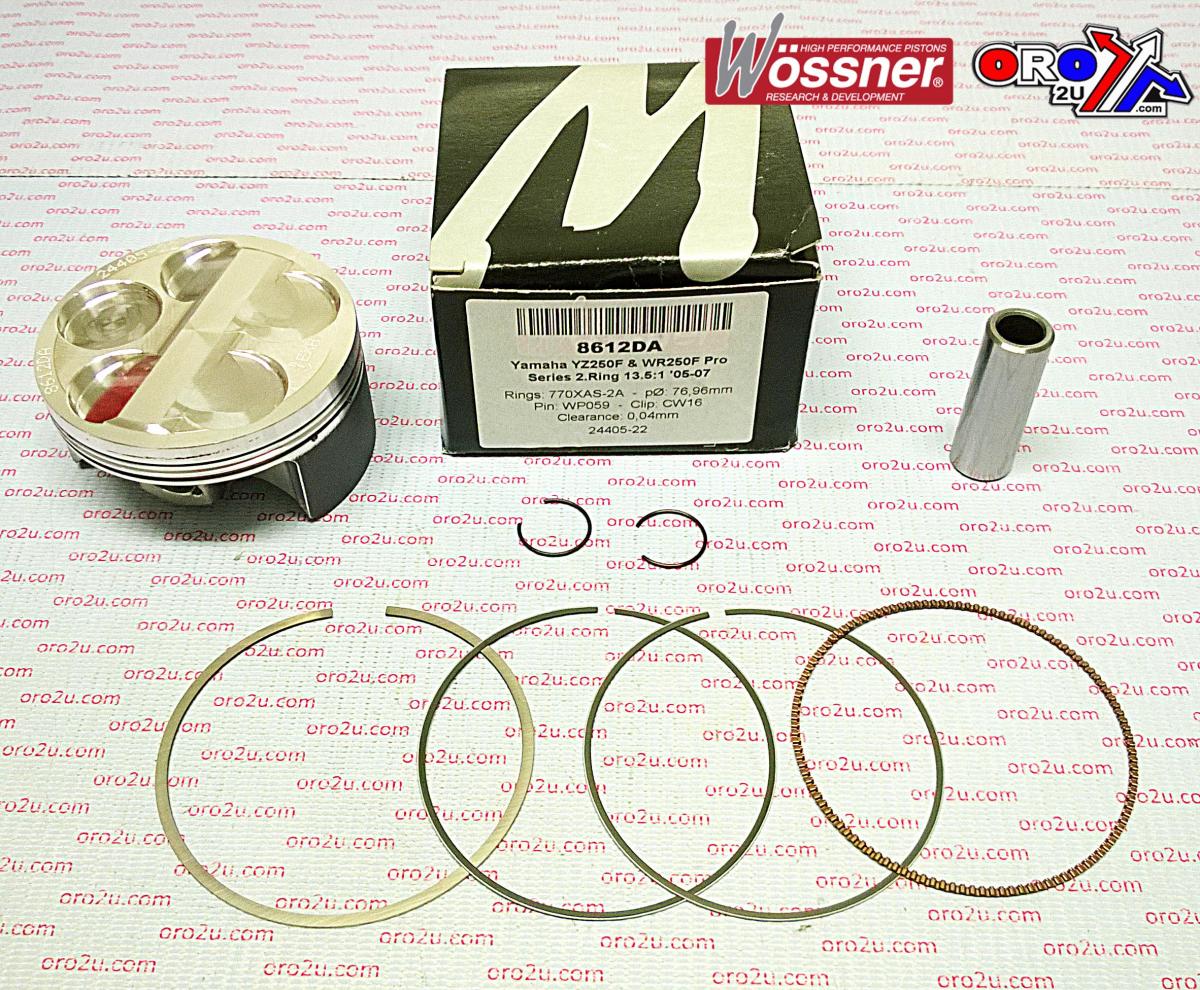

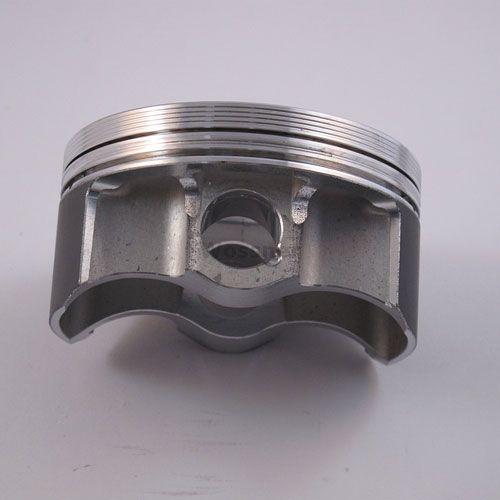

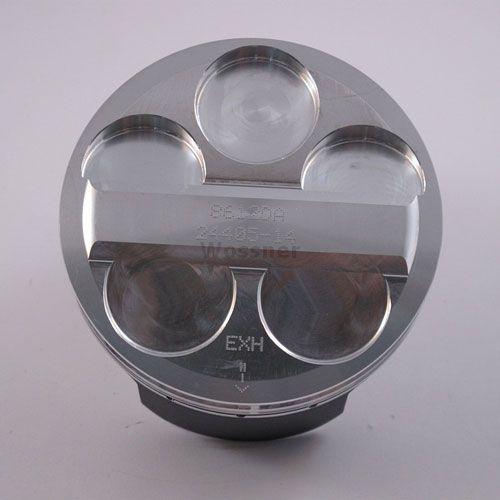

Piston Kit 05-07 YZF250 80.00, Wossner 8612D300 2-RING

Piston Kit 05-07 YZF250 80.00, Wossner 8612D300 2-RING. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 05-07 YZF250 80.00, Wossner 8612D300 2-RING
• Part number: 56-W188_300.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Two-ring design for performance and durability
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 80mm (+3.00mm oversize)
• Standard size piston (PN# 8612D300)
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 800XDS
• Displacement: 249 cm³
• Stroke: 53.6mm
• Clearance: 0.04mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.50:1
• Dome Volume: -2.80 cm³
• Compression Height: 22.20mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• GAS-GAS EC F 250cc — 2010–2015
• YAMAHA WRF 250cc — 2001–2013
• YAMAHA YZ F 250cc — 2005–2007
• YAMAHA WRF 250cc — 2005–2013
• YAMAHA WR F 250cc — 2005–2013
• YAMAHA YZF 250cc — 2001–2007
• YAMAHA YZF 250cc — 2005–2007
• YAMAHA YZF 250cc — 2001–2003

Match your exact make, model, year and specification before ordering.
