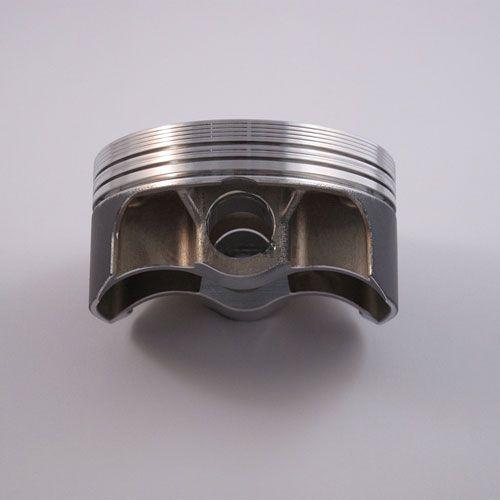

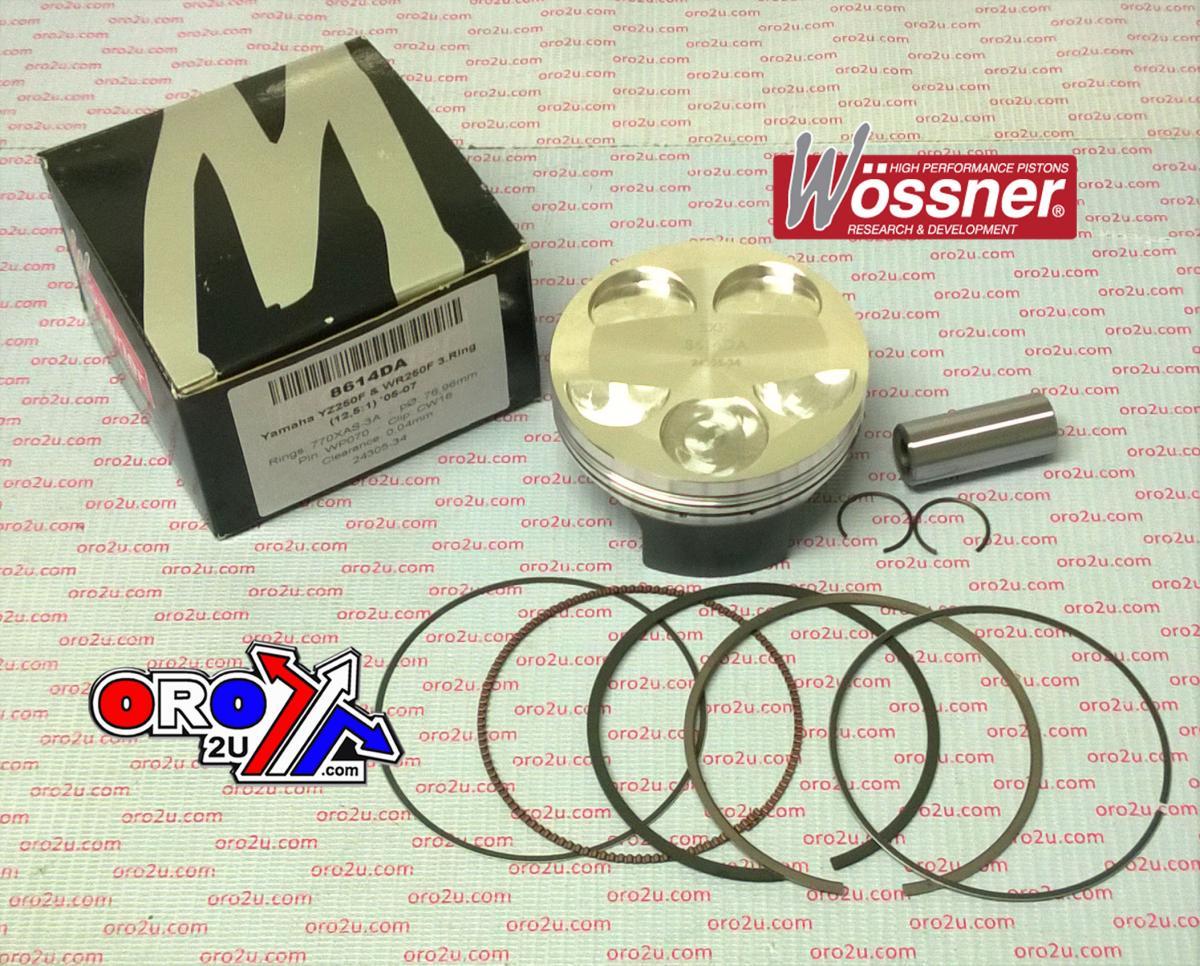

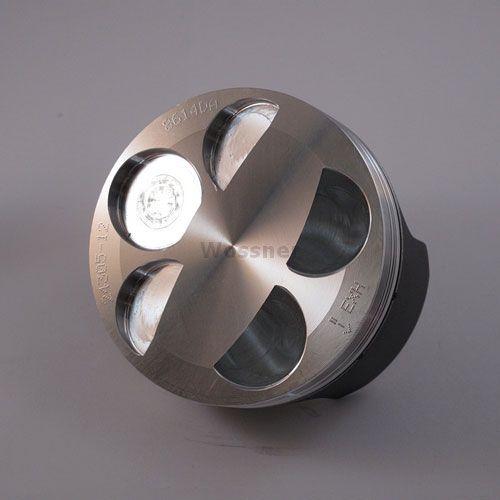

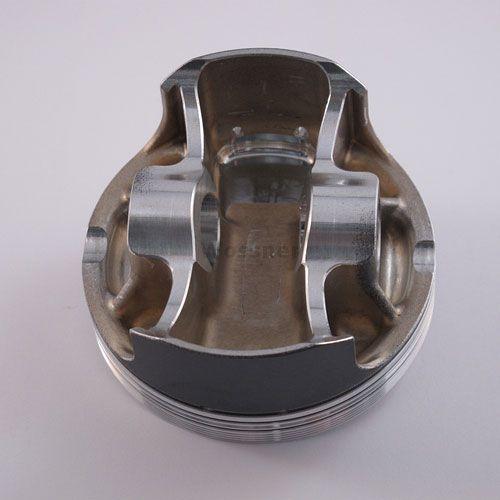

Piston Kit 05-07 YZF250 77mm, Wossner 8614DB 3-RING

Piston Kit 05-07 YZF250 77mm, Wossner 8614DB 3-RING. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 05-07 YZF250 77mm, Wossner 8614DB 3-RING
• Part number: 56-W189+00B.WO
• Brand: Wossner
• Forged piston for superior strength and design
• Three-ring design for enhanced sealing and durability
• Optimized heat transfer to cylinder walls
• Elliptical design for uniform bearing surface and even thrust load distribution
• Manufactured in Germany
• Bore: 77.01mm (+0.01mm oversize)
• Standard size piston (PN# 8614DB)
• Lock Part Number: CW16
• Pin Part Number: WP059
• Ring Set Part Number: 770XAS
• Displacement: 249 cm³
• Stroke: 53.6mm
• Clearance: 0.04mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.50:1
• Dome Volume: -4.50 cm³
• Compression Height: 22.20mm
• Cross-Reference OEM Part Numbers
• Not provided

Vehicle fitment

Applications listed in the supplier fitment data:

• GAS-GAS EC F 250cc — 2010–2015
• YAMAHA WRF 250cc — 2005–2013
• YAMAHA YZF 250cc — 2005–2007
• YAMAHA WRF 250cc — 2005–2007

Match your exact make, model, year and specification before ordering.
