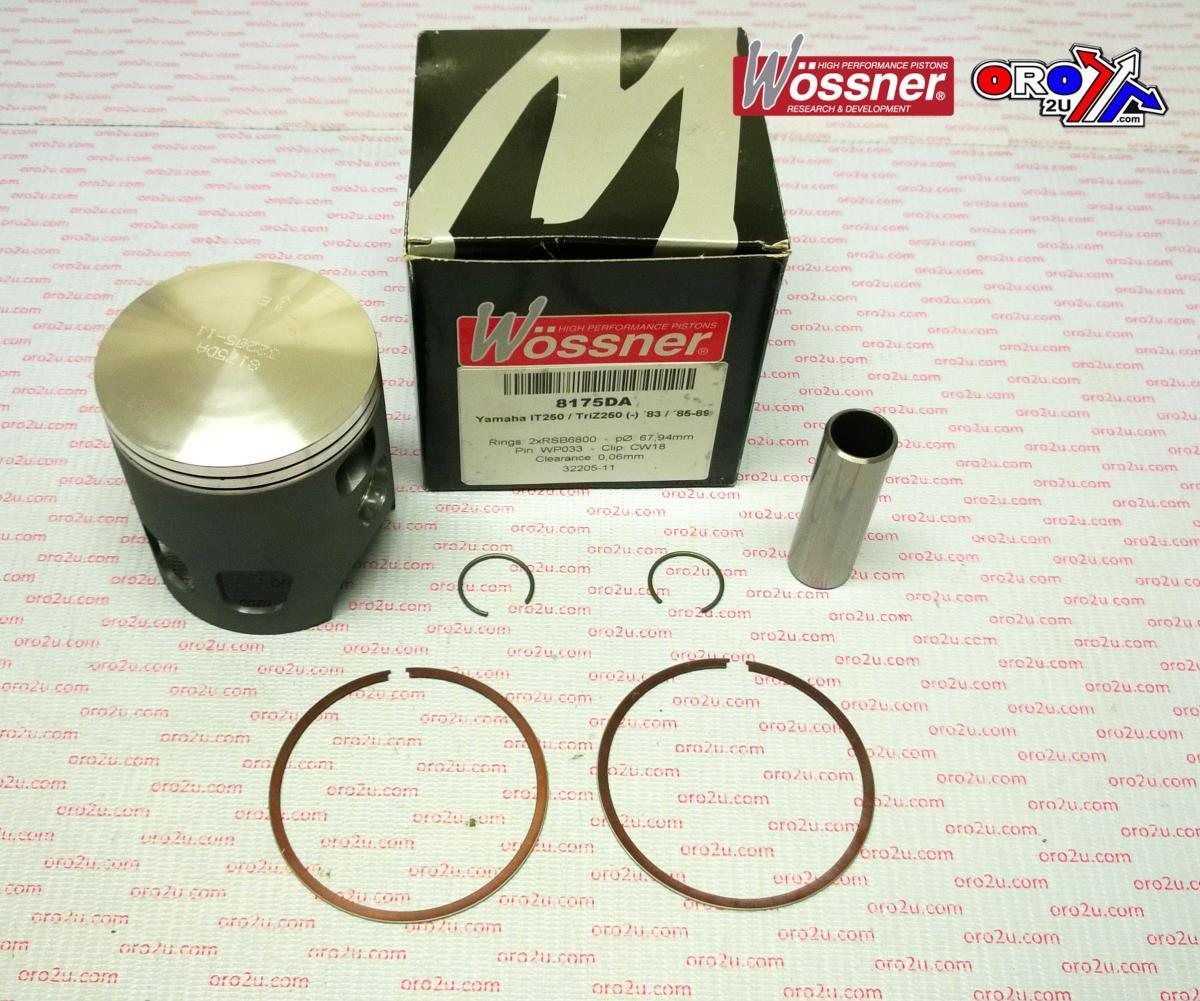

Piston Kit 1983 IT250 68.50, Forged Wossner 8175D050

Piston Kit 1983 IT250 68.50, Forged Wossner 8175D050. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 1983 IT250 68.50, Forged Wossner 8175D050
• Part number: 56-W196+050.WO
• Brand: Wossner
• Piston Kit 68.50mm Bore 68.44 Wossner 8175D050 (+0.50)
• Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.
• Lock P/N: CW18
• Pin P/N: WP033
• Ring Set P/N: RSB6850 x 2
• Display (cm3): 246
• Hub Stroke (mm): 68.00
• Clearance (mm): 0.06
• Wossner Compression Ratio: 2 Stroke
• OEM Compression Ratio: 2 Stroke
• Dome Volume (cm3):
• Compression Height (mm): 35.80
• Theoretical Weight (G):

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA IT 250cc — 1983

Match your exact make, model, year and specification before ordering.
