Piston Kit 05 YZF/WR450F 95.00, Wossner 8613DB

Piston Kit 05 YZF/WR450F 95.00, Wossner 8613DB. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 05 YZF/WR450F 95.00, Wossner 8613DB
• Part number: 56-W201.B.WO
• Brand: Wossner

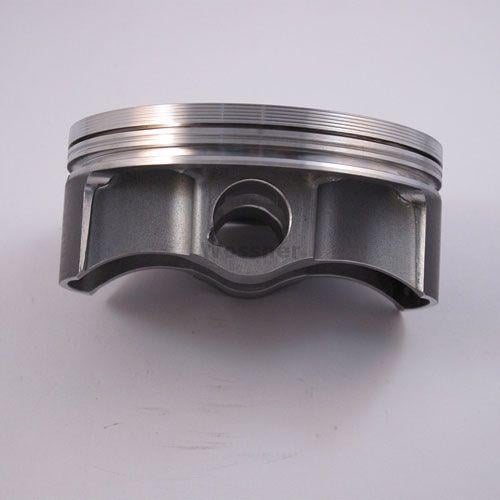

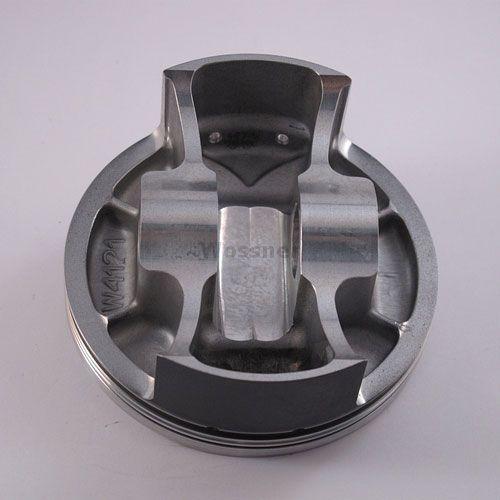

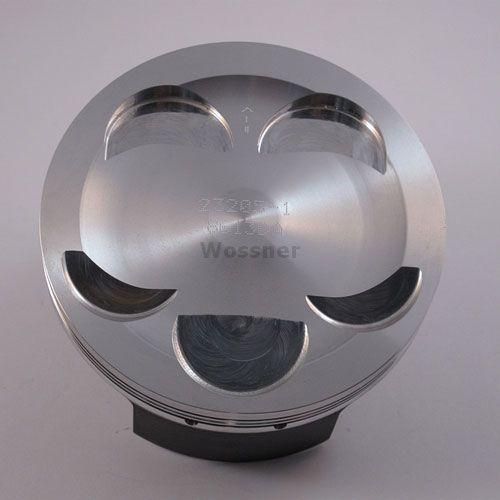

• Wossner forged piston kit designed for high performance and durability. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.
• High-compression forged piston for enhanced performance
• Optimized heat transfer for efficient combustion
• Elliptical design to prevent piston collapse
• Manufactured in Germany
• Bore Size: 95.01mm
• Actual Bore Diameter: 94.96mm
• Displacement: 449 cm³
• Stroke: 63.40mm
• Clearance: 0.05mm
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.30:1
• Dome Volume: -10.30 cm³
• Compression Height: 23.50mm
• Theoretical Weight: Not specified

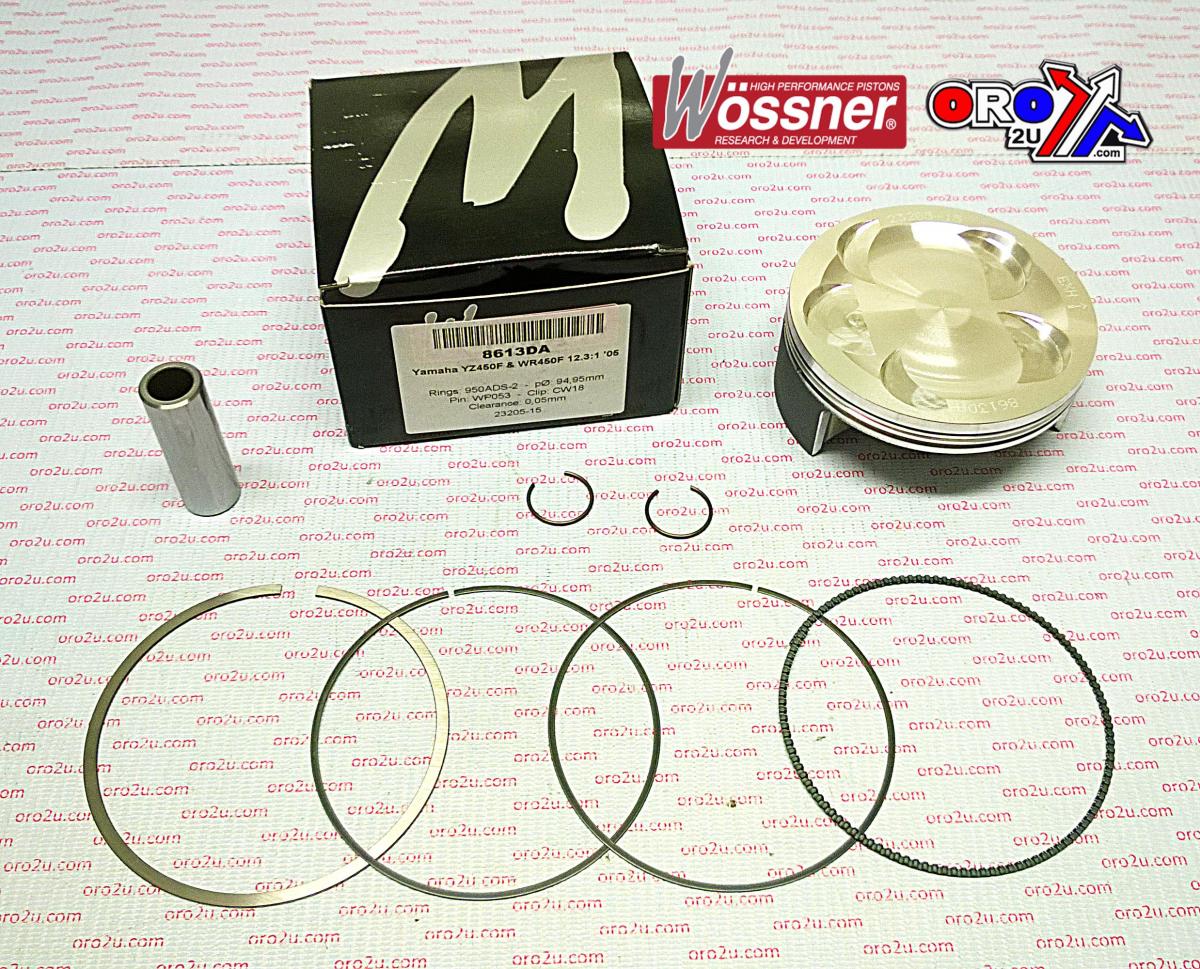

• Included Components
• Lock Part Number: CW18
• Pin Part Number: WP053
• Ring Set Part Number: 950ADS-2

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZF 450cc — 2005
• YAMAHA WRF 450cc — 2005

Match your exact make, model, year and specification before ordering.
