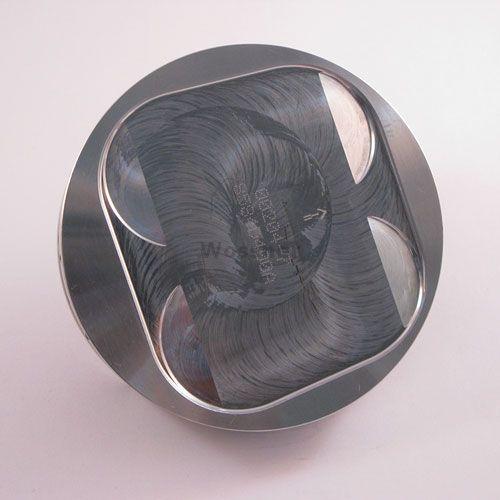

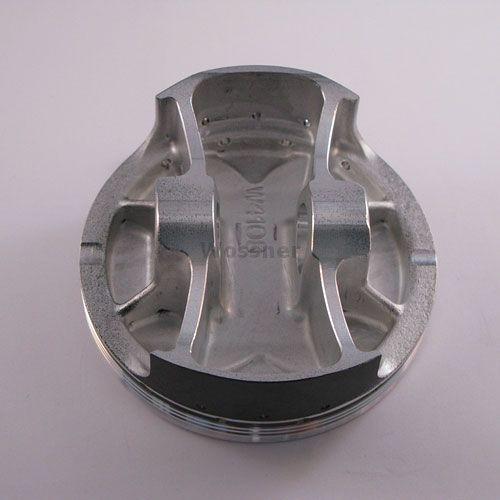

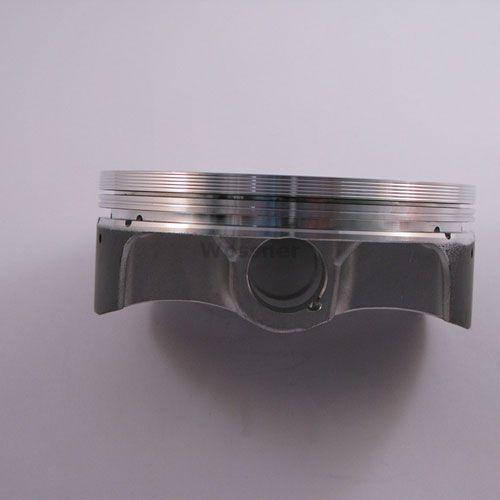

Piston Kit 02-08 CRF450 100mm, Wossner 8584D400A Big Bore

Piston Kit 02-08 CRF450 100mm, Wossner 8584D400A Big Bore. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 02-08 CRF450 100mm, Wossner 8584D400A Big Bore
• Part number: 56-W205.A.WO
• Brand: Wossner
• Wossner forged piston kit designed for high-performance big bore applications. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.
• Big bore forged piston for increased displacement
• Optimized heat transfer for efficient combustion
• Elliptical design to prevent piston collapse
• Manufactured in Germany
• Bore Size: 100.00mm
• Actual Bore Diameter: 99.96mm
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 11.80:1
• OEM Compression Ratio: 11.50:1
• Dome Volume: -6.50 cm³
• Compression Height: 24.00mm
• Theoretical Weight: Not specified

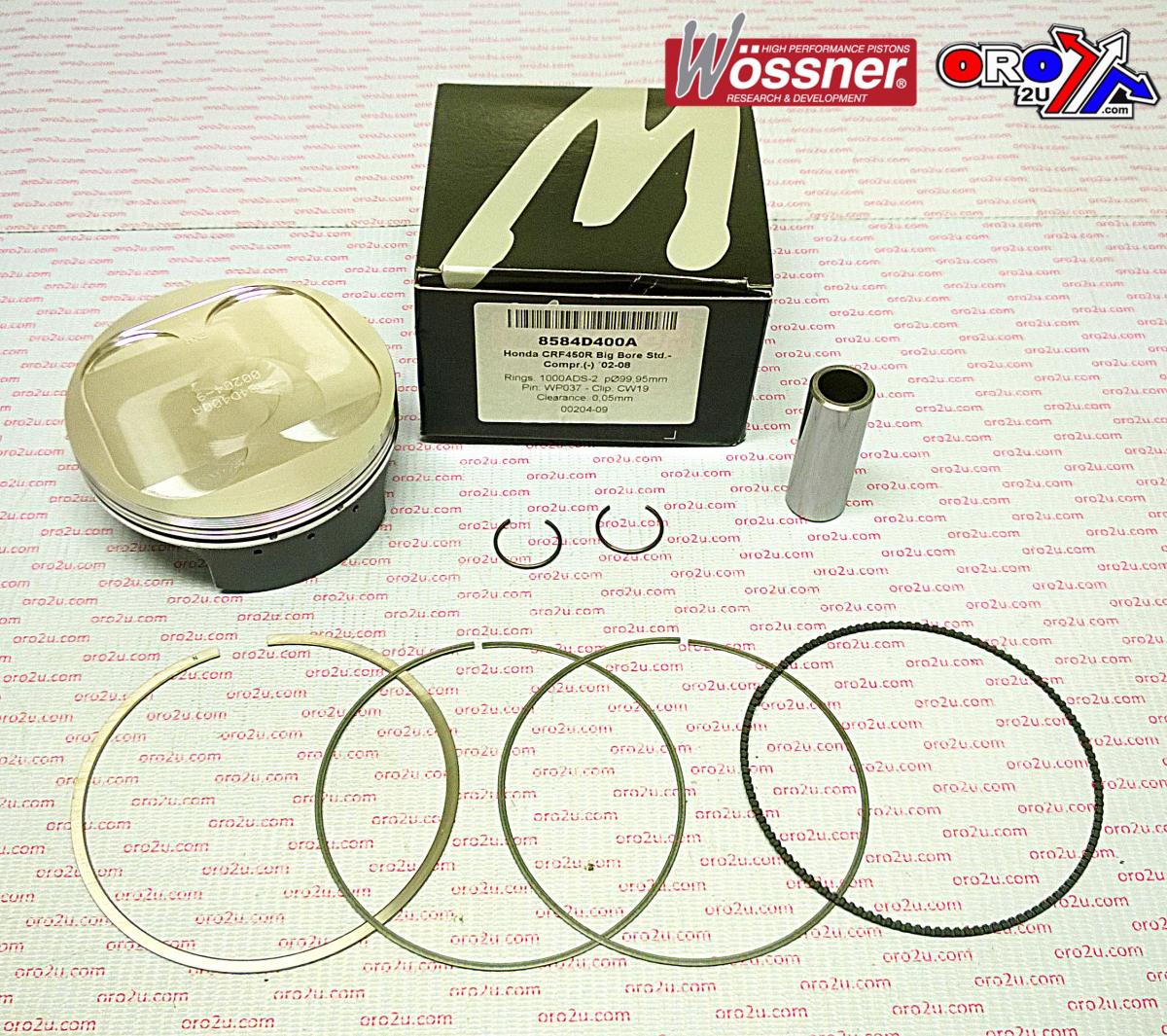

• Included Components
• Gasket Part Number: D4006 / D4007
• Lock Part Number: CW19
• Pin Part Number: WP037
• Ring Set Part Number: 1000ADS-2
• Rod Part Number: P4026

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 450cc — 2002–2006
• HONDA XR 400cc — 1996–2004
• HONDA CRF R 450cc — 2002–2008
• KAWASAKI KLX 400cc — 2003–2006
• HONDA CRF R 450cc — 2007–2008
• HONDA CRM F R 450cc — 2007
• HONDA CRE F R 450cc — 2007

Match your exact make, model, year and specification before ordering.
