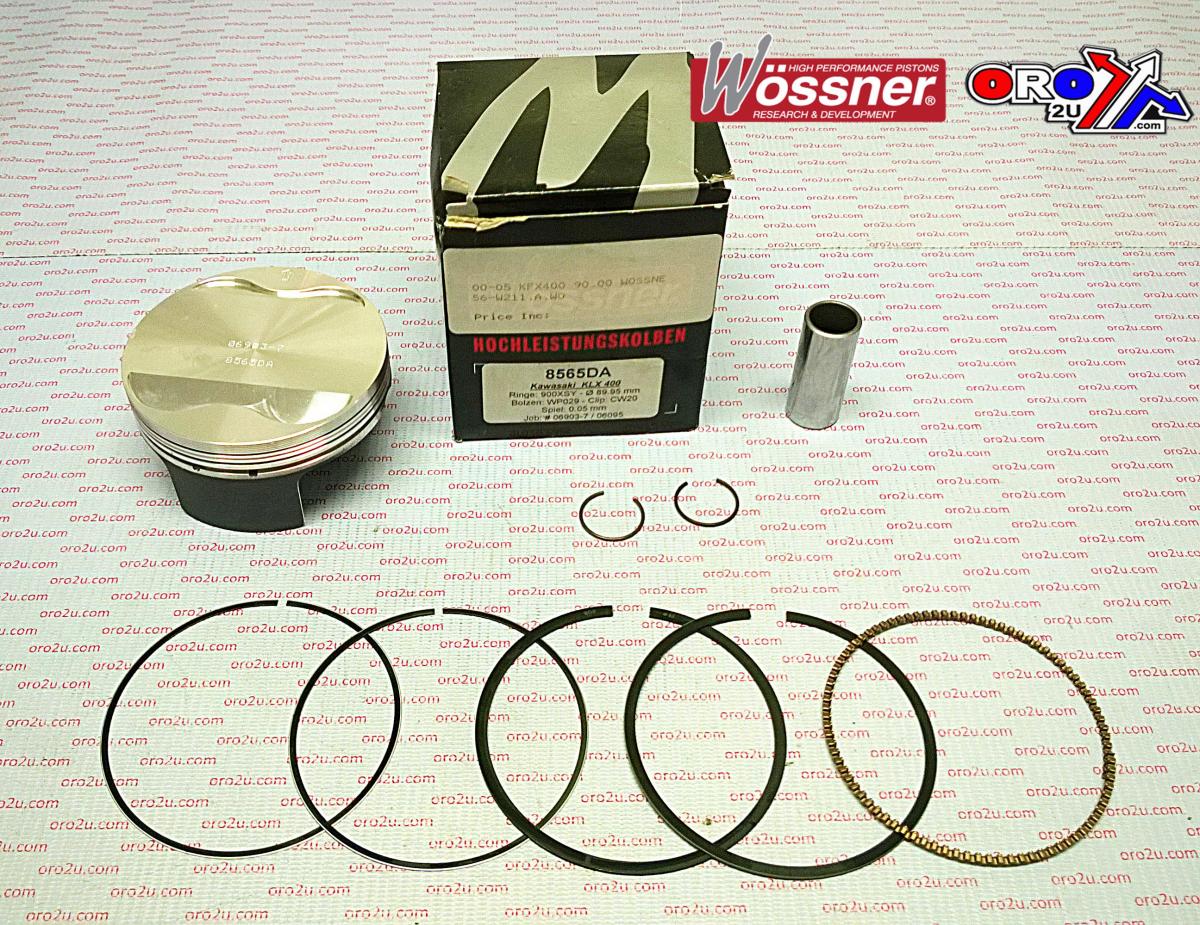

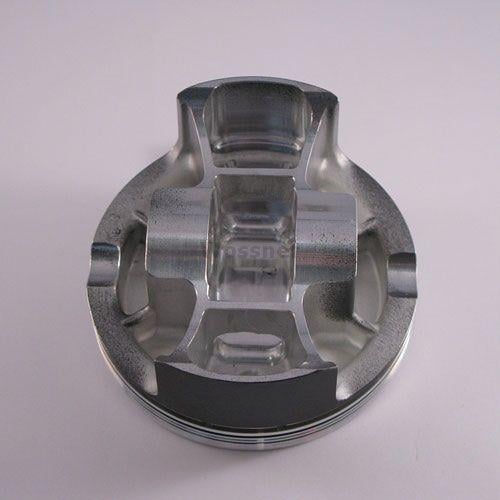

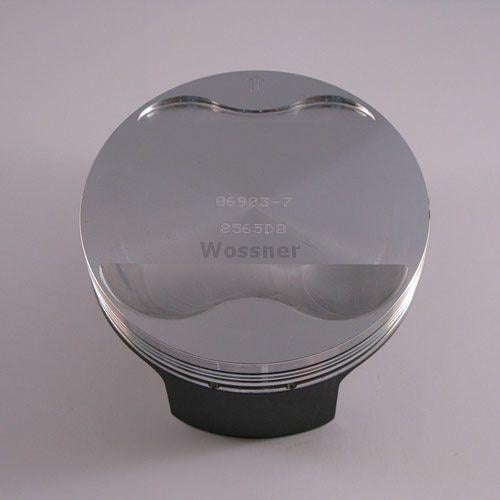

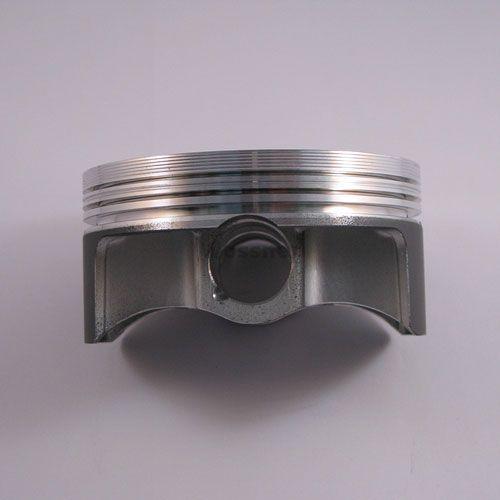

Piston Kit 03-06 KLX400 90.00, Forged Wossner 8565DC

Piston Kit 03-06 KLX400 90.00, Forged Wossner 8565DC. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 03-06 KLX400 90.00, Forged Wossner 8565DC
• Part number: 56-W211+00C.WO
• Brand: Wossner
• Piston Kit 90.02mm Bore 89.96 Wossner 8565DC (+0.02)
• Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.
• Lock P/N: CW20
• Pin P/N: WP029
• Ring Set P/N: 900XSY
• Rod P/N: P4009
• Display (cm3): 398
• Hub Stroke (mm): 62.60
• Clearance (mm): 0.06
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 12.20:1
• Dome Volume (cm3): -2.00
• Compression Height (mm): 25.30
• Theoretical Weight (G): 250.00

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KLX 400cc — 2003–2006

Match your exact make, model, year and specification before ordering.
