Piston Kit 98-01 KTM LC4 400 89.00, Wossner 8636DA Hc 57530007000

Piston Kit 98-01 KTM LC4 400 89.00, Wossner 8636DA Hc 57530007000. Find the product specifications and compatibility information below.

Product details

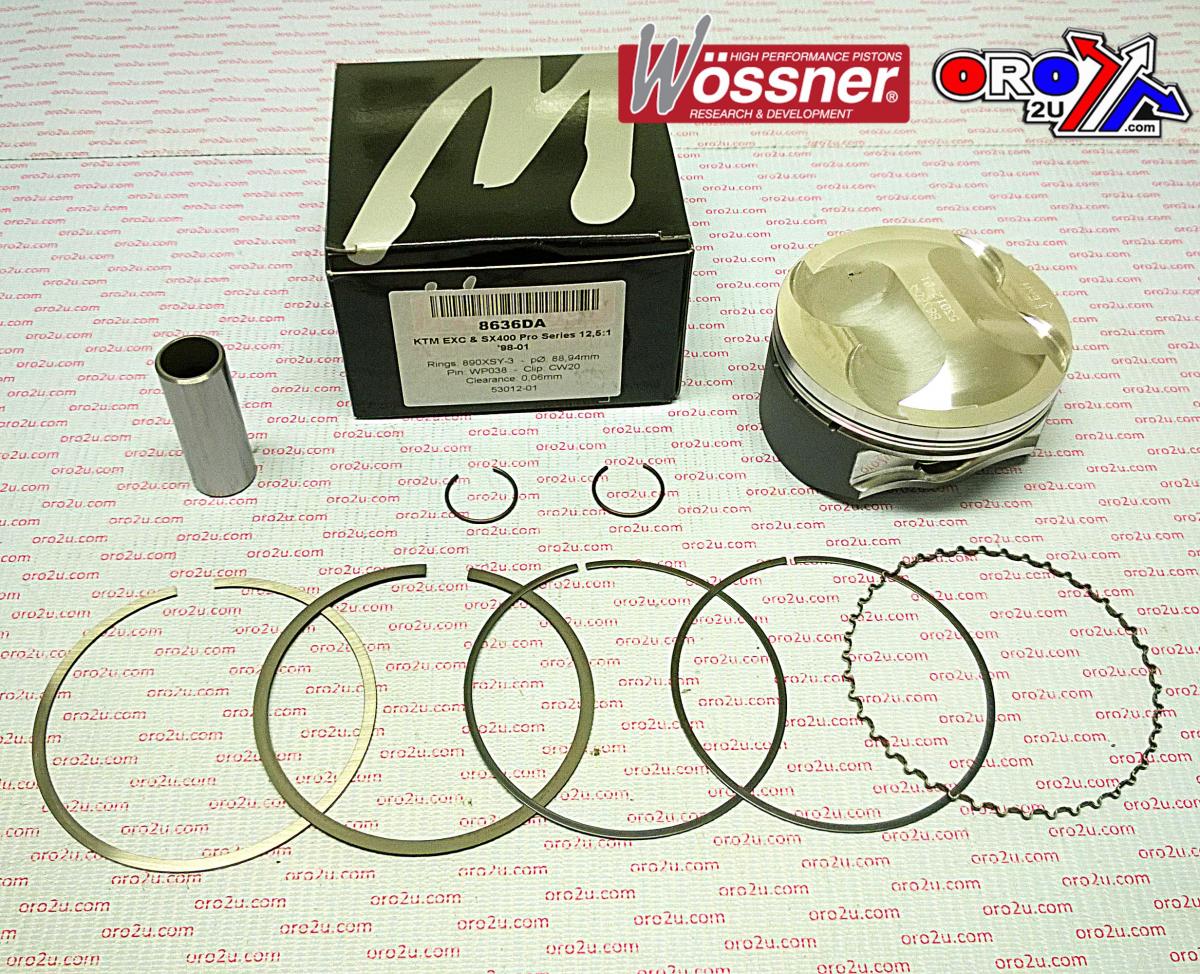

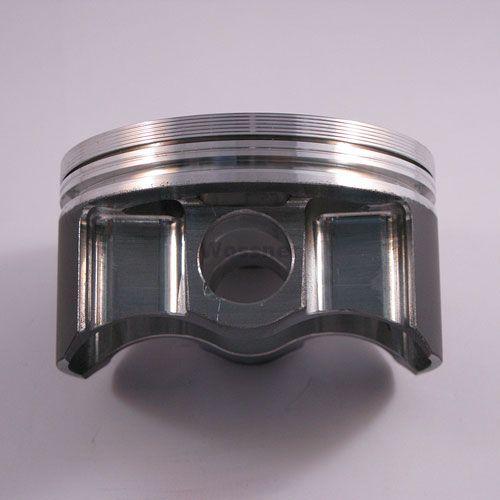

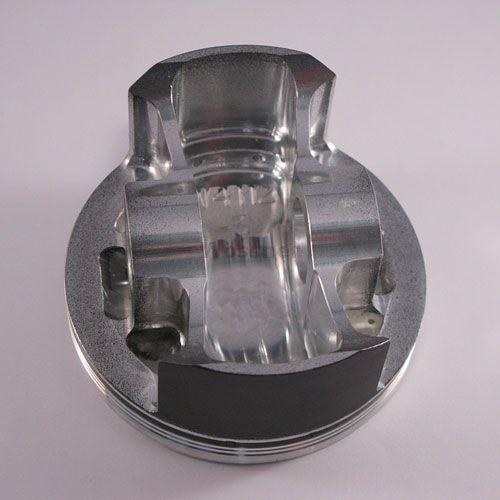

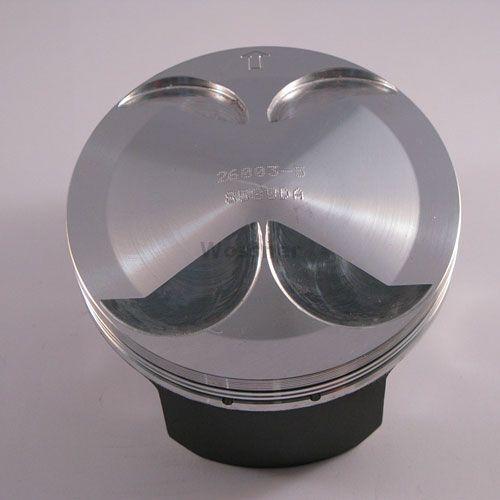

• Product: Piston Kit 98-01 KTM LC4 400 89.00, Wossner 8636DA Hc 57530007000
• Part number: 56-W215.00A.WO
• Brand: Wossner
• High-compression Pro Series piston
• Forged for increased strength and durability
• Optimized heat transfer for efficient combustion chamber performance
• Elliptical design for even thrust load distribution and reduced piston collapse
• Manufactured in Germany
• Bore Size: 89.00mm
• Actual Bore Diameter: 88.94mm
• Displacement: 398 cm³
• Stroke: 64.00mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 12.50:1
• OEM Compression Ratio: 11.00:1
• Dome Volume: +12.20 cm³
• Compression Height: 27.50mm
• Lock Part Number: CW20
• Pin Part Number: WP038
• Ring Set Part Number: 890XSY
• Cross-Reference OEM Part Numbers
• 57530007000

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM LC4 400cc — 1998–2001

Match your exact make, model, year and specification before ordering.
