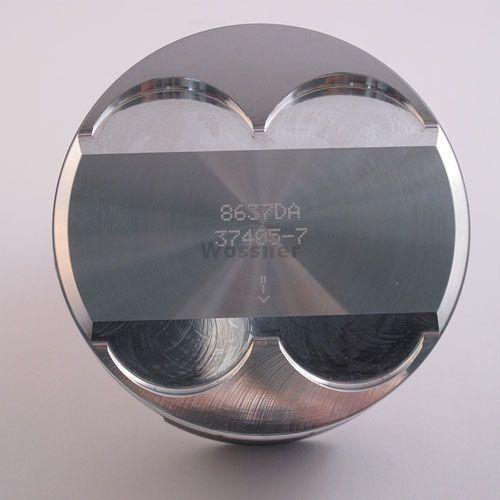

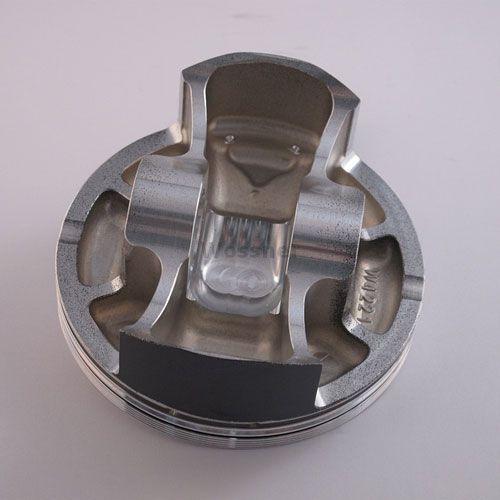

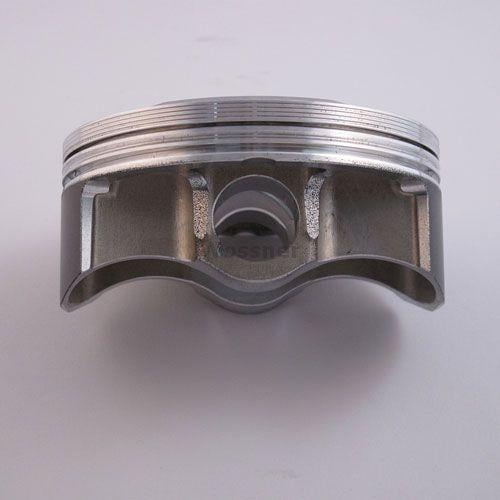

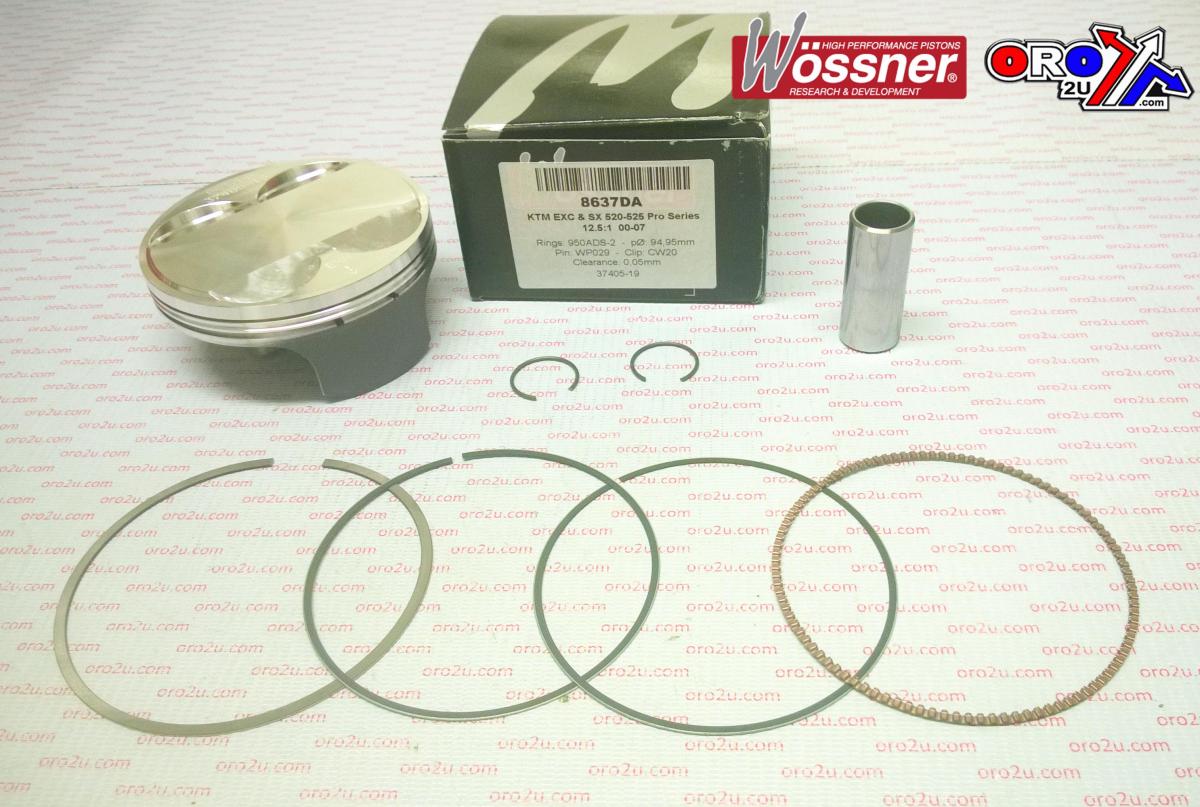

Piston Kit KTM 520 525 Exc SX, Wossner 8637DA KTM 00-09 Hc 59030007000

Piston Kit KTM 520 525 Exc SX, Wossner 8637DA KTM 00-09 Hc 59030007000. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit KTM 520 525 Exc SX, Wossner 8637DA KTM 00-09 Hc 59030007000
• Part number: 56-W216+00A.WO
• Brand: Wossner
• High-compression forged piston for increased performance
• Optimized heat transfer for efficient combustion chamber performance
• Elliptical design for even thrust load distribution and reduced piston collapse
• Manufactured in Germany
• Bore Size: 95.00mm
• Actual Bore Diameter: 94.95mm
• Displacement: 510 cm³
• Stroke: 72.00mm
• Clearance: 0.05mm
• Wossner Compression Ratio: 12.50:1
• OEM Compression Ratio: 11.00:1
• Dome Volume: +4.60 cm³
• Compression Height: 23.50mm
• Lock Part Number: CW20
• Pin Part Number: WP029
• Ring Set Part Number: 950ADS-2
• Cross-Reference OEM Part Numbers
• 59030007000

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 520cc — 2000–2002
• KTM EXC 520cc — 2000–2002
• KTM XC 525cc — 2008–2012
• KTM SM R 525cc — 2004–2005
• KTM EXC 525cc — 2003–2007
• BETA RR 525cc — 2005–2009
• KTM SX 525cc — 2003–2007
• KTM EXC 525cc — 2003–2010
• KTM SX 525cc — 2003–2010

Match your exact make, model, year and specification before ordering.
