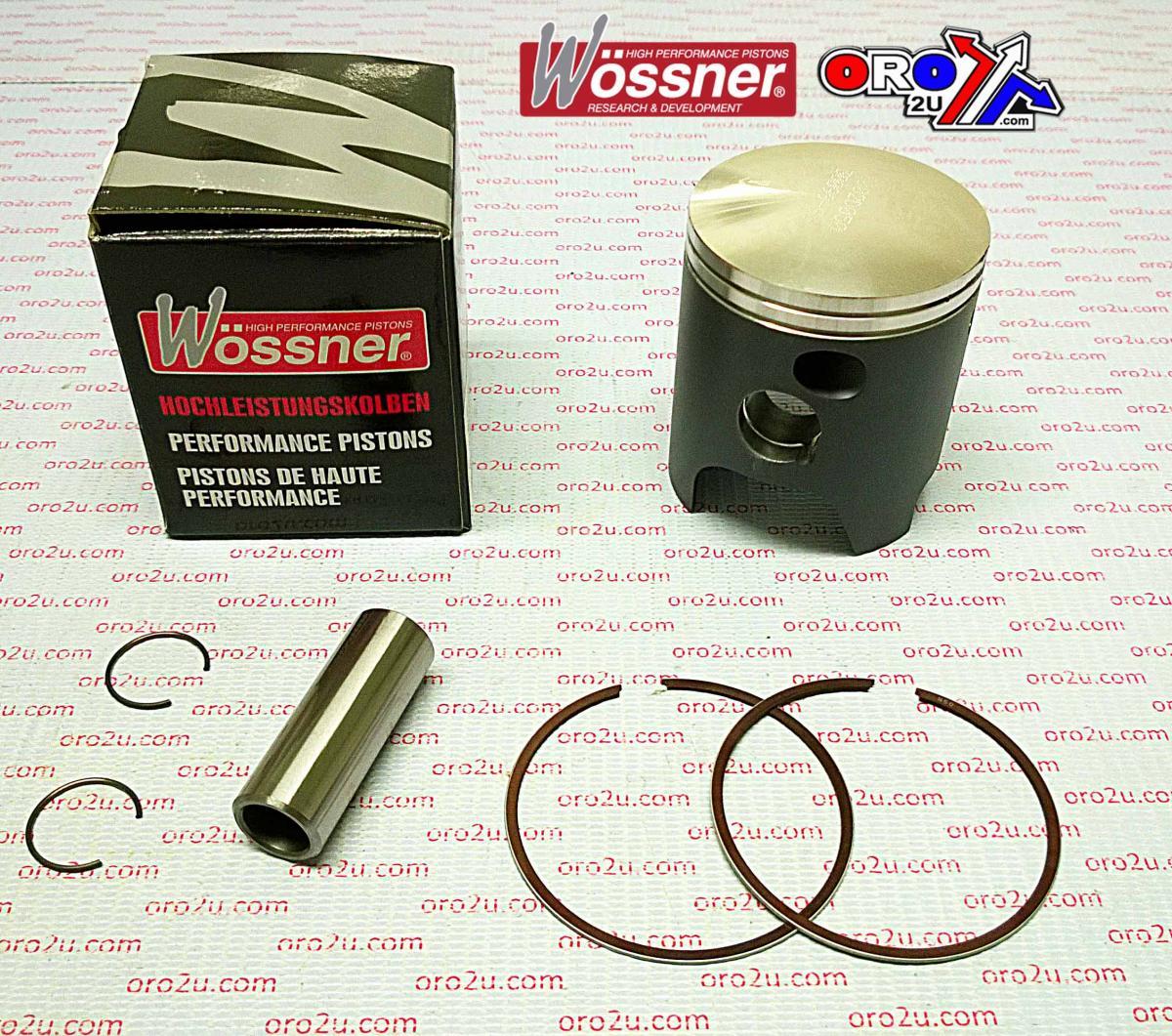

Piston Kit 88-08 DTR125 56.00, Forged Wossner 8002DA

Piston Kit 88-08 DTR125 56.00, Forged Wossner 8002DA. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 88-08 DTR125 56.00, Forged Wossner 8002DA
• Part number: 56-W224.000.WO
• Brand: Wossner
• Forged piston for increased strength and durability
• Optimized heat transfer for efficient combustion chamber performance
• Elliptical design for even thrust load distribution and reduced piston collapse
• Manufactured in Germany
• Bore Size: 56.00mm
• Actual Bore Diameter: 55.94mm
• Displacement: 124 cm³
• Stroke: 50.70mm
• Clearance: 0.06mm
• Wossner Compression Ratio: 2-stroke
• OEM Compression Ratio: 2-stroke
• Compression Height: 29.90mm
• Lock Part Number: CW16
• Pin Part Number: WP036
• Ring Set Part Number: RSB5600 x 2

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA DT X 125cc — 1991–2006
• YAMAHA DT R 125cc — 1991–2006
• YAMAHA DT E 125cc — 1991–2006
• KTM LC2 125cc — 1997–2000
• YAMAHA DT R 125cc — 1988–2006
• YAMAHA DTX EURO 125cc — 1999–2006
• YAMAHA DTX EURO 125cc — 1991–1998
• YAMAHA DTRE R 125cc — 1991–2006
• YAMAHA DTR 125cc — 1999–2006
• YAMAHA DTR 125cc — 1991–1998
• YAMAHA DT 125cc — 1991–2006

Match your exact make, model, year and specification before ordering.
