Piston Kit 08-12 KFX450 96.00, Forged Wossner 8709DB

Piston Kit 08-12 KFX450 96.00, Forged Wossner 8709DB. Find the product specifications and compatibility information below.

Product details

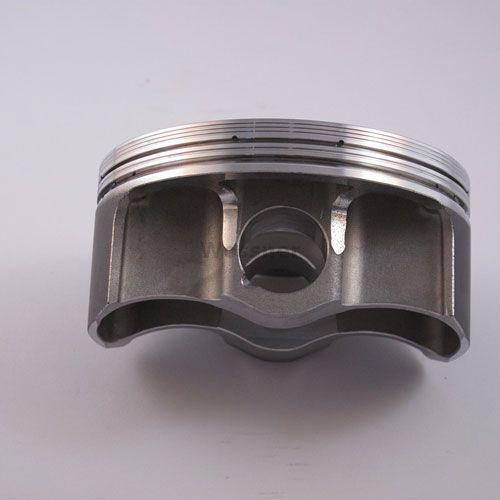

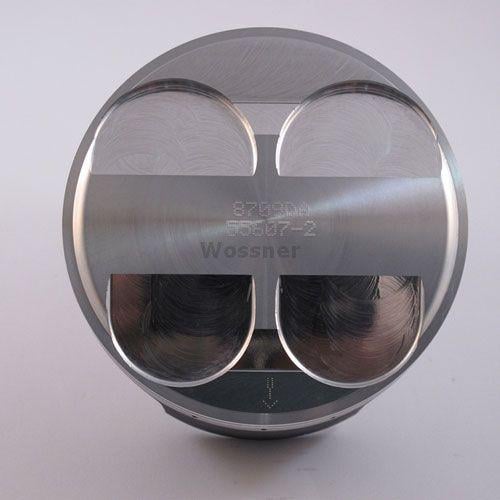

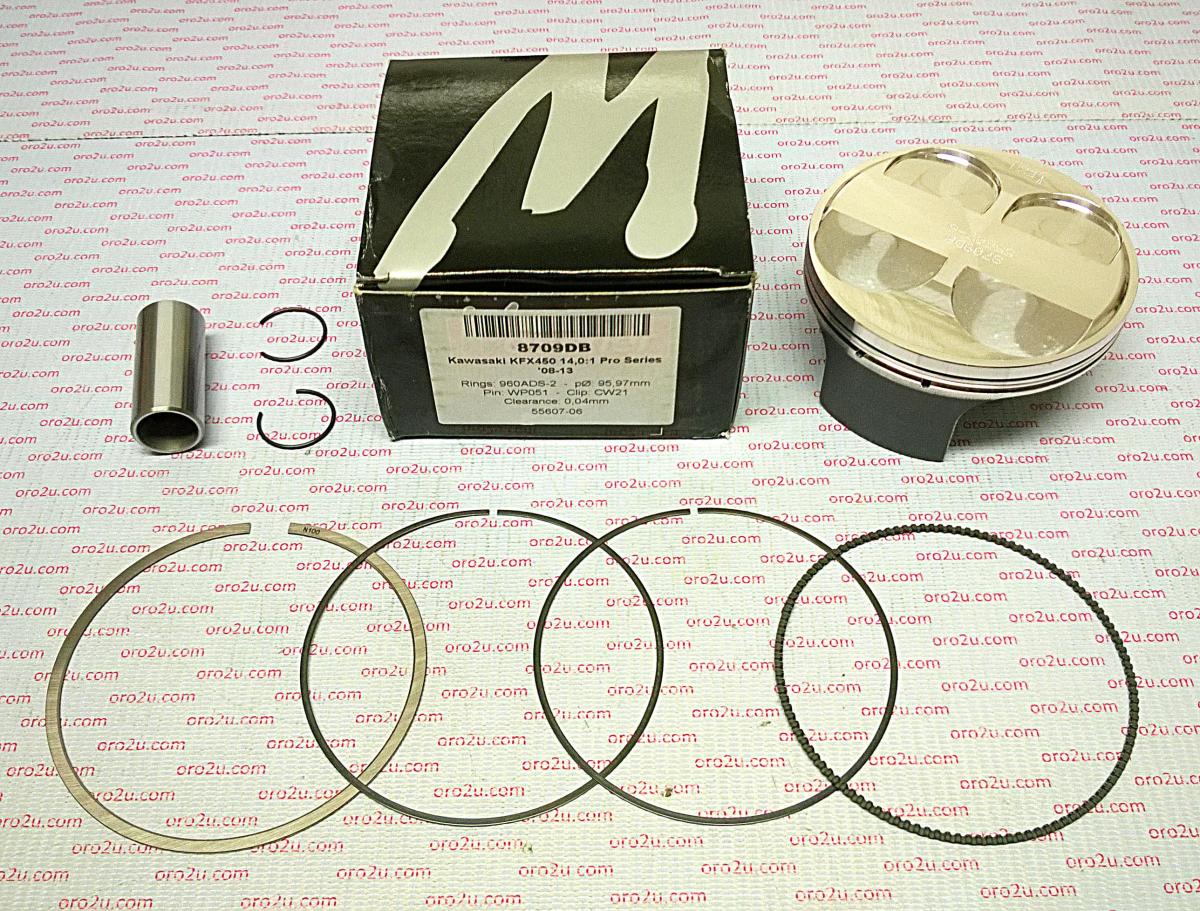

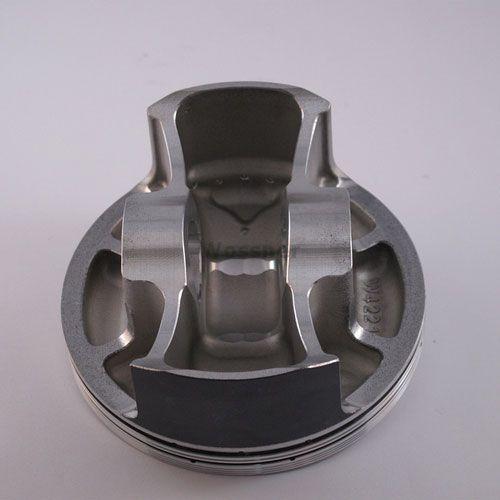

• Product: Piston Kit 08-12 KFX450 96.00, Forged Wossner 8709DB
• Part number: 56-W225.B.WO
• Brand: Wossner
• High-compression Pro Series forged piston
• Optimized heat transfer for efficient combustion chamber performance
• Elliptical design for even thrust load distribution and reduced piston collapse
• Manufactured in Germany
• Bore Size: 96.01mm
• Actual Bore Diameter: 95.97mm
• Displacement: 449 cm³
• Stroke: 62.10mm
• Clearance: 0.04mm
• Wossner Compression Ratio: 14.00:1
• OEM Compression Ratio: 12.50:1
• Dome Volume: +2.10 cm³
• Compression Height: 26.40mm
• Lock Part Number: CW21
• Pin Part Number: WP051
• Ring Set Part Number: 960ADS-2
• Rod Part Number: P4019

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KFX R 450cc — 2008–2014

Match your exact make, model, year and specification before ordering.
