N.l.a Offer Std Comp 56-W4835+00A.WO, Piston Kit 06-11 YFZ450 95 Hc, Forged Wossner 8657DA

N.l.a Offer Std Comp 56-W4835+00A.WO, Piston Kit 06-11 YFZ450 95 Hc, Forged Wossner 8657DA. Find the product specifications and compatibility information below.

Product details

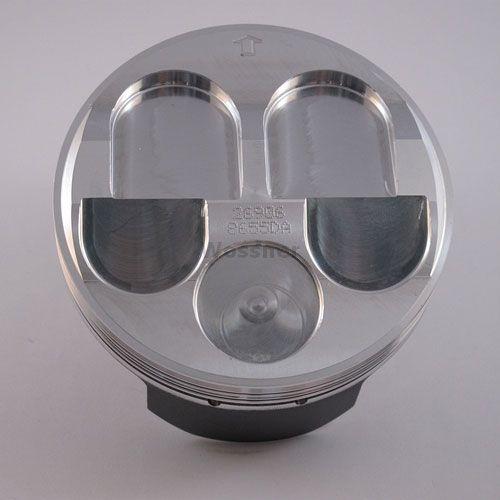

• Product: N.l.a Offer Std Comp 56-W4835+00A.WO, Piston Kit 06-11 YFZ450 95 Hc, Forged Wossner 8657DA
• Part number: 56-W235.WO.A
• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany
• Bore: 95.00mm
• Diameter: 94.95mm
• Display (cm³): 449
• Stroke (mm): 63.40
• Clearance (mm): 0.05
• Wossner Compression Ratio: 13.50:1
• OEM Compression Ratio: 11.40:1
• Dome Volume (cm³): -1.60
• Compression Height (mm): 25.10
• Cross-Reference OEM Part Numbers
• Lock P/N: CW20
• Pin P/N: WP038
• Ring Set P/N: 950ADS-2
• Rod P/N: P4030

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ 450cc — 2006–2017

Match your exact make, model, year and specification before ordering.
