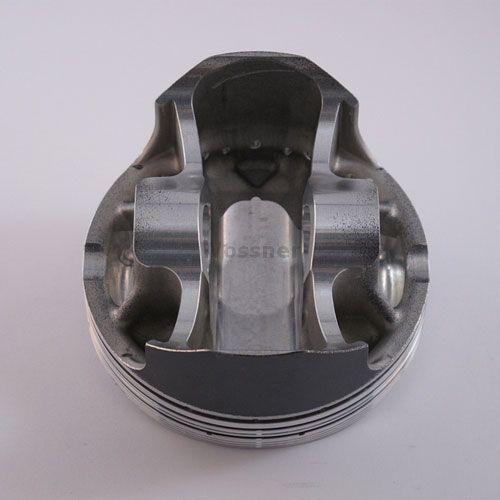

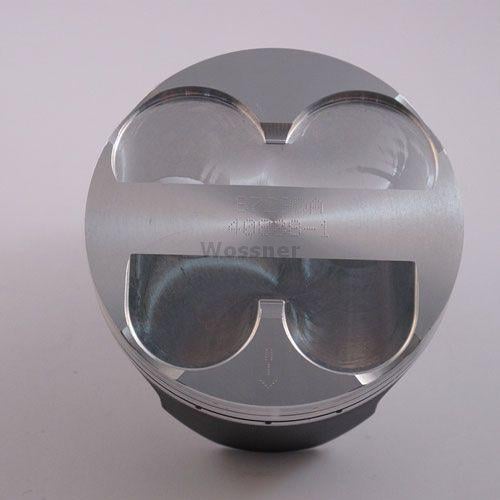

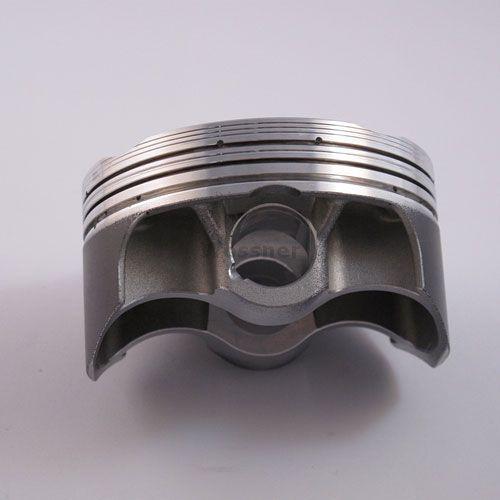

Piston Kit 08-12 WR250X 77.00, Comp. 13.5:1 Wossner 8729DB

Piston Kit 08-12 WR250X 77.00, Comp. 13.5:1 Wossner 8729DB. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 08-12 WR250X 77.00, Comp. 13.5:1 Wossner 8729DB
• Part number: 56-W238+00B.WO
• Brand: Wossner
• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany
• Bore: 77.01mm
• Diameter: 76.97mm
• Display (cm³): 249
• Stroke (mm): 53.60
• Clearance (mm): 0.04
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 11.80:1
• Dome Volume (cm³): -5.90
• Compression Height (mm): 22.90
• Cross-Reference OEM Part Numbers
• Lock P/N: CW17
• Pin P/N: WP083
• Ring Set P/N: 770XAS-2

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA WR X 250cc — 2008–2012

Match your exact make, model, year and specification before ordering.
