Piston Kit YZF Wrf 250 3-RING, Wossner 8712DB 08-13 77mm

Piston Kit YZF Wrf 250 3-RING, Wossner 8712DB 08-13 77mm. Find the product specifications and compatibility information below.

Product details

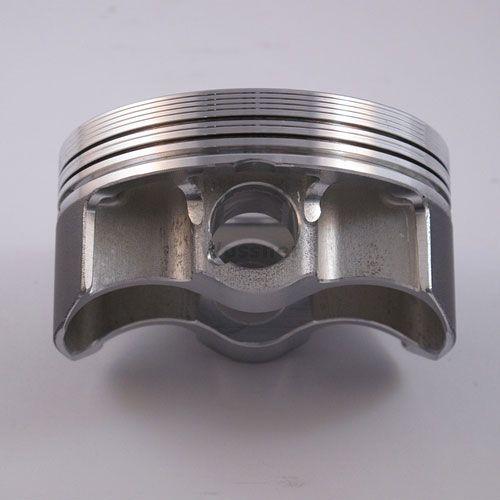

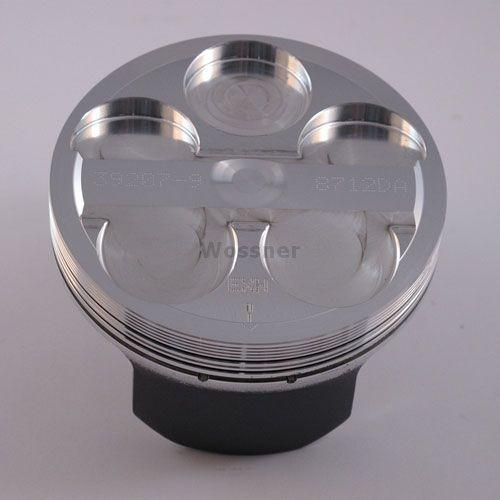

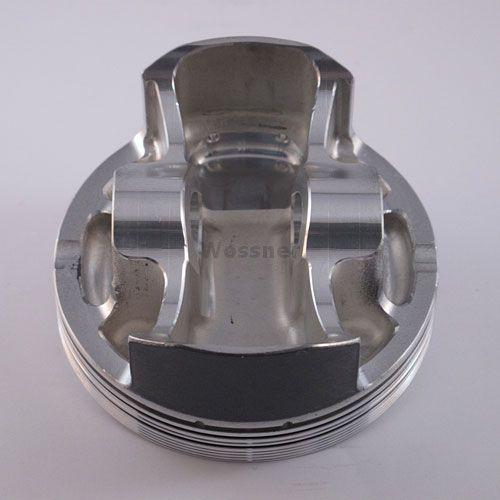

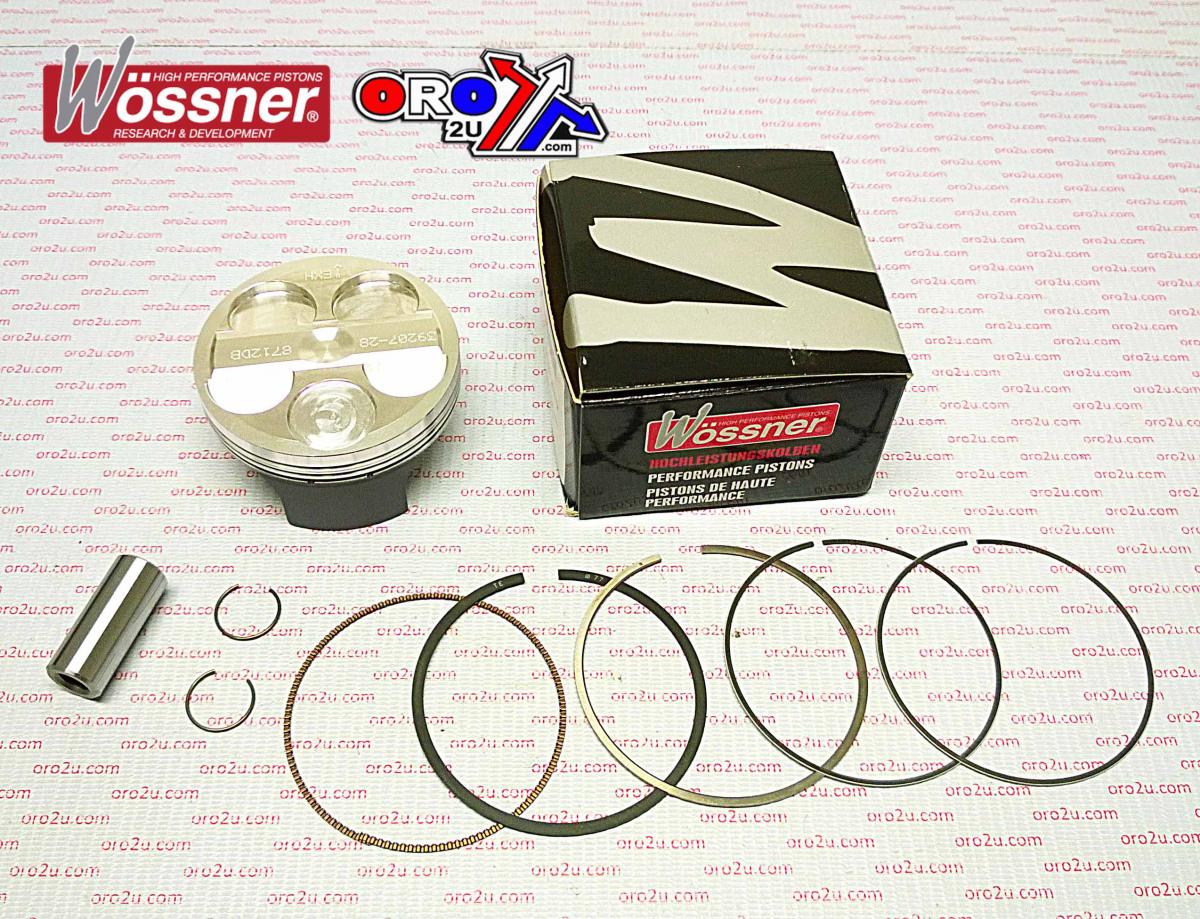

• Product: Piston Kit YZF Wrf 250 3-RING, Wossner 8712DB 08-13 77mm
• Part number: 56-W240+00B.WO
• Brand: Wossner
• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• 3-ring piston design for durability
• Manufactured in Germany
• Bore: 77.01mm
• Diameter: 76.97mm
• Display (cm³): 249
• Stroke (mm): 53.60
• Clearance (mm): 0.04
• Wossner Compression Ratio: OEM
• OEM Compression Ratio: 13.50:1
• Dome Volume (cm³): -2.90
• Compression Height (mm): 22.20
• Cross-Reference OEM Part Numbers
• Lock P/N: CW16
• Pin P/N: WP059
• Ring Set P/N: 770XAS-2
• Rod P/N: P4005

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZF 250cc — 2008–2013
• YAMAHA WRF 250cc — 2008–2013

Match your exact make, model, year and specification before ordering.
