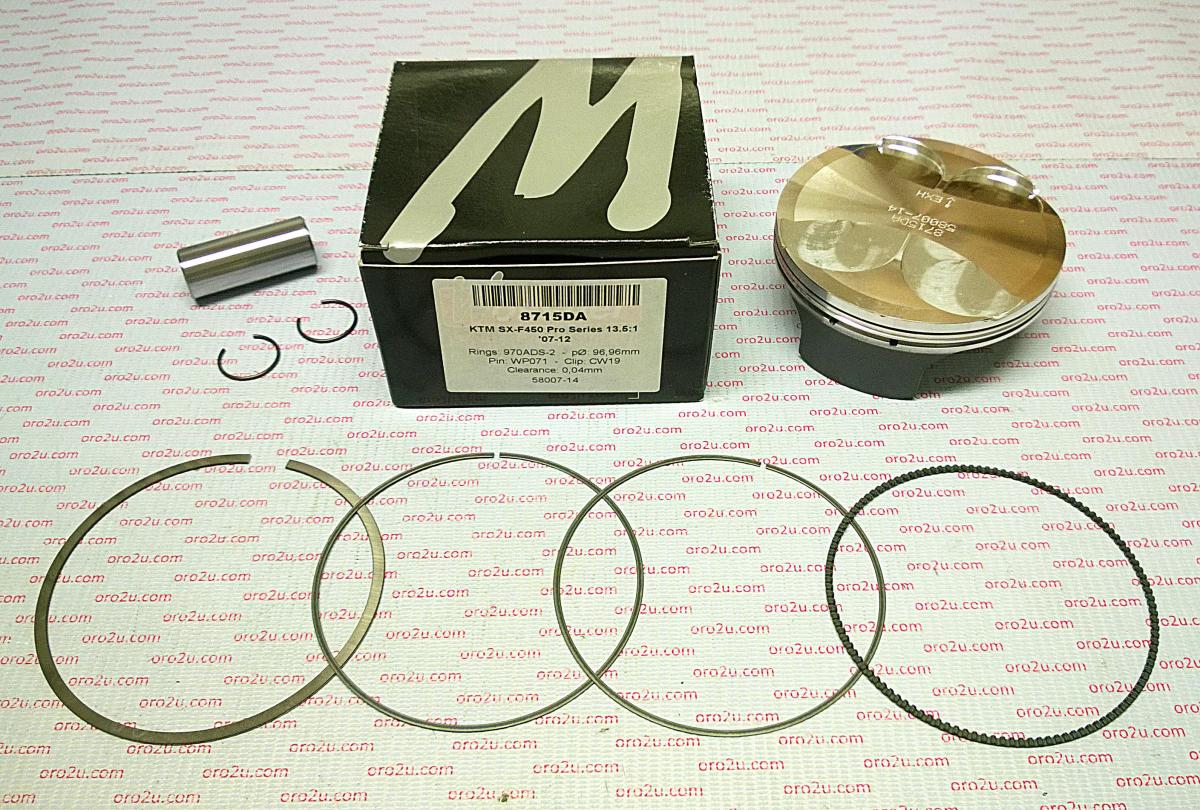

Piston Kit SX-F450 KTM Hc 97, Forged Wossner 8715DA 77330007500

Piston Kit SX-F450 KTM Hc 97, Forged Wossner 8715DA 77330007500. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit SX-F450 KTM Hc 97, Forged Wossner 8715DA 77330007500
• Part number: 56-W244.A.WO
• Brand: Wossner
• Forged construction for superior strength
• High-compression ratio for increased performance
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany
• Bore: 97.00mm
• Diameter: 96.96mm
• Display (cm³): 449
• Stroke (mm): 68.80
• Clearance (mm): 0.04
• Wossner Compression Ratio: 13.50:1
• OEM Compression Ratio: 12.50:1
• Dome Volume (cm³): +1.10
• Compression Height (mm): 21.30
• Cross-Reference OEM Part Numbers
• Lock P/N: CW19
• Pin P/N: WP071
• Ring Set P/N: 970ADS-2
• Connecting Rod Kit P/N: P4017
• OEM References: 77330007500, 4938M09700

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX ATV 450cc — 2009–2010
• KTM SX F 450cc — 2007–2012
• KTM SM R 450cc — 2008–2012
• KTM SX 450cc — 2009–2010

Match your exact make, model, year and specification before ordering.
