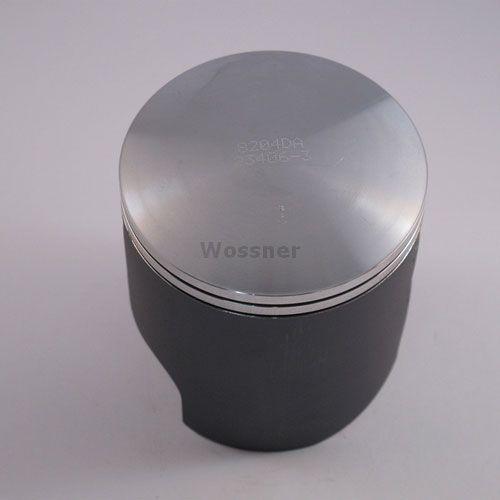

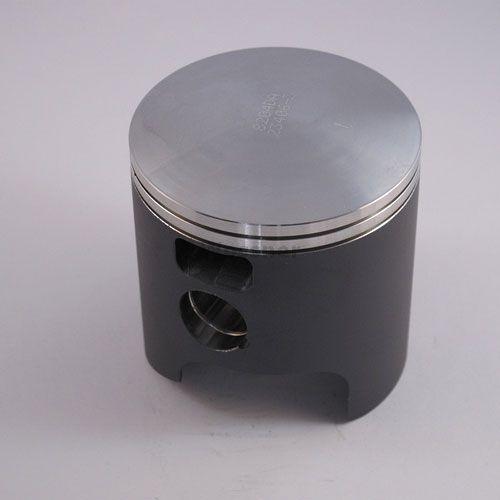

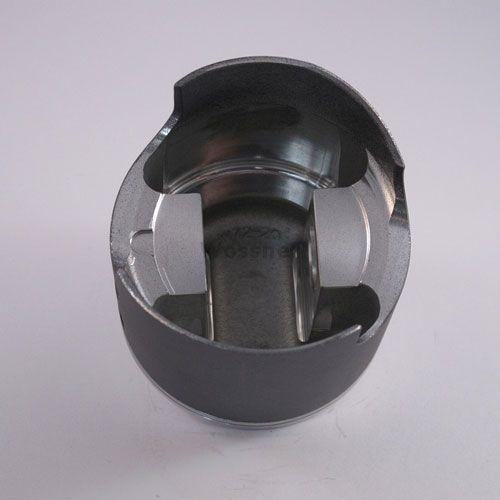

Piston Kit 73-81 TS250 72.00, Forged Wossner 8204D200

Piston Kit 73-81 TS250 72.00, Forged Wossner 8204D200. Find the product specifications and compatibility information below.

Product details

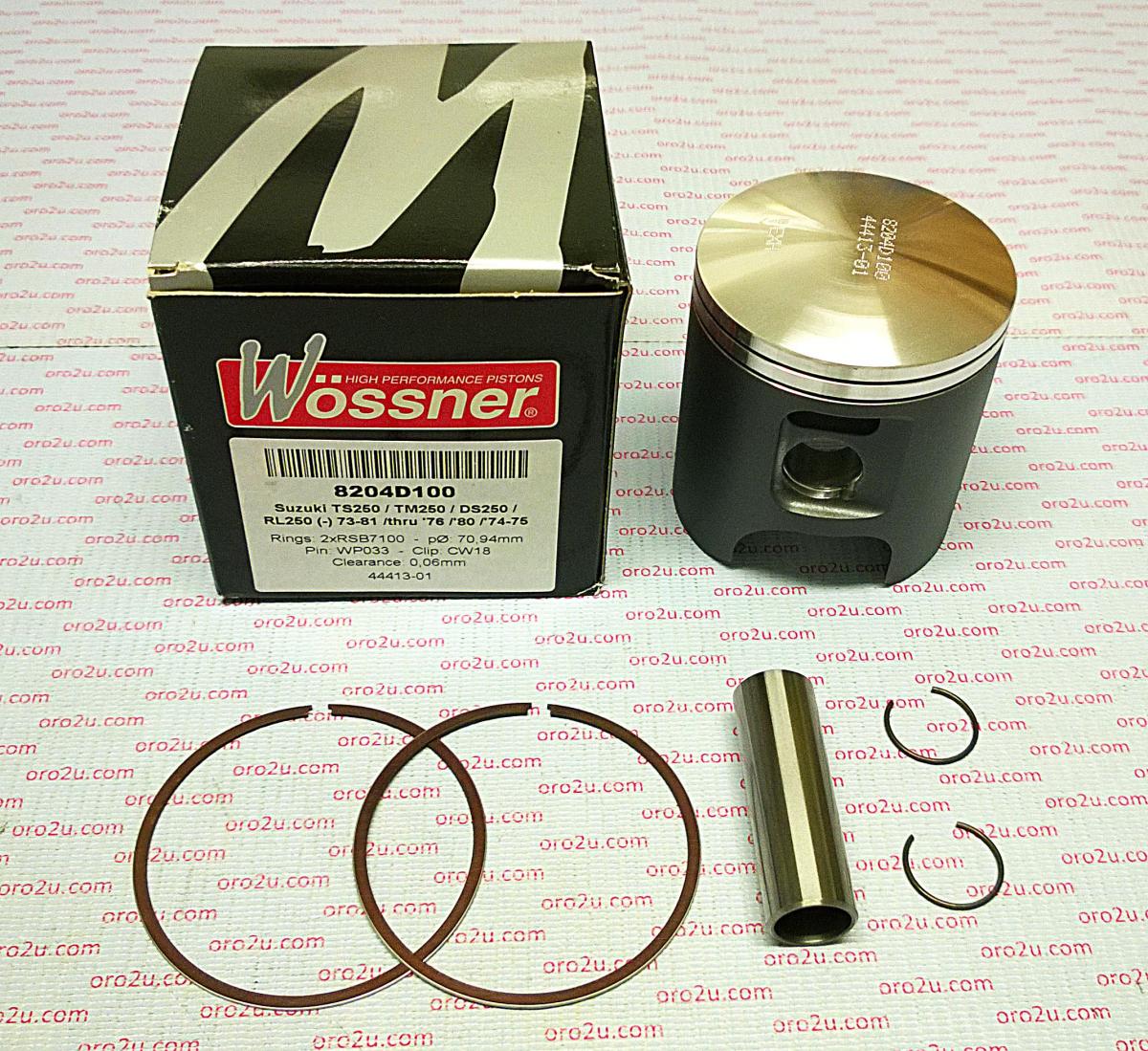

• Product: Piston Kit 73-81 TS250 72.00, Forged Wossner 8204D200
• Part number: 56-W249.200.WO
• Brand: Wossner
• Piston Kit 72.00mm Bore 71.94 Wossner 8204D200 (+2.00)
• TS250 1973-1981,
• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany
• Part No. 56-W249.200.WO (www.fdyperformance.com)
• Lock P/N CW18
• Pin P/N WP033
• Ring Set P/N RSB7200 x 2
• Display (cm3) 249
• Hub stroke (mm) 64.00
• Clearance (mm) 0.06
• Wossner compression Ratio: 2 stroke
• OEM Compression ratio: 2 stroke
• Dome volume (cm3)
• Compression height (mm) 34.00
• Theorectical weight (G)

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI TS 250cc — 1986–1987
• SUZUKI TS 250cc — 1984–1985

Match your exact make, model, year and specification before ordering.
