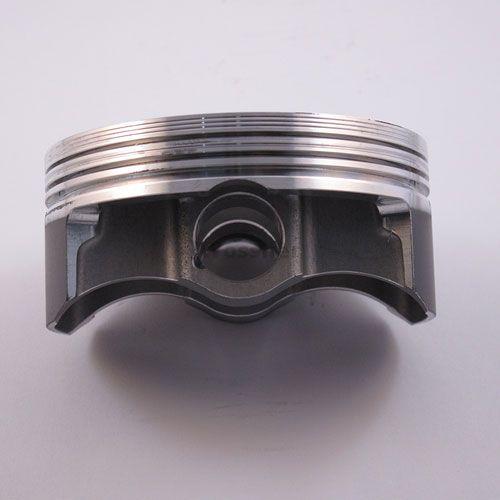

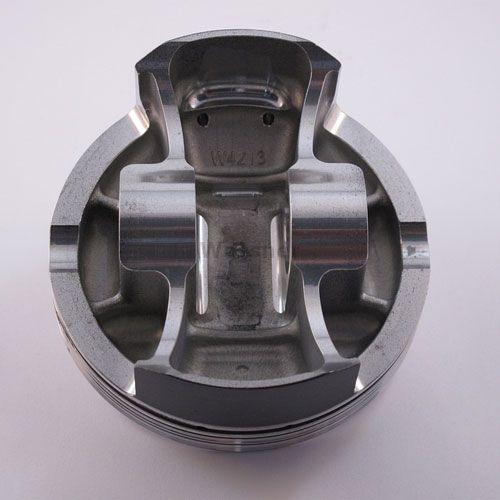

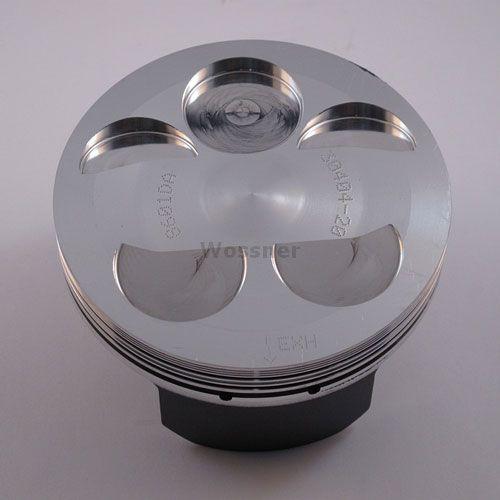

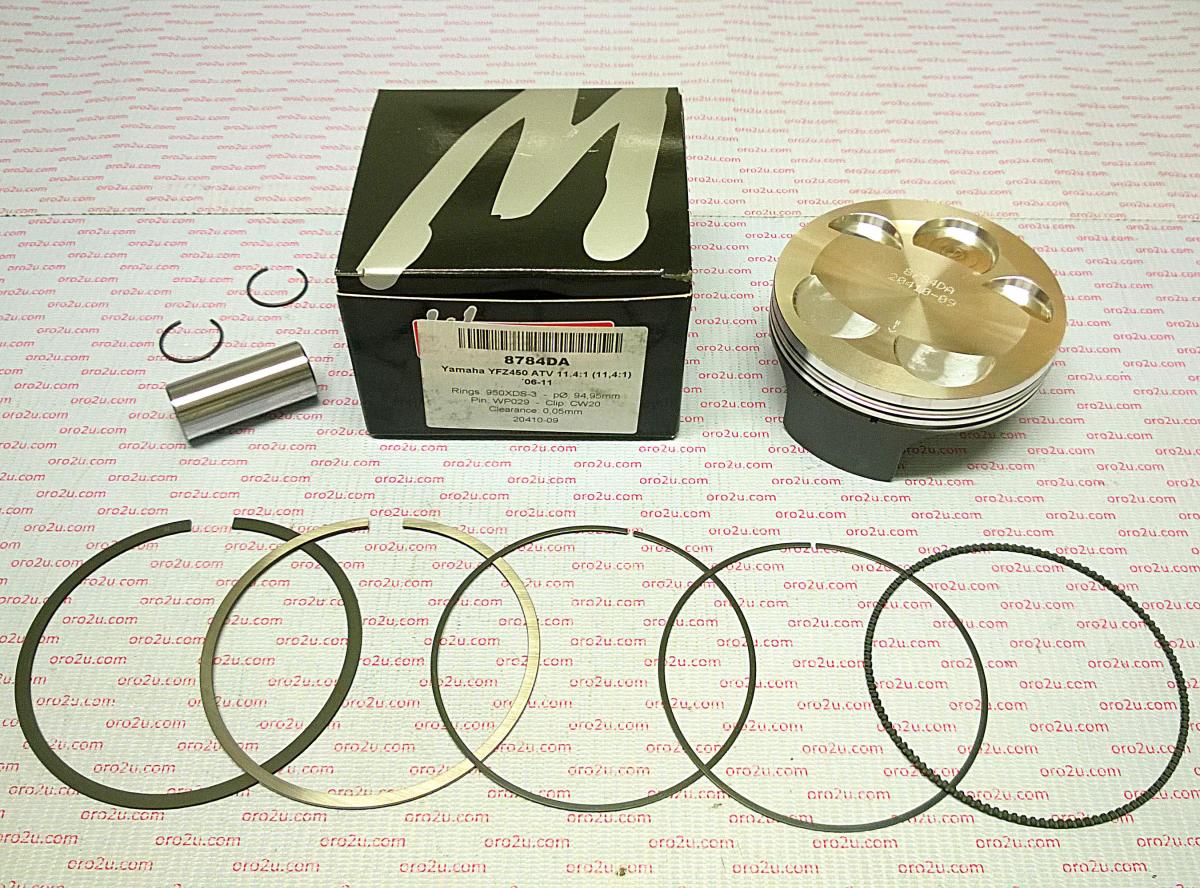

Piston Kit 06-13 YFZ450 94 B, Forged Wossner 8784DB

Piston Kit 06-13 YFZ450 94 B, Forged Wossner 8784DB. Find the product specifications and compatibility information below.

Product details

• Product: Piston Kit 06-13 YFZ450 94 B, Forged Wossner 8784DB
• Part number: 56-W250.B.WO
• Brand: Wossner
• Forged construction for superior strength
• Optimized heat transfer for efficient combustion
• Elliptical design for uniform load distribution
• Manufactured in Germany
• Bore: 95.01mm
• Diameter: 94.96mm
• Display (cm³): 449
• Stroke (mm): 63.40
• Clearance (mm): 0.05
• Wossner Compression Ratio: 11.60:1
• OEM Compression Ratio: 11.40:1
• Dome Volume (cm³): -8.50
• Compression Height (mm): 25.10
• Cross-Reference OEM Part Numbers
• Lock P/N: CW20
• Pin P/N: WP029
• Ring Set P/N: 950XDS

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ 450cc — 2006–2017

Match your exact make, model, year and specification before ordering.
